Setup screen

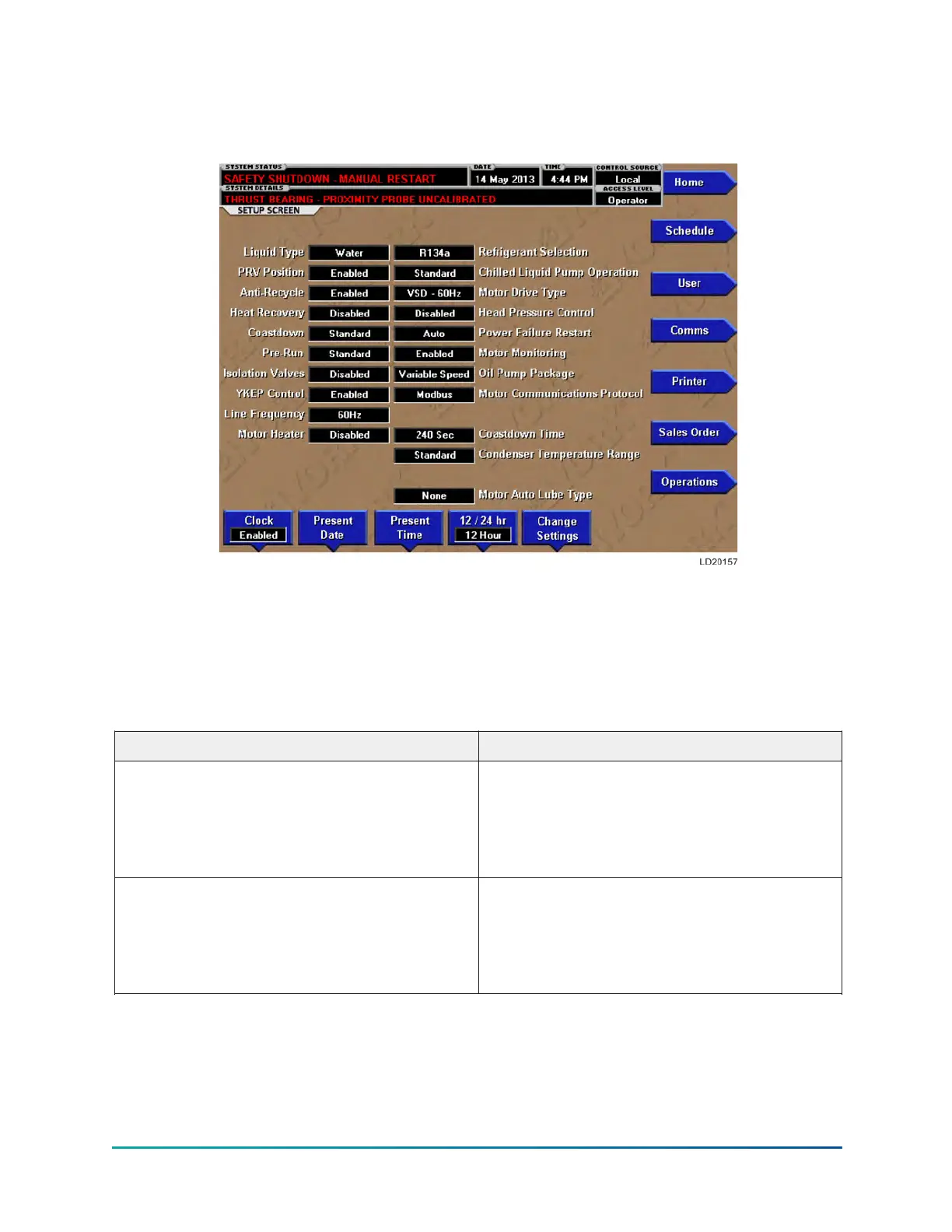

Figure 50: Setup screen
This screen is the top level of the general configuration parameters. It allows programming of
the time and date, along with specifications as to how the time will be displayed (12 or 24 hour
format). In addition, the chiller configuration, as determined by the state of the Microboard
Program Jumpers and Program Switches is displayed. A qualified Service Technician establishes this
configuration per the desired operation. This screen also serves as a gateway to more subscreens
for defining general system parameters.
Table 140: Display only
031-02430-001 and 031-03630-007 Microboard
Refrigerant selection
Displays R134a based upon the position of
SW1-2.
On = R-134A
Off = R-22
Liquid type
Displays Water or Brine based upon the position
of SW1-1.
On = Brine
Off = Water
YK-EP Style B Centrifugal Chiller144
