Zebra TC56 Integrator Guide

3 - 40 TC56 Touch Computer Integrator Guide for Android Version 6.0.1

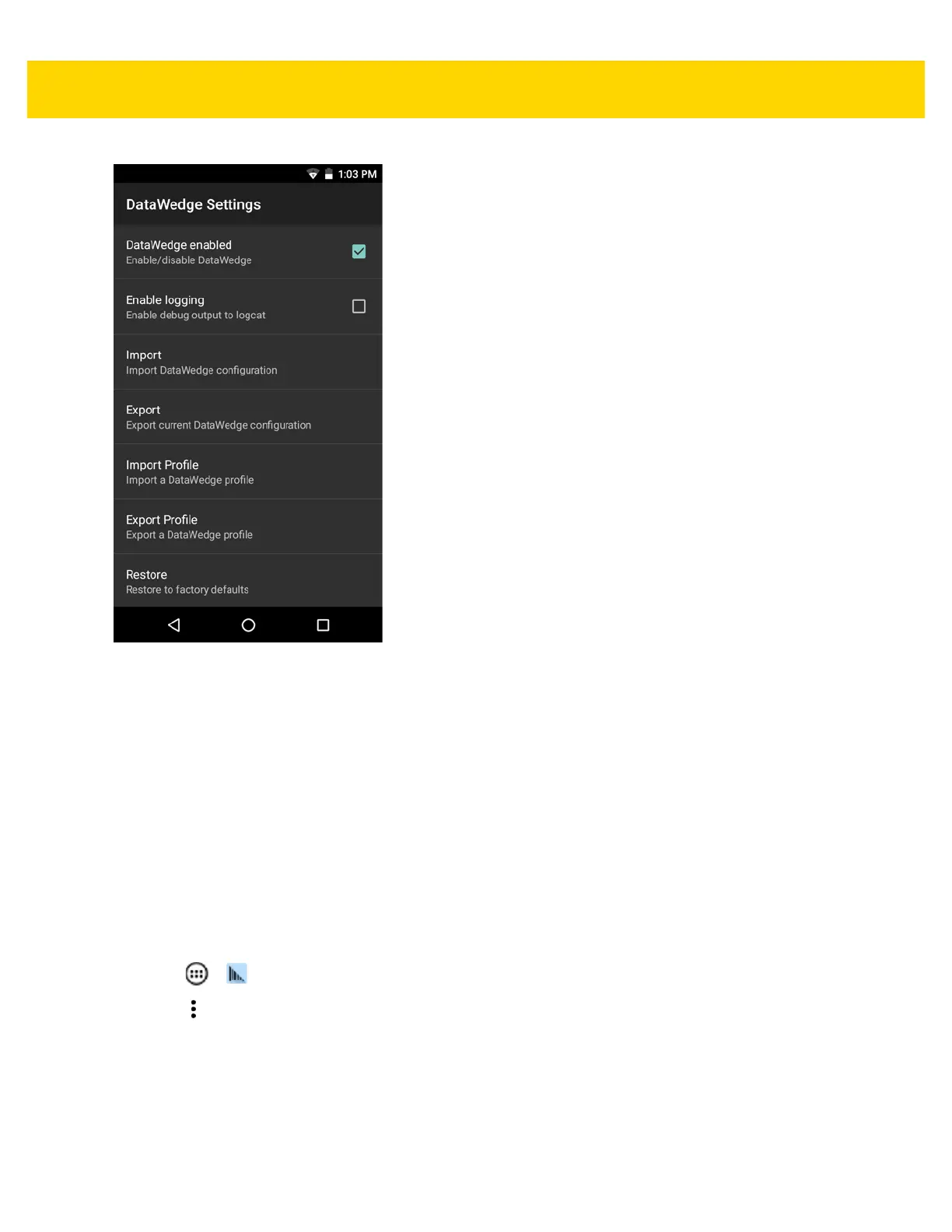

Figure 3-27 DataWedge Settings Window
• DataWedge enabled - Enables or disables DataWedge. To disable DataWedge uncheck this option.
• Enable logging - Enables or disables debug output file to logcat. To enable logging check this option.
• Import - allows import of a DataWedge configuration file. The imported configuration replaces the current
configuration.
•Export - allows export of the current DataWedge configuration.
• Import Profile - allows import of a DataWedge profile file.
• Export Profile - allows export of a DataWedge profile.
•Restore - return the current configuration back to factory defaults.
Importing a Configuration File
1. Copy the configuration file to the microSD card /Android/data/com.symbol.datawedge/files folder.
2. Touch > .
3. Touch .
4. Touch Settings.
5. Touch Import.
6. Touch filename to import.
The configuration file (datawedge.db) is imported and replaces the current configuration.

Zebra TC56 Specifications

General

Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	0.016 GB
Internal memory	0.002 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	128 GB
Processor family	Qualcomm
Processor frequency	1.8 GHz
Operating system version	6.0
Operating system installed	Android
RFID reader	-
Certification	WFA (802.11n, 802.11ac, WMM-AC, Voice Enterprise, WMM-PS), Miracast WFA (Mobile AP / Personal Hotspot)
Product color	Black, Silver
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Battery capacity	4300 mAh
Data network	CDMA, EDGE, GPRS, GSM, HSPA, HSPA+, LTE, UMTS
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
GSM bands supported	850, 900, 1800, 1900 MHz
Security algorithms	AES, EAP-TTLS, FIPS 140-2, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA2, WPA2-Enterprise
WCDMA bands supported	850, 1900 MHz
Second camera	No
Rear camera resolution (numeric)	13 MP
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	155 mm
Width	75.5 mm
Height	18.6 mm
Weight	249 g
