Zebra TC56 Integrator Guide

6 - 16 TC56 Touch Computer Integrator Guide for Android Version 6.0.1

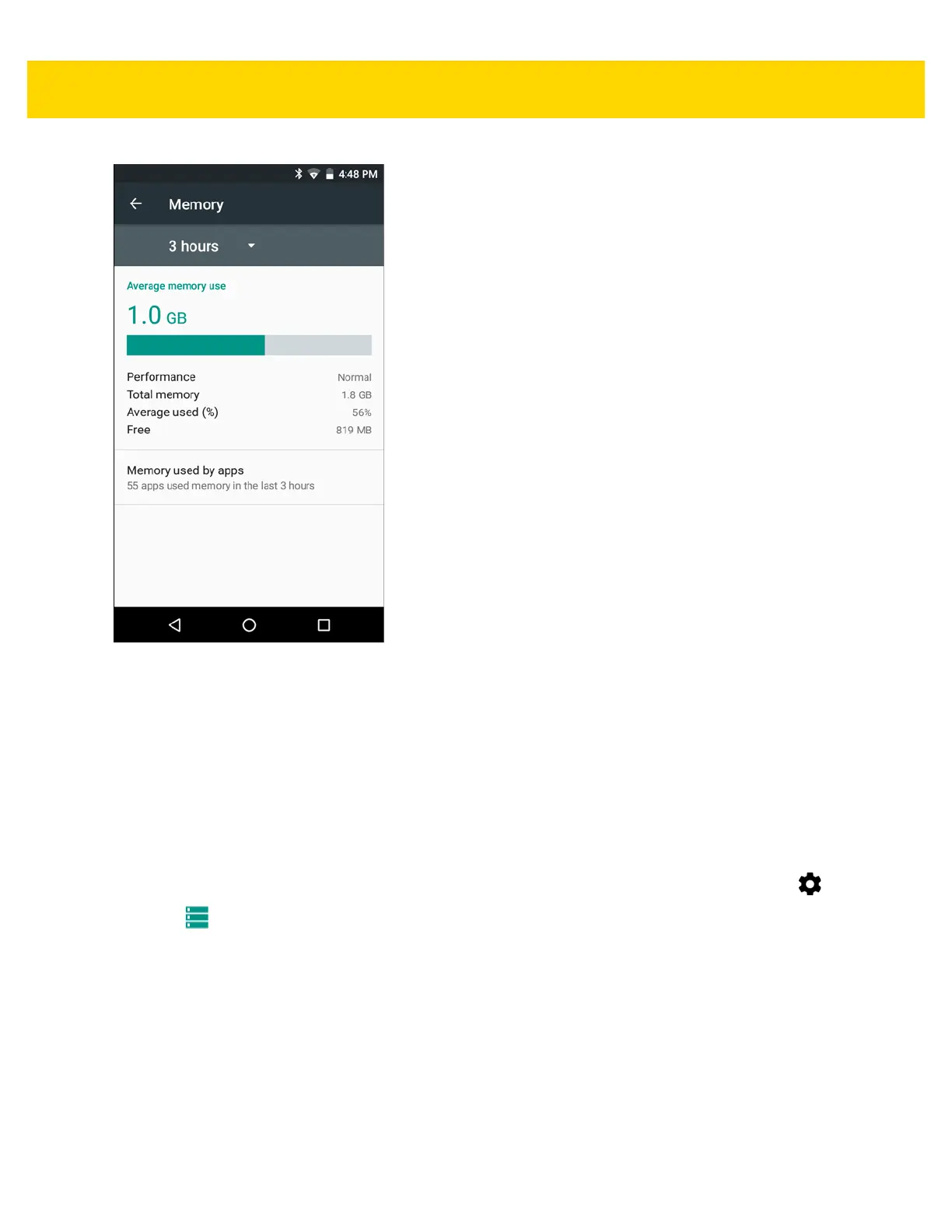

Figure 6-6 Memory Screen
The screen displays the amount of used and free RAM.
Internal Storage
The device has internal storage. The internal storage content can be viewed and files copied to and from when the
device is connected to a host computer. Some applications are designed to be stored on the internal storage rather
than in internal memory.
To view the used and available space on the internal storage:
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Storage & USB.

Zebra TC56 Specifications

General

Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	0.016 GB
Internal memory	0.002 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	128 GB
Processor family	Qualcomm
Processor frequency	1.8 GHz
Operating system version	6.0
Operating system installed	Android
RFID reader	-
Certification	WFA (802.11n, 802.11ac, WMM-AC, Voice Enterprise, WMM-PS), Miracast WFA (Mobile AP / Personal Hotspot)
Product color	Black, Silver
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Battery capacity	4300 mAh
Data network	CDMA, EDGE, GPRS, GSM, HSPA, HSPA+, LTE, UMTS
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.1
GSM bands supported	850, 900, 1800, 1900 MHz
Security algorithms	AES, EAP-TTLS, FIPS 140-2, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA2, WPA2-Enterprise
WCDMA bands supported	850, 1900 MHz
Second camera	No
Rear camera resolution (numeric)	13 MP
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	155 mm
Width	75.5 mm
Height	18.6 mm
Weight	249 g
