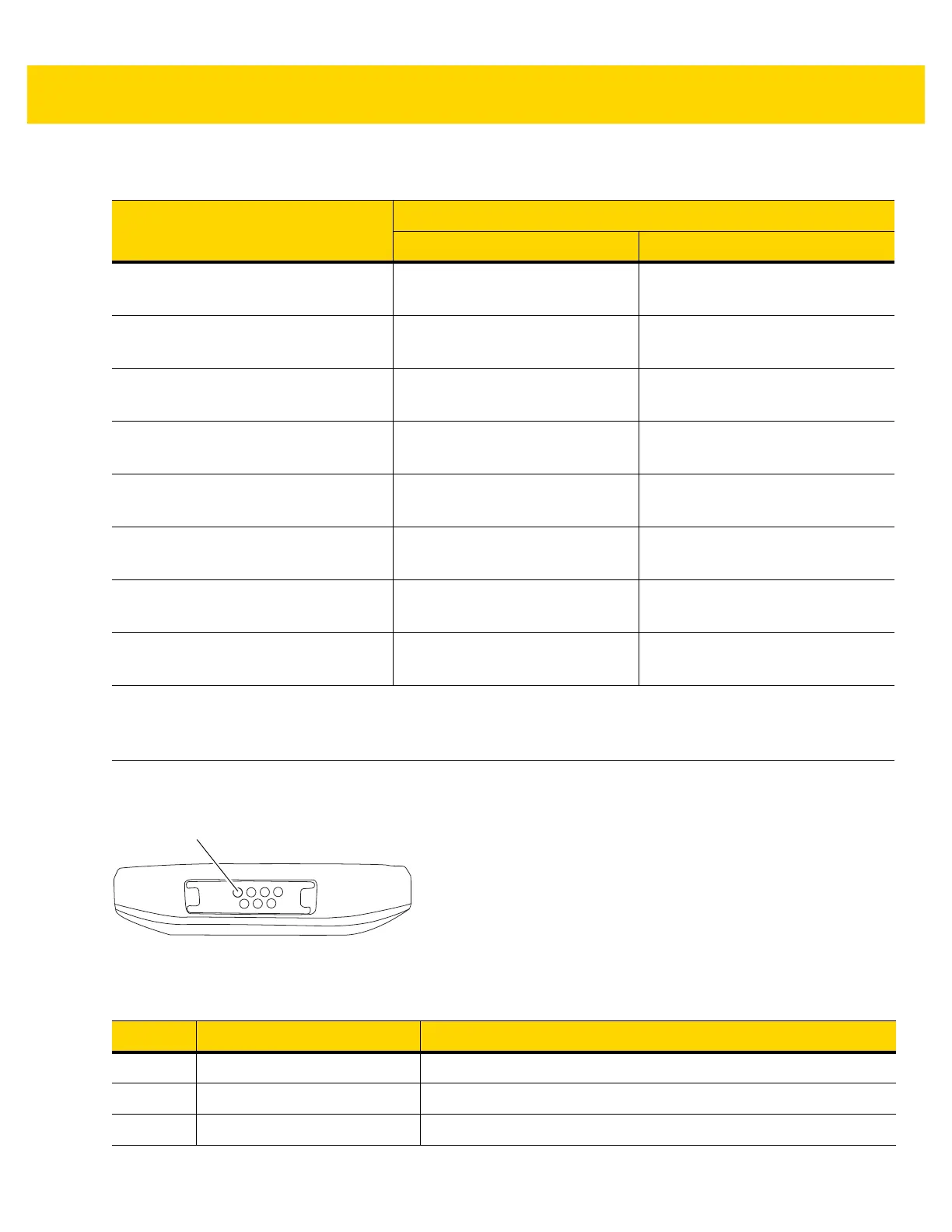

Technical Specifications A - 5
I/O Connector Pin-Outs
Figure A-1 I/O Connector
Table A-3 SE4710 Decode Distances
Symbol Density/ Bar Code Type
Typical Working Ranges
Near Far
4 mil Code 39 3.3 in.
8.4 cm
8.8 in.
22.4 cm
5.0 mil Code 128 2.8 in.
7.1 cm
8.2 in.
20.8 cm
5 mil Code 39 2.0 in.
5.08 cm
13.5 in.
34.3 cm
5 mil PDF417 3.1 in.
7.9 cm
8.4 in.
21.3 cm
10 mil Data Matrix 2.9 in.
7.4 cm
10.1 in.
25.7 cm
100% UPCA 1.8 in.
4.6 cm*
26.0 in.
66.0 cm
20 mil Code 39 2.0 in.
5.08 cm*
30.0 in.
76.2 cm
20 mil QR Code 3.2 in.
8.1 cm
15.8 in.
40.1 cm
*Limited by width of bar code in field of view.
Notes: Photographic quality bar code at 15° tilt pitch angle under 30 fcd ambient illumination.
Distances measured from front edge of scan engine chassis.
Table A-4 I/O Connector Pin-Outs
Pin Signal Description
1 VBUS USB Power Input
2D- USB Data-
3 CC USB Type C Control
