1-FRAME&ELECTRONIC COMPONENT
9
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1184300-009000 ZT350-T wiring harness assembly-A 1
2 1224300-093000 Reverse buckle Velcro strap (20×150mm) 2
3 1224300-110000 Reverse buckle Velcro strap (20×200mm) 7
4 1224300-111000 Reverse buckle Velcro strap (20×300mm) 3
5 1224100-037000 Grade 0 flame retardant tie (black 3.6×295) 1
PROCEDURE:
●Main harness
Unplug all electrical components connected to the main harness. Different connector modes are different, and the
operation is based on the actual situation. A slotted screwdriver, pliers, scissors and other tools may be needed to
assist.
It is necessary to untie three ties ⑷ at the front ① and ②, two ties ⑵ at the front ①, cut the tie ⑸ at the left
cover, and untie seven ties ⑶ at the left and right sides of the body.
●ECU
Find the ECU plug at the rear of the frame, press the anti release buckle at ③, rotate clockwise and pull out the
plug. Tidy up the fuse box and harness and take out the ECU⑹.
CAUTION：
●It must be dismantled them first, such as the cushion, fuel tank component,sider cover, tail dress and so on.
●In order to avoid the improper contact of the bending electrical parts, please pay attention to the direction and
angle of force when plugging the electrical parts, so as to avoid the improper contact of the bending electrical
parts. No violent operation.
●Please notice the limit of the bracket when dismantling dump switch sleeve, beware of hurting your fingers.

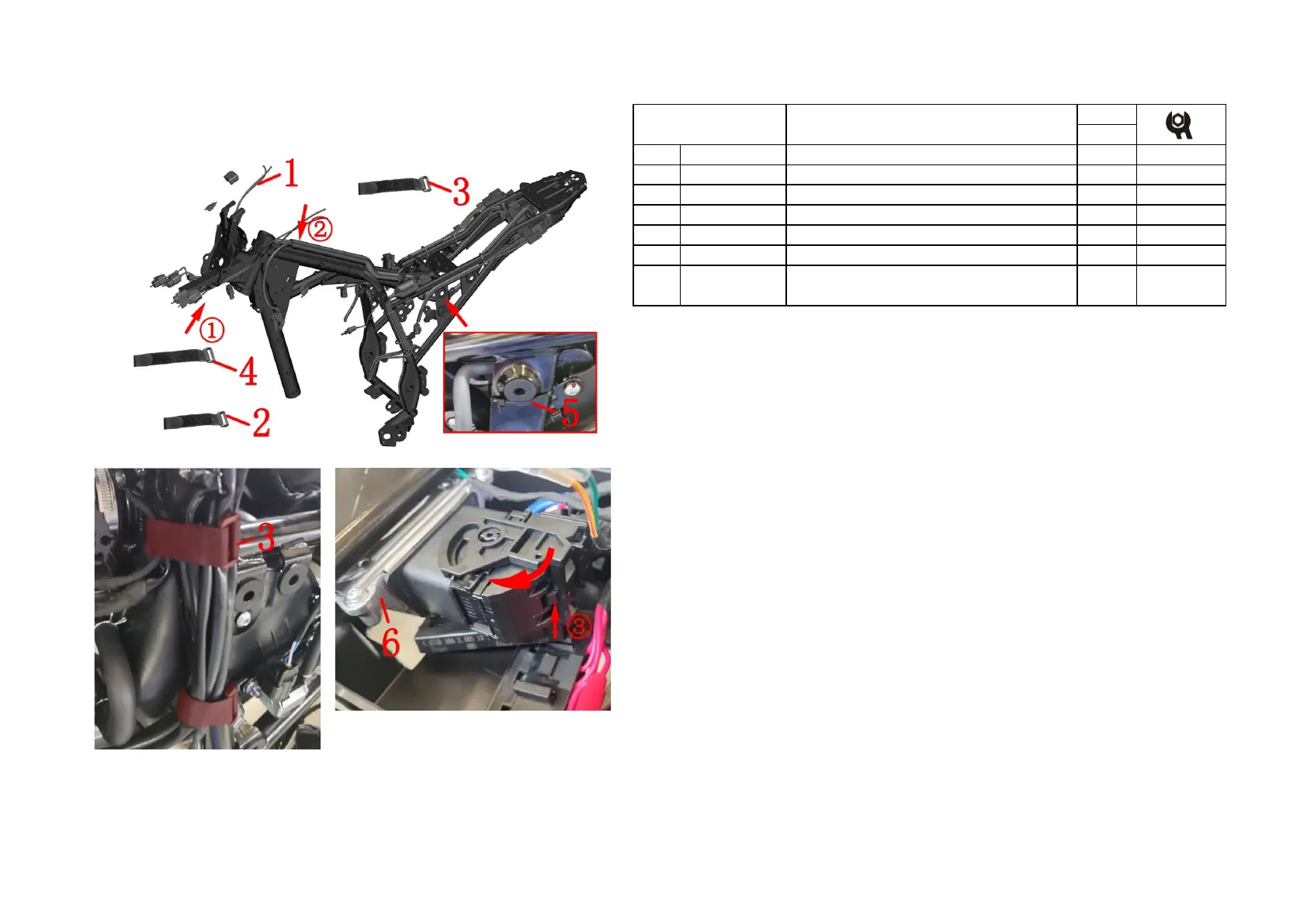

Fig.1 FRAME&ELECTRONIC
COMPONENT
Electronic parts component 1
MSE6.0 controller - ZT184MP (matching split sensor /
Euro V)
1050958-0140006 1 Bosch EFI
To Next Page
