Zontes ZT350-T EURO V 2022 User Manual

3-INTAKE SYSTEM COMPONENT
16
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1 1224300-002000
ZT350
－
T Air filter
1
2
1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 4
3 1251300-063093
Plywood M6×11×15
（
Environmental protection
）
4
4
1251100-061093
M6×22 Hexagon flange bolt
（
color zinc
）
2
5
1051371-002000 Φ59×9 pipe clamp assembly 1
6 1224300-110000
Reverse buckle Velcro strap (20×200mm) 1

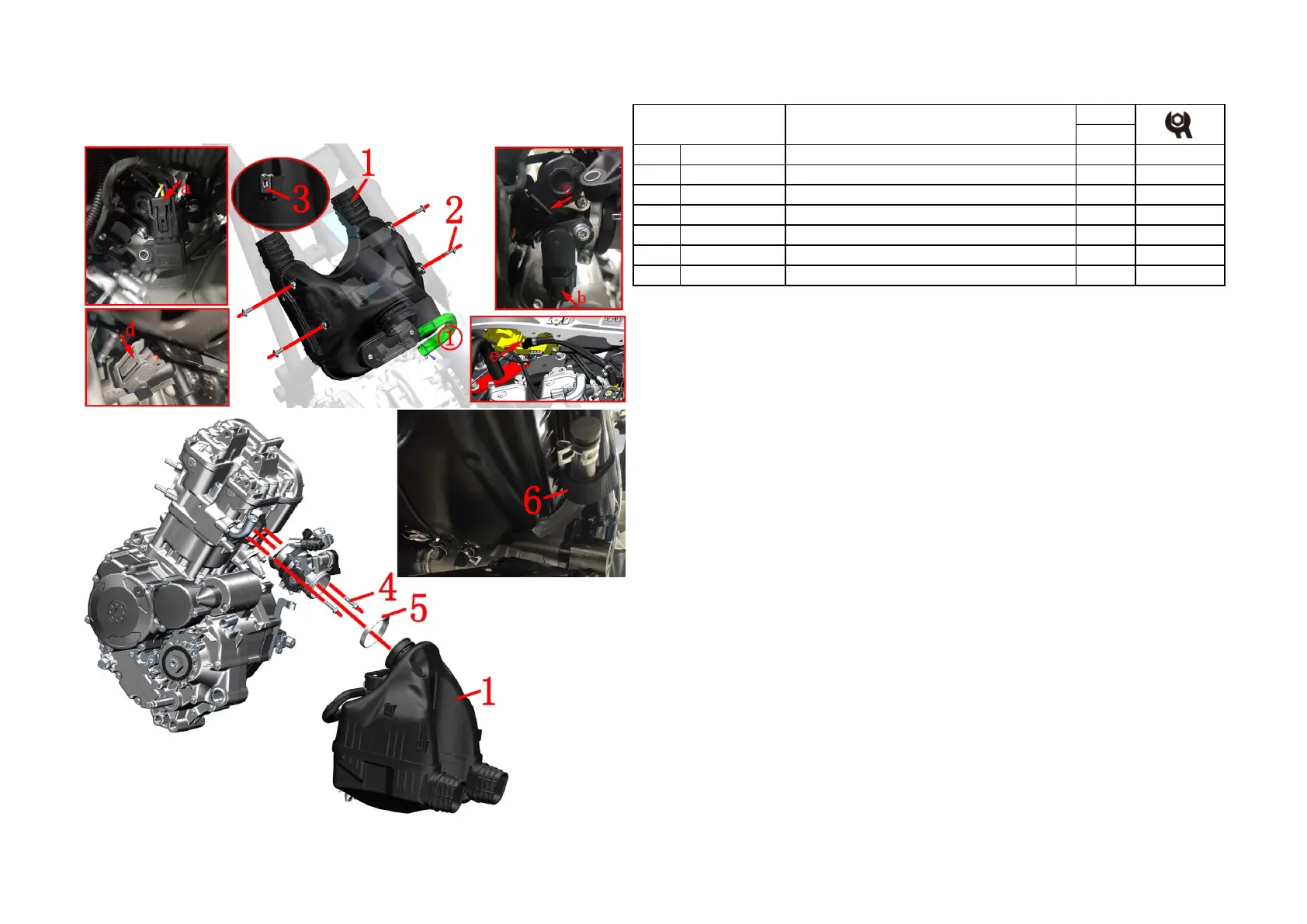

Fig.2 INDUCTION
SYSTEM COMPONENT
The air filter assembly
PROCEDURE:
Press the clip pointed by arrow A, B and D, pull out the connectors of external intake pressure sensor and
fuel injector, pull out the clip pointed by arrow C, and pull out the connector of stepping motor. Press the snap
pointed by the e arrow and pull out the interface. In the same way at the other end, remove the high-pressure
oil pipe. Untie the reverse buckle tie ⑹.
●Air filter
Loosen the pipe clamp assembly ⑸ near the end of the air filter, clamp the clamp on the waste gas pipe with
pliers and pull out the waste gas pipe ① connecting the exhaust port of the engine, then wrap it with plastic bag
and cover it with rubber band to prevent foreign matters from entering and damaging the engine.
Remove bolt ⑵ with 4# socket head; Remove the air filter ⑴ and clamp plate nut ⑶.
●Throttle valve body assembly
Unplug the connector of throttle valve body assembly, remove the throttle cable, and then use 8# ring wrench to
remove 2 bolts ⑷ to remove the throttle valve body assembly.
●Check whether the external intake pressure sensor is damaged
Loosen the connector and check whether the pin is skewed or broken. The vehicle is connected to the diagnostic
instrument without ignition. Check the engine parameters to see whether the pressure parameters are consistent
with the local atmospheric pressure.
CAUTION:
●
First it need to remove the cushion,side cover,oil tank component,rear shock absorber and electrical device box
etc.
●Pay attenion to force when removing clamp.
●Fireworks, answering or dialing should be strictly prohibited near the car-breaking site to prevent accidents.
●When removing the high pressure oil pipe,It is sure to operate until the engine and muffler are completely
cooled.
