1-FRAME&ELECTRONIC COMPONENT
10
NO. PART NO. PART NAME QTY CAUTION
1 1250105-138093 GB5789M6×20 (environmental color) 1
2 1100100-820000
ZT350-R brake hose RC-HU section
（
）
1184200-004000 ZT310 horn
1184300-038000 ZT350-T speaker (19-inch dedicated)
4 1274300-065000 ZT350-VX front oil outlet pipe bracket 1
5 1251112-001093 M6×16 Hexagon flange bolts (color Zinc) 1
6 1250205-040095 GB70.1 inner hex bolt M8×16(color Zinc) 2
7 1184100-012000 ZT250-S shut down switch 1
8 1274100-095000 ZT250-S Flameout switch wire fixing bracket 1
9 1274100-017000 ZT250-S cable buckle 2
10 1224100-037000 Grade 0 flame retardant tie (black 3.6×295) 1
11 1050958-007000 ZT350 EFI high voltage line 1
12 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color Zinc) 2
13 1050958-006000 ZT350 lgnition oil body 1
14 1244200-139000 ZT310 rubber buckle (120mm) 1
Electronic parts component 2
3
PROCEDURE:
●Horn
Unplug the horn plug, remove the bolt ⑴ with 10# sleeve, pull out the brake hose ⑵, remove the bolt ⑸ with
8# sleeve, and remove the horn ⑸ and oil outlet pipe support ⑷.
●Shut down switch
Find the plug of the flameout switch ⑺ and pull it off; ⑷ press the thread buckle inward in the direction of the
arrow shown in the figure and pull it out with force; Cut the tie ⑸. Remove the bolt ⑻ with 6# hexagon socket,
remove the bracket ⑹ and the flameout switch ⑺.
●Ignition coil
Find and pull out the plug of ignition coil ⒀, untie the wire buckle ⒁, pull out the EFI high-voltage wire in the
direction indicated by the arrow in the figure, and remove the EFI high-voltage wire ⑾; Use 8# sleeve to remove
two bolts ⑾ and remove ignition coil ⒀.
CAUTION：
●When take off the plug can't drag any cable.
●Pay attention to the force when removing the buckle to prevent damage to the buckle.
1

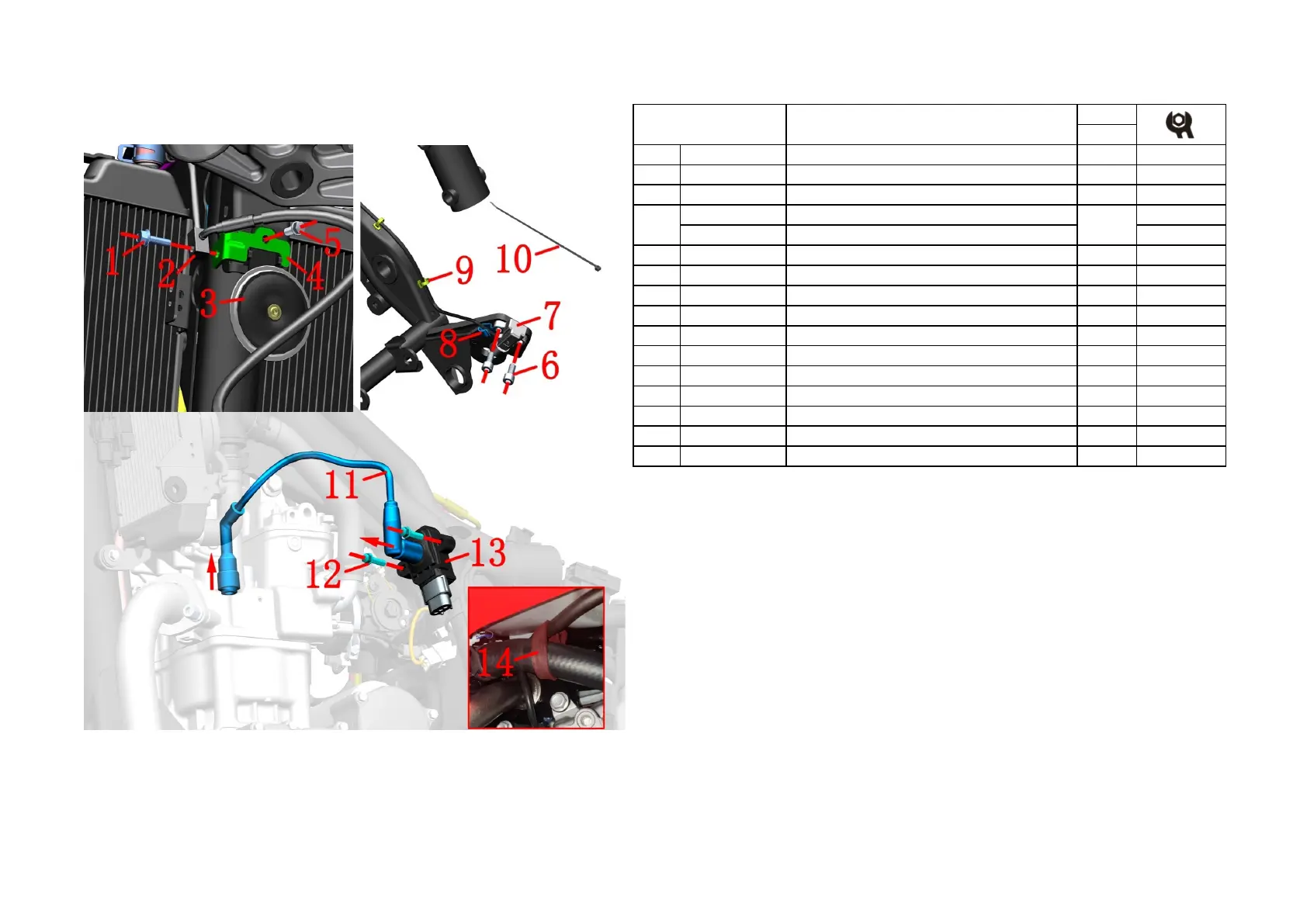

Fig.2 FRAME&ELECTRONIC
COMPONENT
