5-DOUBLE ROCKER COMPONENT
31
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard bolt M6×16
（
）
2 1224200-003000 ZT310-R Rear disc brake pipe clamp 2
3 1224100-044000 Wheel speed sensor clamp 2
4 1100100-820000
ZT350-R brake hose RC-HU section
（
）
5 1181200-118000 Wheel speed sensor(A) 1
7 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 3
8 1274100-057095
Flanging bushing φ6.2×φ8.4×3.5
＋
－

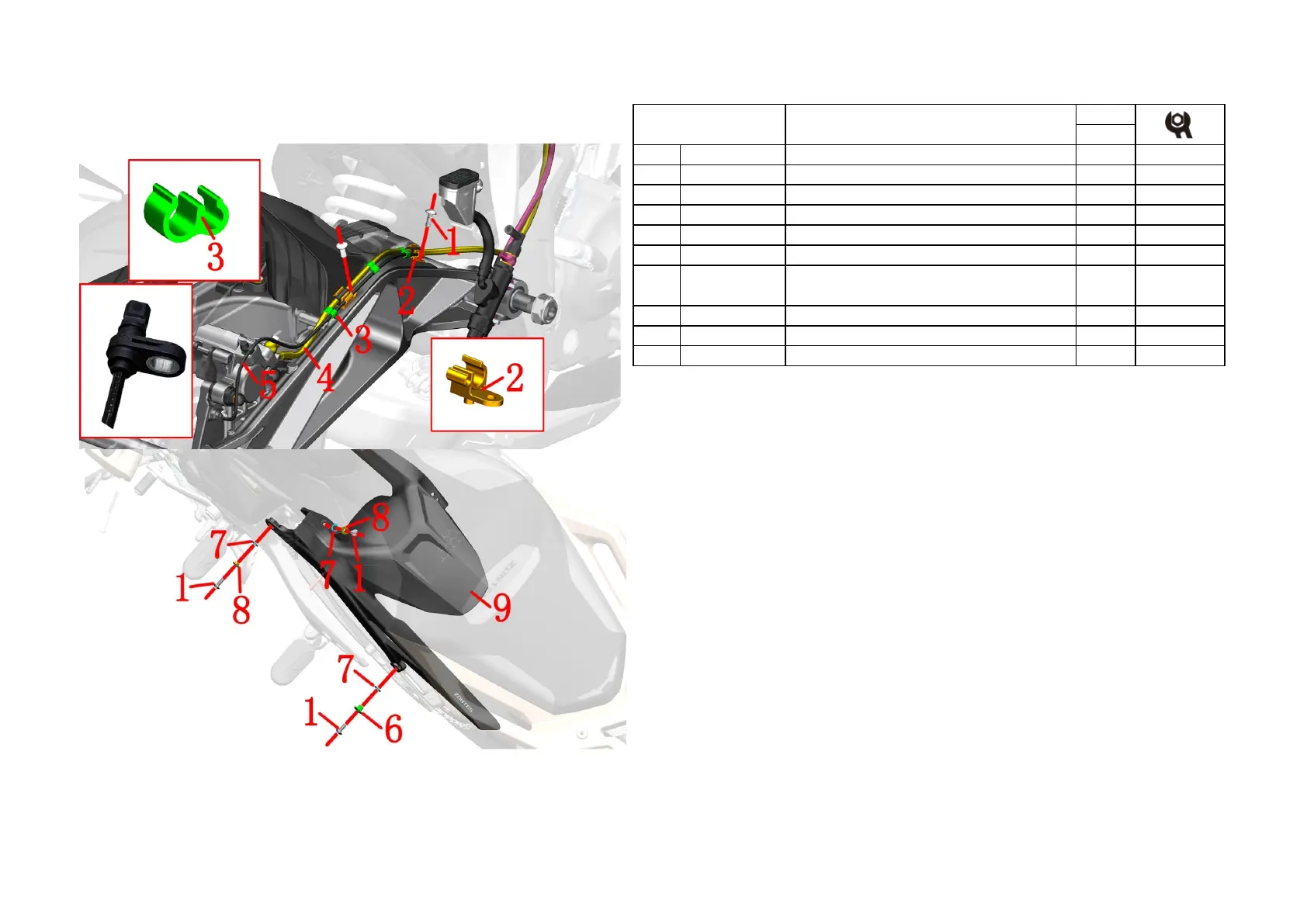

Fig.1 REAR WHELL
COMPONENT
Rear mud board
1251700-059093
Flanging bushing φ6.4×φ9×8＋φ18×2(environmental
color)
16
PROCEDURE:
●Rear inner mudguard
Remove the muffler rear section by refering to the steps in "MUFFLER COMPONENT".Pull out the brake oil
tube⑷ and wheel speed sensor cable⑸,which are on the right side of rear inner mudguard,from the rear disc
brake pipe clamp⑵.Remove the two sensor clamps⑶.
On the right side using 4# inner hexagon socket remove 2pcs bolts⑴,take off the brake pipe clamp⑵.
On the left side , using 4# inner hexagon socket remove 2pcs bolts⑴ at the left front of the rear inner mud
board.,take off the flanging bushing⑻,bushing⑺;then remove the bolts at the left rear of the rear inner mud
board,take off the flanging bushing⑹,bushing⑺;remove rear inner mud board⑼.
CAUTION:
●Use suitable tools supported the motorcycle, in case of accidents caused by motorcycle falling down. Single
person operating is prohibited.
●Stay alert during the manipulation and avoid accident.
