3-INTAKE SYSTEM COMPONENT
15
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1250303-010093 GB6177.1M6（color zinc） 3
2 1274300-038000
ZT350－R electromagnetic valve bracket
1
3 1050954-009000 YH Carbon tank electromagnetic valve 1
5
1050958-015000 Non-standard bolt M6×12 (304 stainless steel) 2
6 1224300-069000
ZT350－R Carbon tank(with fuel conduit)
1
7 1224300-002000
ZT350－T Air filter
1
8 1050961-004000 Air filter intake air temperature sensor 1
PROCEDURE:
●Air filter intake air temperature sensor
Remove the Air filter intake air temperature sensor⑺on the air filter⑻.If the sealant③ falls off when pull out
the sensor⑺,plug it back to the original position
●Carbon tank electromagnetic valve
Find and remove the Carbon tank electromagnetic valve plug.
Loosen the hoop and pull out the pipe ① and ⑷,remove the pipe⑷.Then use 10# sleeve remove the nut
⑴,remove the electromagnetic valve⑶ and bracket⑵.
●Carbon tank
Pull the oil pipe② connecting the fuel tank on the carbon canister out of the fuel tank.
Using 4# inner hexagon socket remove the bolts⑸,remove the carbon tank⑹.
●Check whether the temperature sensor is damaged
Remove the temperature sensor from the air filter and place it in the ambient temperature (20 ～ 30 ℃), and use
a multimeter to check whether the resistance of the two pins is between 2726 ～ 1770 Ω.
●check the carbon canister solenoid valve
In case of poor engine performance; Poor idle speed; If the air-fuel ratio is incorrect, check the carbon canister
solenoid valve.
Use a multimeter to measure the resistance between the two inserts of the carbon canister solenoid valve plug,
which should be 35 ± 2 Ω, otherwise the solenoid valve fault can be judged.
CAUTION:
●First it need to remove the cushion,side cover,rear shock absorber and electrical device box etc.
●Regularly check whether the filter element of the carbon tank and air filter is not ventilated, otherwise it may
cause the oil supply to affect the driving experience.
●It should be no crimp, entanglement and other phenomena.
●The two oil pipes of the carbon canister solenoid valve must not be connected incorrectly.

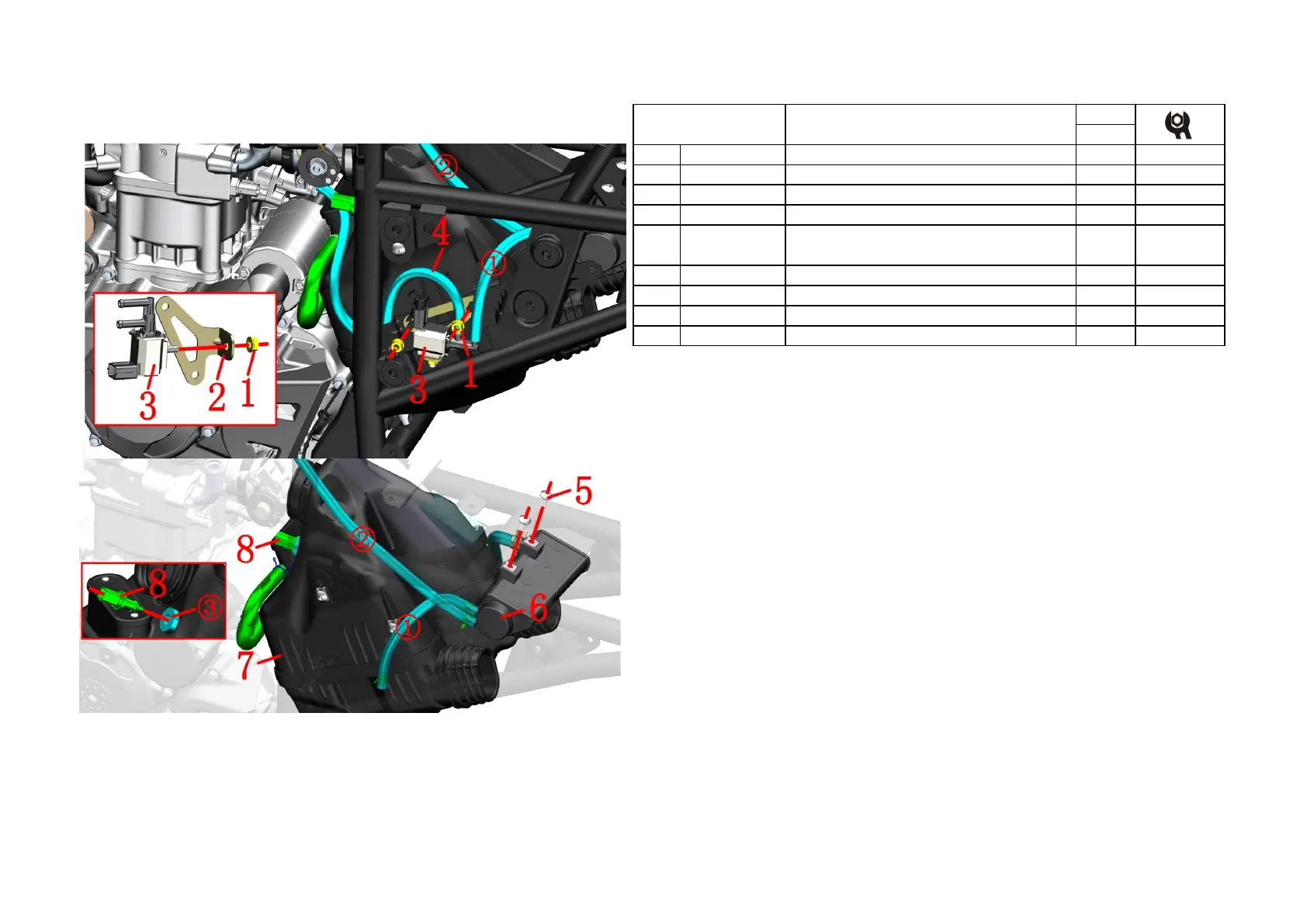

Fig.1 INDUCTION
SYSTEM COMPONENT
Maintain the filter element of the air filter
4 1244200-117000
ZT44 Throttle Valve Decoupling Rubber Tube
(Φ6×Φ10×L420+Φ9 pipe clamp ×2)
1
To Next Page
