5-DOUBLE ROCKER COMPONENT
36
NO. PART NO. PART NAME QTY CAUTION
－
GK rear sprocket buffer adhesive
6
3 1250305-002091 GB6187.1 M8(White zinc) 6 24N.m
－
－
－
Non-standard inner hex bolt M8×25 (environmental color)
－
GK outer oil seal of sprocket seat
1

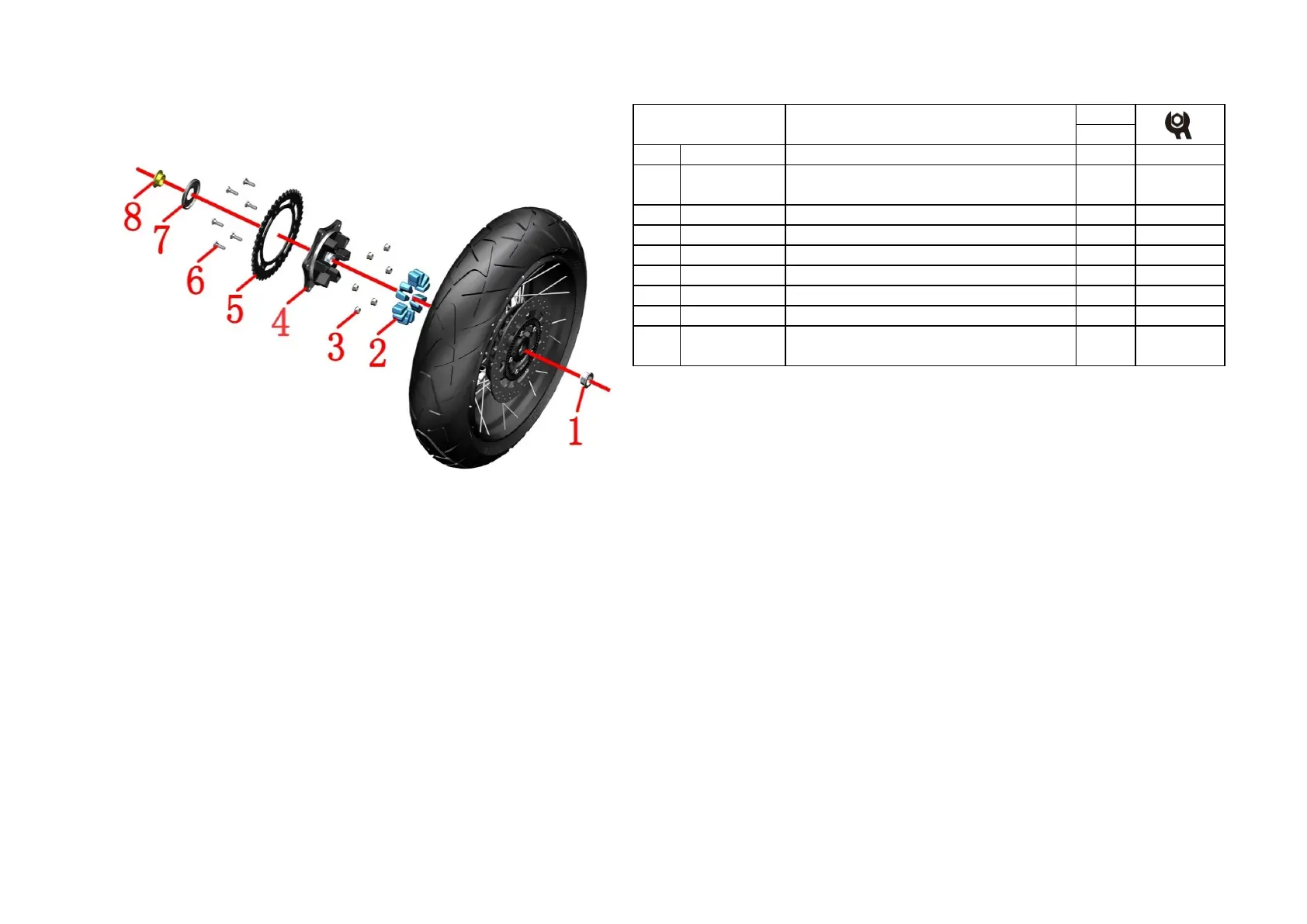

Fig.6 REAR WHELL
COMPONENT
Rear wheel component 4 (spoke wheel)
1 1274300-011000
ZT350－GK rear wheel right sleeve(φ25×φ30×
15.5/shoulder φ38)
1
8 1274300-010000
ZT350－GK rear wheel left sleeve(φ25×φ30×
13.5/shoulder φ43×2.5)
1
PROCEDURE:
●Sprocket seat component
Put down the rear wheel component horizontally. Take off left and righe bushings,outeroil seal⑺;Take down
sprocket component,secure bolt⑹with 6# inner hexagon socket and remove nut ⑶with 14# wrench.Remove
sprocket⑸ and bolt⑹ from sprockeseat⑷.
Pull the sprocket buffer glue⑵ out of the rim.
●Fault detection of sprocket seat
The sprocket seat and the rim are connected by buffer glue. If the sprocket seat assembly can rotate back and
forth in a small range in the circumferential direction of the rear axle axis, it is normal. If it can rotate back and
forth in a large range, check the buffer rubber and bearing clearance; If it can swing left and right, it is a fault.
CAUTION:
●Use suitable tool to support the motorcycle. Avoid accidents caused by falling motorcycle. Single person
manipulation is prohibited.All the standard parts need to reach standard torque while reassembling.
●All the standard parts need to reach standard torque while reassembling.
●Check the chain regularly. Increase the frequency of adjustment of the chain according to the driving
conditions. Keep the tightness of chain to be in a suitable range. Too loose chain have possibility to separate from
sprocket or damage the engine. Too tight chain can be worn out quickly.
●Rear sprocket bearing model:6006-2RS,size:φ30×φ55×13.
