5-DOUBLE ROCKER COMPONENT
37
NO. PART NO. PART NAME QTY CAUTION
1 1230100-567000
160/60ZR17 CM
－
－
T front spoke wheel MT4.5×17
1
－
GK rear brake disc (265×4.5) 1
4 1274200-058000 ABS induction ring (60 teeth) 1
6 1184300-021000 ZT350 tire pressure sensor (M8 elbow joint/120°) 1
PROCEDURE:
●Disc brake plate, ABS gear ring
Using 6# inner hexagon socket remove bolts⑸,remove ABS gear ring⑷ and disc brake plate⑶.
●Tire and wheel component
Remove the Tire pressure sensor ⑹ built-in valve cap③ use a tool to release the air, then use a professional tire
puller to remove the rear tire⑴. Be careful to avoid the tire pressure sensor.
Use a 2.5mm Allen wrench to remove the bolts① on the tire pressure sensor.Then remove the tire pressure
sensor body;Take off nut② with 12# sleeve.Remove the valve.
CAUTION:
●Be careful while disassembling the tire and rim in case of damages on the components.
●After changing the tire, check air proof performace and dynamic balance.
●Not enough tire pressure can cause abnormal wear and tare. Too high pressure in summer might have
possibility of tire bursting.
●It needs running-in for about 300km after changing new arresters. During this period, leave enough braking
distance while riging.
●The tire repair fluid should not be used because it will block the stoma of the pressure monitoring
sensor,resulting in dificulty in inflating or failure of tire pressure momnitoring .
●Maintenance
Tire: Check regularly the tire on cracks and air pressure.If the tire is ware to the marker, change the tire with
same specification. See details in user manual. Ingradiant of tire include semi hot melt rubber. Area with too high
temperature is not suitable. If temparature of outdoor is too low, storing the motorcycle in warm place or indoor
is suggested in order to avoid frost crack. Normal temperaturestandard 280kPa.
Rim: Check if the rim has deformation or crack. Support the rim horizontally and check if it can rotate
smoothly. Specification of oil seal on rear rim is TC φ52×φ30×7. Bearing type: 6205-2RS,size:φ52×φ25×13.
Disc brake plate: Thickness can not be less than 4mm. If not, change it.
5 1251100-117093
Non-standard inner hex bolt M8×25 (environmental
color)
5
22～24N.m

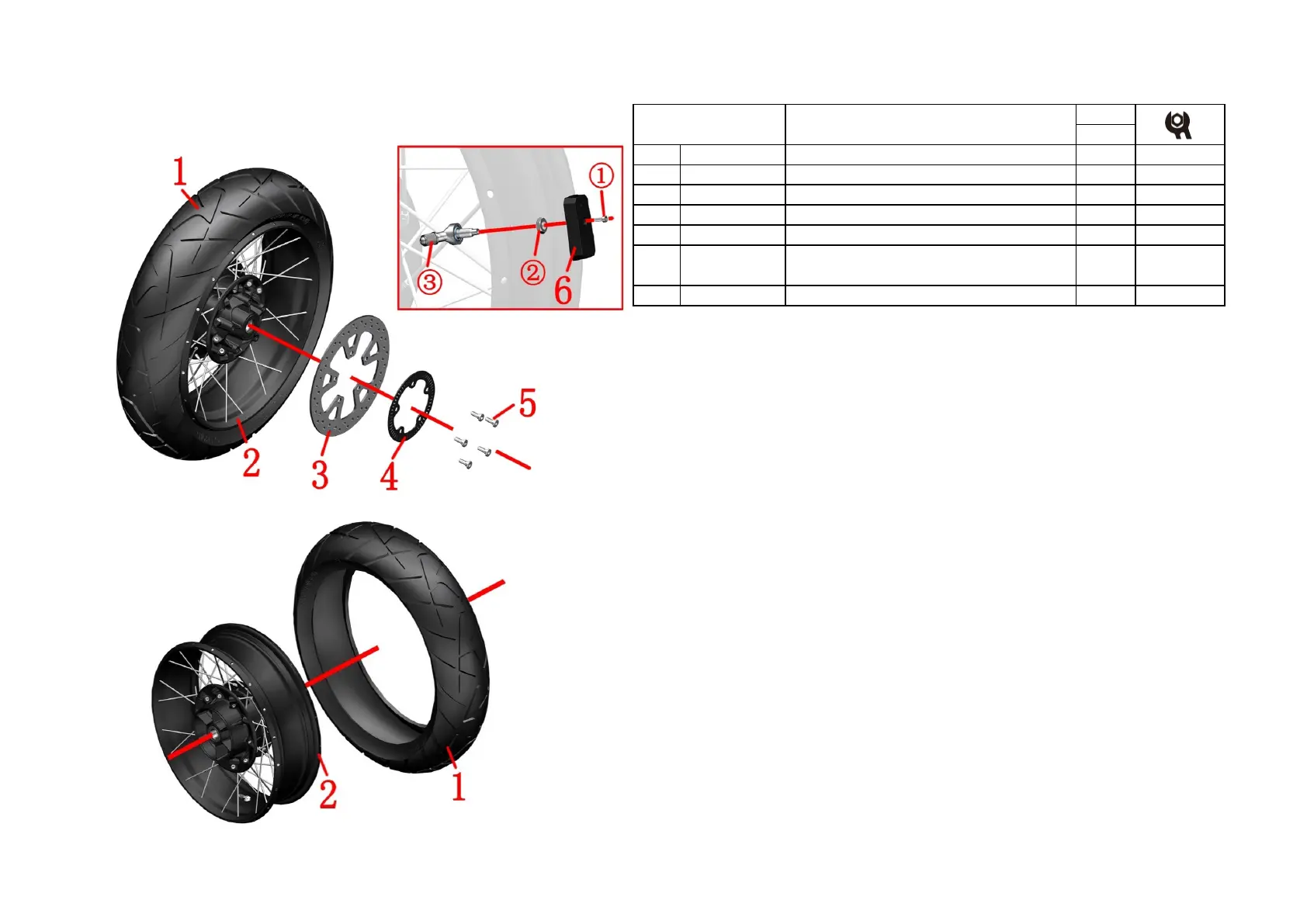

Rear wheel component 5 (spoke wheel)
Fig.7 REAR WHELL
COMPONENT
To Next Page
