4-SINGLE ROCKER COMPONENT
20
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000
Non-standard Bolt M6×12
（
）
2 1274100-057095 Bush φ6.2×φ8.4×3.5
＋
3 1244100-052000
Gum cushion, bush
（
）
4 ZT310-R1 sprocket baffle 1

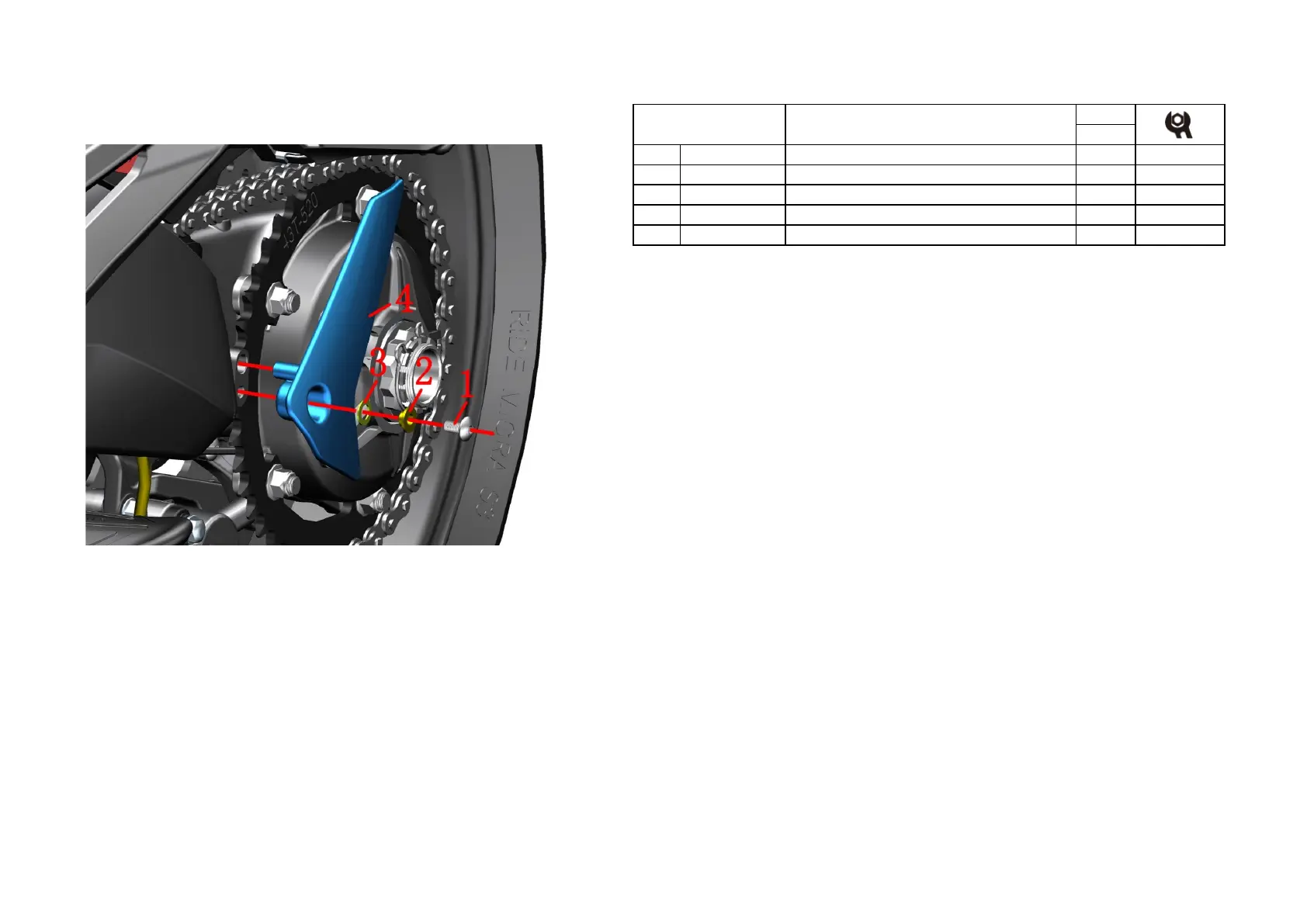

Fig.2 Rear wheel, swinging
arm assembly
Sprocket baffle
PROCEDURE：
●Sprocket baffle
Remove the bolt ⑴ with 4# hexagon socket, remove the flanging bushing ⑵ and buffer rubber ⑶; Finally,
remove the sprocket baffle ⑷.
CAUTION:
●When reassembling, pay attention to the limit boss on the sprocket baffle to be inserted into the limit hole of
the rear fork.
