4-SINGLE ROCKER COMPONENT
23
NO. PART NO. PART NAME QTY CAUTION
1 1251300-071000
Non standard nut M12×1.5
（
）
2 1230100-567000
160/60ZR17 CM
－
4 1260100-238000 ZT310-R1 rear wheel rim sign spring 1
5 1210142-000100 ZT310-R1 single rocker black rim sign 1
6 1184300-034000 ZT350 tire pressure sensor (M8 straight head) 1
PROCEDURE：
●Rear wheel assembly
Remove the 5 nuts ⑴with a 200N torque wrench and a 19# sleeve.
Support the vehicle horizontally and let the rear wheels leave the ground.
Remove the rear wheel assembly.
Extend the tool from the left to remove the rim sign ⑸ from the rim and remove the plaque spring ⑷ from the
placard⑸.
●Tire and rim assembly
Unscrew the nut ① to release the air, unscrew the nut ②, and take out the flat gasket ③. Then use a professional
tire puller to remove the rear tire⑵. Finally, take out the sensor ④.
●Maintenance
Tire: Check regularly the tire on cracks and air pressure.If the tire is ware to the marker, change the tire with
same specification. See details in user manual. Ingradiant of tire include semi hot melt rubber. Area with too high
temperature is not suitable. If temparature of outdoor is too low, storing the motorcycle in warm place or indoor is
suggested in order to avoid frost crack. Normal temperaturestandard 280kPa.
Rim: Check if the rim has deformation or crack. Support the rim horizontally and check if it can rotate smoothly.
Disc brake plate: Thickness can not be less than 4mm. If not, change it.
CAUTION:
●Be careful while disassembling the tire and rim in case of damages on the components.
●After changing the tire, check air proof performace and dynamic balance.
●Not enough tire pressure can cause abnormal wear and tare. Too high pressure in summer might have
possibility of tire bursting.
●It needs running-in for about 300km after changing new arresters. During this period, leave enough braking
distance while riging.
●The tire repair fluid should not be used because it will block the stoma of the pressure monitoring
sensor,resulting in dificulty in inflating or failure of tire pressure momnitoring .

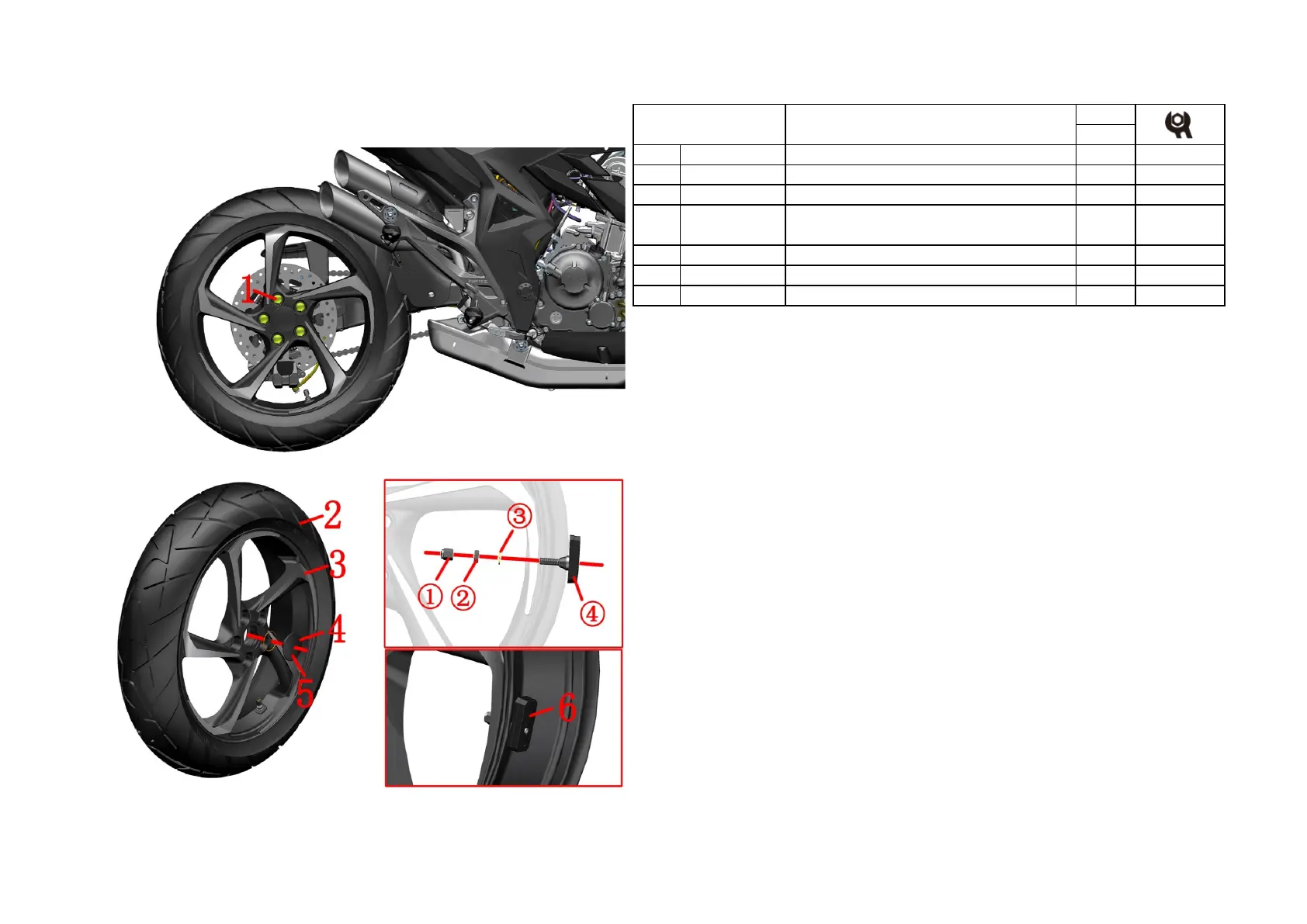

Fig.5 Rear wheel, swinging
arm component
Rear wheel component
ZT350-GK1 single rocker arm rear aluminum wheel
(MT4.5×17/black)
1094300-0080003 1
