4-SINGLE ROCKER COMPONENT
27
NO. PART NO. PART NAME QTY CAUTION
1 1250104-006097
GB16674M6×12
（
）
2 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5
＋
3 1244100-052000 Cuff bushing cushioning rubber (φ8.5×φ14×1) 5
4 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 2
5 1210342-424000 ZT310 rear mud board decal (RACING) 1
6 1224300-087000 ZT350-R1 rear inner mud plate 1
7 1210343-056000 ZT350-GK chain decal 1

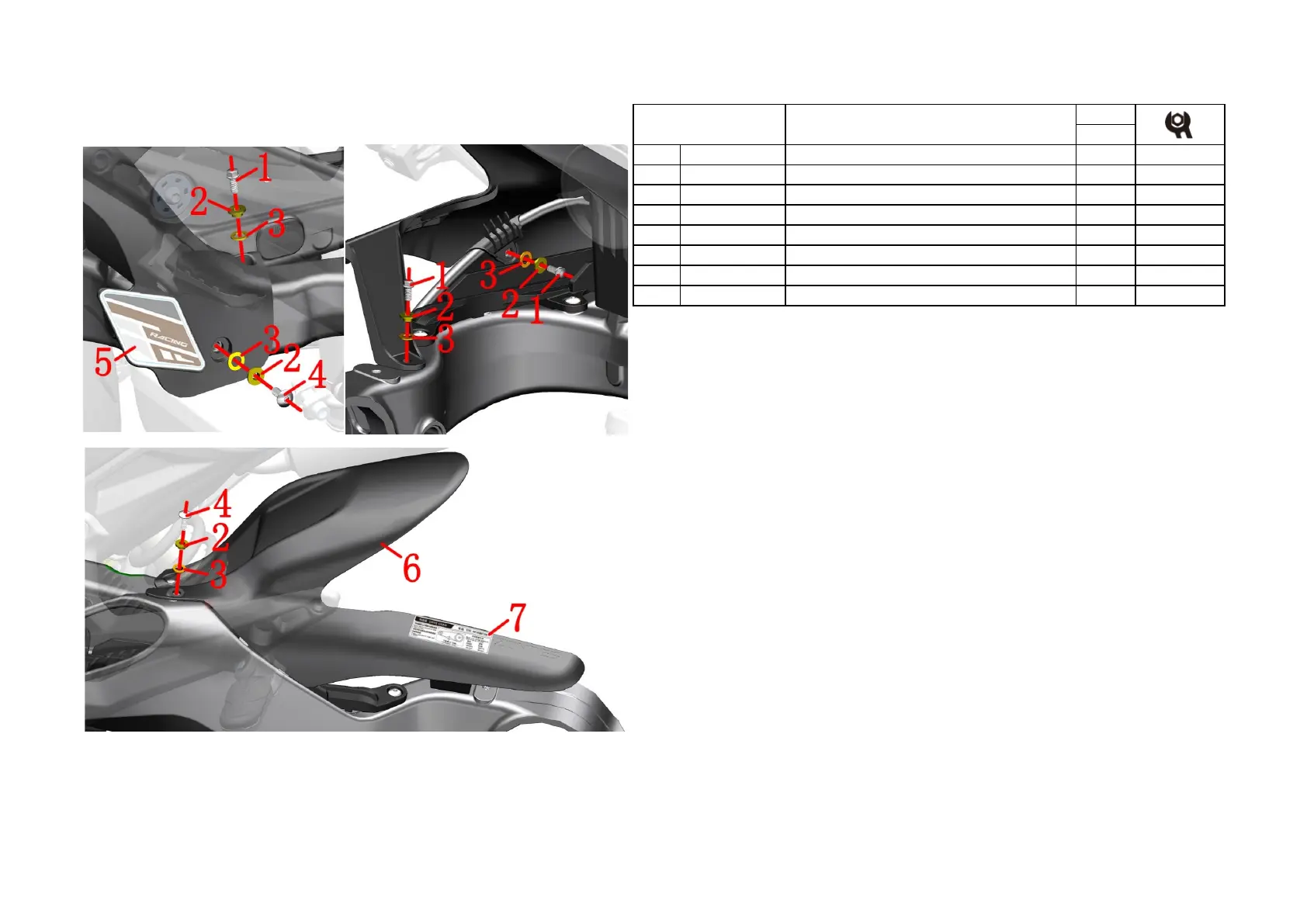

Fig.9 Rear wheel, swinging
arm component
Rear mud board
PROCEDURE：
●Rear mud board
CAUTION:
●
When heating and tearing the applique, be careful not to align the same part for a long time to prevent damage
to the inner mud board.
Extend the 8# sleeve into the gap above the right front of the rear inner mud plate, remove the bolt ⑴,
and remove the bushing ⑵ and buffer rubber ⑶.
Remove the bolt ⑷ on the right side with 4# hexagon socket, and remove the bushing ⑵ and buffer
rubber ⑶.
Use 8# sleeve to remove the bolt ⑴
at the front of the left inner side, and remove the bushing ⑵ and
buffer rubber ⑶.
Remove the bolt ⑴ at the rear of the left side with 8# sleeve, and remove the bushing ⑵ and buffer
rubber ⑶.
Hold the rear inner mud plate ⑹, remove the bolt ⑷ above the left front with 4# inner hexagon, and
remove the bushing ⑵ and buffer rubber ⑶.
The applique ⑸ and the chain decal ⑺ can be heated back and forth by a hot air gun, and the
applique is torn off from the inner mud plate after the heat viscosity is lowered.
To Next Page
