Zontes ZT350-T EURO V 2022 User Manual

2-FRAME & ENGINE COMPONENT
14
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251112-003093 M6×45 Hex flange surface 9.8 bolt (color Zinc) 2 10N.m
2 4050854-002051
ZT310-R engine left rear cover (dark gray) 1
3 1251300-057093 Non-standard nut M10×1.5(Dacromet) 3
65±5N.m
4 1274300-082000
ZT350-R engine hanger 2
5 1251100-060000
Non-standard bolts M10X1.5X90 (Dacromet)
3
7 4024300-003021
ZT350-R bracket 1
8 1250305-009091
GB6187.1 M12×1.25(White Zinc) 3
9
1251300-067000 ZT250-R rear wheel hollow shaft nut 1
10
1252200-040000 ZT310-R1 rear flat fork hollow shaft Φ20×315 1
11 1251100-262000
Non-standard bolt M12×1.25×127(Dacromet) 1

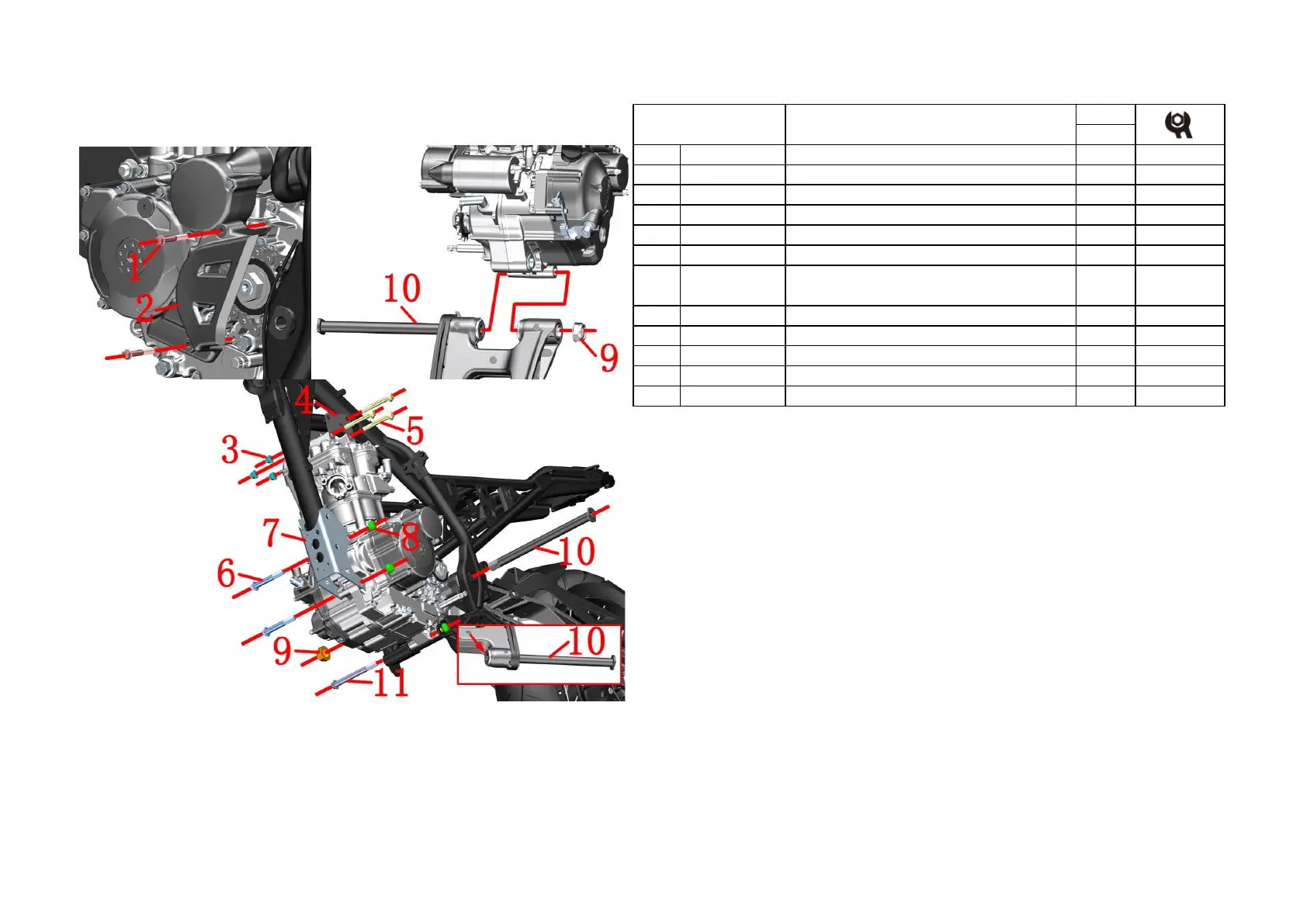

Fig.1 FRAME & ENGINE
COMPONENT
Engine combination
PROCEDURE：
●Engine left rear cover
Using 8# sleeve remove the bolt ⑴ disassemble the rear cover⑵.
●Remove the engine
Remove the guard bar assembly according to the steps of "guard bar assembly". Fix the head of bolt⑸ at the
connection between the upper part of the engine and the frame with 14# sleeve, remove three nuts (3) and bolts ⑸
with 14# sleeve, and remove the hanger ⑷. Fix the head of the bolt ⑹
at the bracket with a 14# sleeve, and then
remove the two nuts⑻ with 17# sleeve. Pull out two bolts ⑹ and remove the bracket⑺. Fix the bolt⑾ at the lower
hanging part of the engine with 14# sleeve, and then remove the nut⑻ with sleeve without pulling out the bolt ⑾.
Fix the head of the rear flat fork shaft ⑽ with 24# open-ended wrench and remove the nut ⑼ with 30# sleeve.
One person lifts the engine slightly, and the other person pulls out the rear flat fork shaft to the left shaft sleeve of
the rear flat fork, as shown in the left figure. Two people hold the left and right boxes of the engine at the same time.
One person pulls out the bolt ⑾ hanging under the engine and holds the engine out to the right side of the vehicle.
Pay attention to safety during movement. Place the engine on a level surface.
CAUTION：
●It is necessary to remove the seat cushion, fuel tank, side cover, pedal support, wind deflector,lower shroud
component,shift lever, muffler, radiator and pipe, cable, air filter joint, chain, positive wire of the motor, etc.
●The coolant should be drained before disassembly.
●The
waste oil needs to be collected and returned to qualified institutions. It is forbidden to dump and pollute the
environment and the source of water.
●All standard parts must meet the standard torque value when reassembling, and refill the engine oil according to
the operation instruction.
6
GB5187 non-sta
ndard bolt M12×1.25×85(10.9
garde/dacromet)
1251112-019000 2
