1-FRAME&ELECTRONIC COMPONENT
12
NO. PART NO. PART NAME QTY CAUTION
－
S Rating nut lock washer
1
－
S Steering column rating nut (color zinc)
2
－
S Rating nut glue cushion
1
－
R Steering stem dust cap (Up)
1
－
－
－
－
－
R steering stem dust cap(down)
1
CAUTION：
●Remove the head part component, handlebarcomponent and front shock absorber component first.
●Please pay attentin to fix the awaiting repair motorcycles during disassembly,prevent dumping by
accident.
●Please check whether the steel beads of the conjoined body have abnormal phenomena such as partial
abrasion and rust.If YES, please buy the regular accessories on ZONTES official website, if not, please
be sure to grease the old grease and repaint the lubricating grease on it.
●It must be
to check whether the steel ball is available during reassembly.
●It must be reasonable to adjust the steering, too loose will cause the locomotive to brake slightly, and
the locomotive will shake slightly, too tight can lead to inflexibility, resulting in safety hazards.
●If you have the ability and the right tool, you can change the shaft ring ⑼ and the dustproof
cover⑽.During the replacement process, pay attention to the protection of the lower connected plate.
After replacement, it must be to check the parallelism of the column and the damping hole, the vertical
degree of the vertical column and the lower connected plate.
Directional column component
8 4094300-002051
ZT350－RLower connection board (dark gray
matte/including shaft ring)
1
PROCEDURE:
●Dissembly
Remove the lock washer⑴.
Remove the top adjusting nut ⑵ by using a special four-jaw or hook wrench tools.
Remove the rubber pad ⑶.
With one hand to hold down the down connected plate assembly ⑻, the other hand use a special four-jaw set or
hook wrench to remove the adjusting nut⑵.
Remove the down connected plate component⑻.
Remove the upper dustproof cover⑷.
Remove the shaft ring ⑸ and the steel ball⑹.
Remove the steel ball⑺ of the down connected plate component⑻.
●Assemble
When reassembling, the conjoined steel ball should be painted lubricating grease,attention to the dosage.
The torque of rating nut which closes to upper dustproof cover is required to about 14N·m.So as to be able to
rotate out of nimbleness.
The upper adjustment nut only needs to be screwed to the bottom nut groove, and should not be too tight to
prevent the rubber pad ⑶ from being deformed too much.

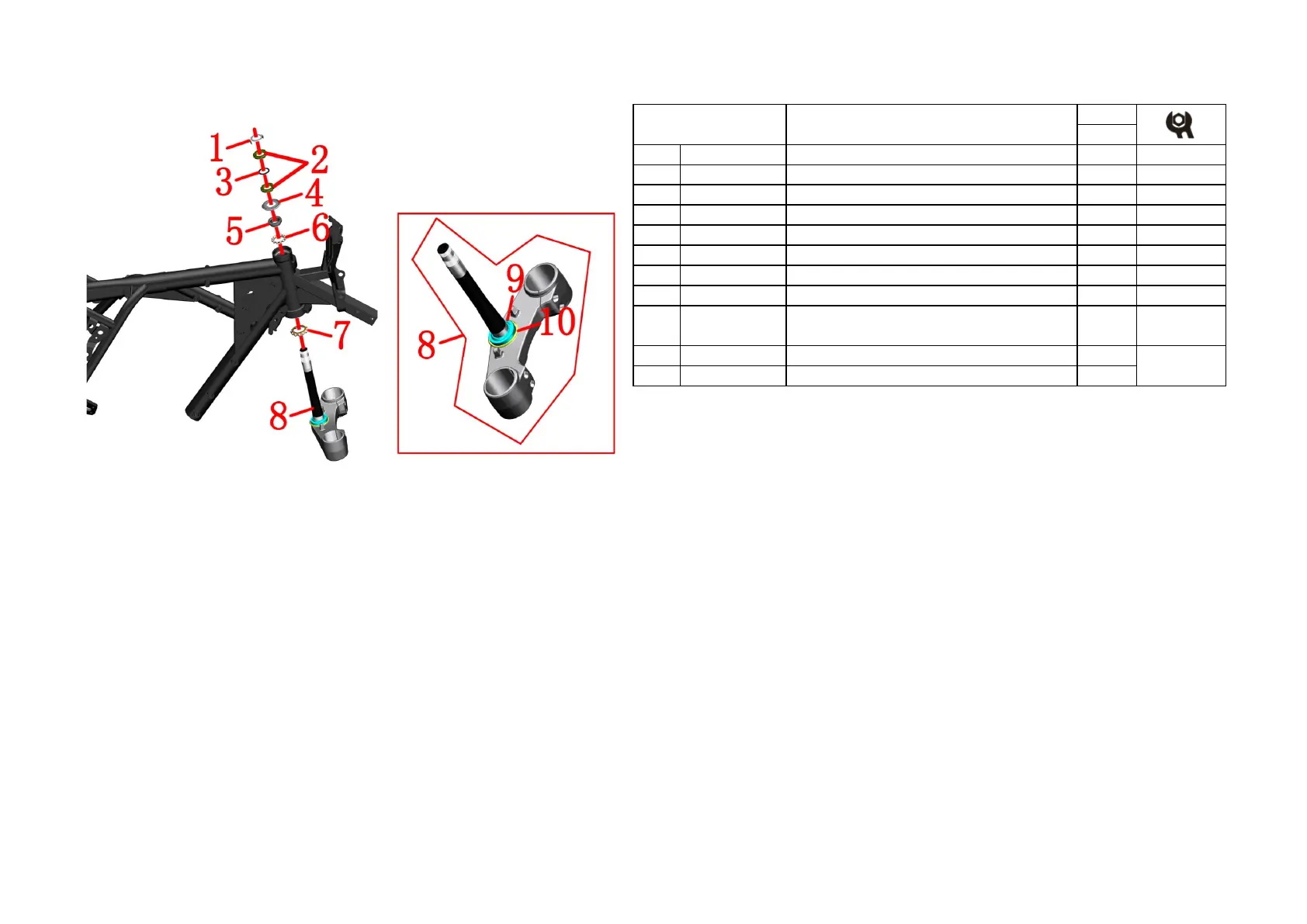

Fig.4 FRAME&ELECTRONIC
COMPONENT
