4-SINGLE ROCKER COMPONENT
25
NO. PART NO. PART NAME QTY CAUTION
1 1250105-137093 GB5789M6×16 (environmental color) 4
2 1250501-007093 GB93 φ8 (environmental color) 6
3 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 6
5 1274100-057095
Flanging bushing φ6.2×φ8.4×3.5
＋
6 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 4
7 1224200-097000 ZT310-R rear mudguard fender (without turn signal) 1
8 1251300-063093 Plywood M6×11×15(color Zinc) 2
10 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 4
4024200-10100012 1
After-sale

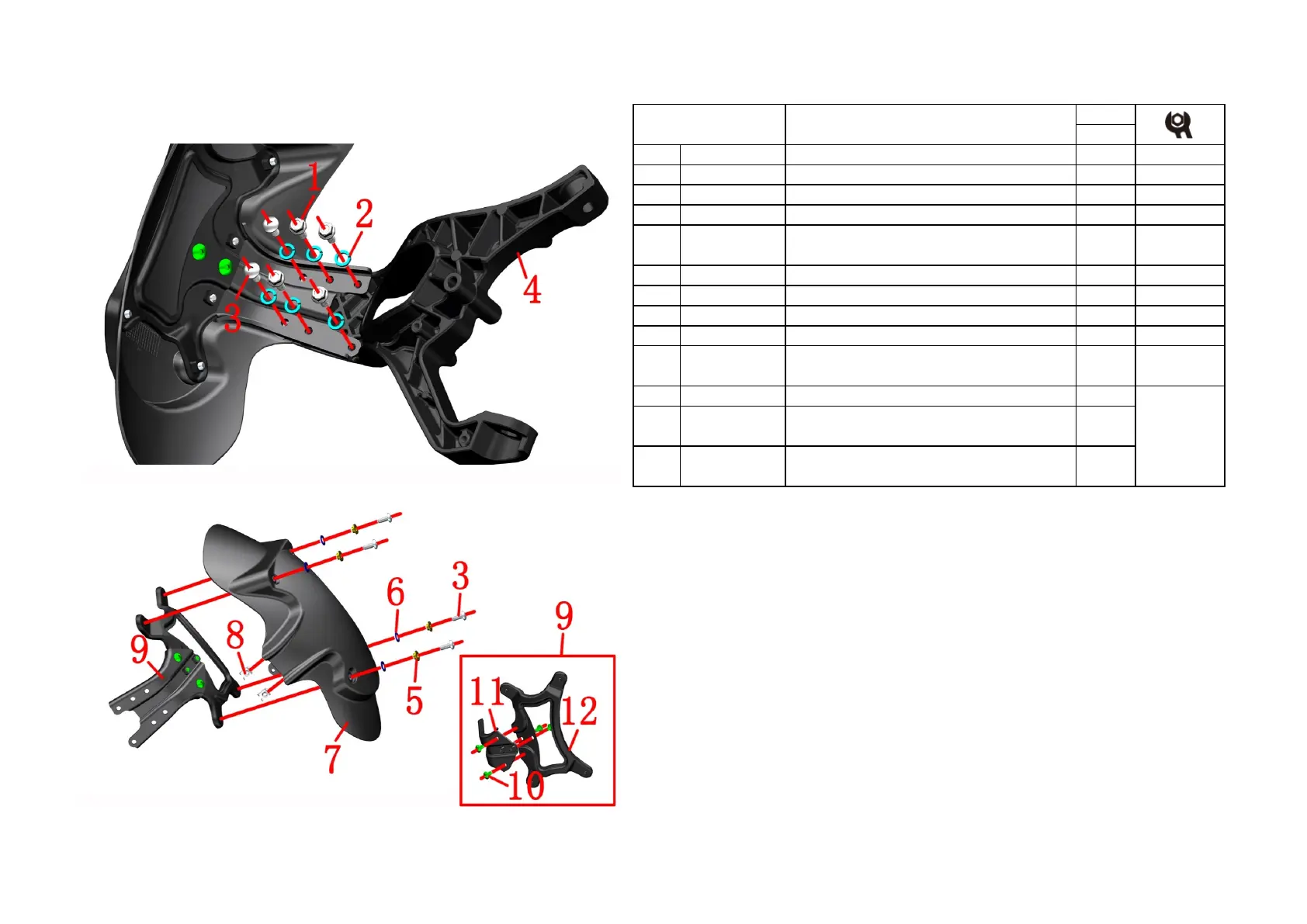

Fig.7 Rear wheel, swinging
arm component
ZT310-V rear auxiliary clay plate and iron bracket rear
section
4024200-03600011 1
Rear sub-mud assembly
4 1020242-265021
ZT310-R1 rear sub-mud aluminum alloy bracket
(homemade)
1
9 4024200-102000
ZT310 Rear sub mudguard iron holder
assembly(improved)
1
ZT310-R rear auxiliary mud plate iron bracket front
section
PROCEDURE：
●Rear auxiliary mud plate assembly
Remove 4 bolts ⑴ and washers ⑵ with 10# sleeves to remove the support ⑷;
Remove the inner two bolts ⑶ and washers ⑵ with the 4# inner hexagon, remove the rear four bolts ⑶ with
the 4# inner hexagon, remove the flanging bushing ⑸ and the flanging bushing buffer rubber ⑹, and then
remove the fender ⑺.
Remove 4 bolts ⑽ with 4# inner hexagon to separate the front and rear sections of the rear auxiliary mud plate
iron support.
