ACF5000 FTIR ANALYZER SYSTEM | OI/ACF5000-EN REV. A 41
CAUTION! Do not connect the sample gas line to the sample gas inlet on the ASP block
yet! This connection is made by ABB personnel during the commissioning
procedure.

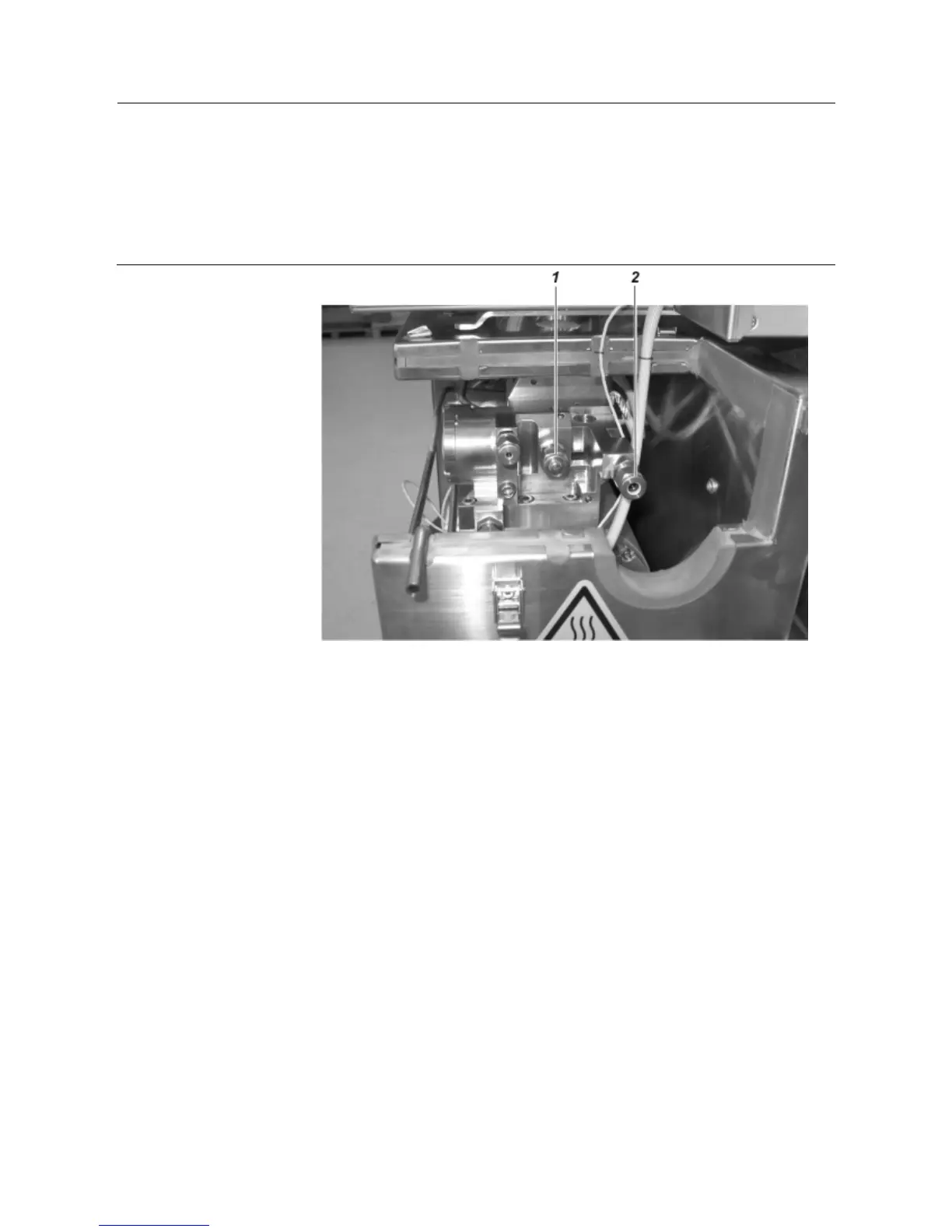

First connect a PTFE tube of approx. 0.5 m in length to the sample gas inlet 2
on the ASP block. Ambient air will then be sucked into the analyzer cabinet
from outside once the FTIR spectrometer is powered up.
The inlet for the water steam generator 1 on the ASP block must be closed by
means of a blanking plug.
1
Inlet for the water vapor generator
2
Pressure sensor
Connect the electrical leads on the sample gas line as per the "Wiring
diagram" and "Terminal diagram" in the system documentation.
