Mechanical installation of non-pre-assembled units (ACS800-04M)
108
Preparing the adapter (+H360 +H356 only)
Required parts
Procedure

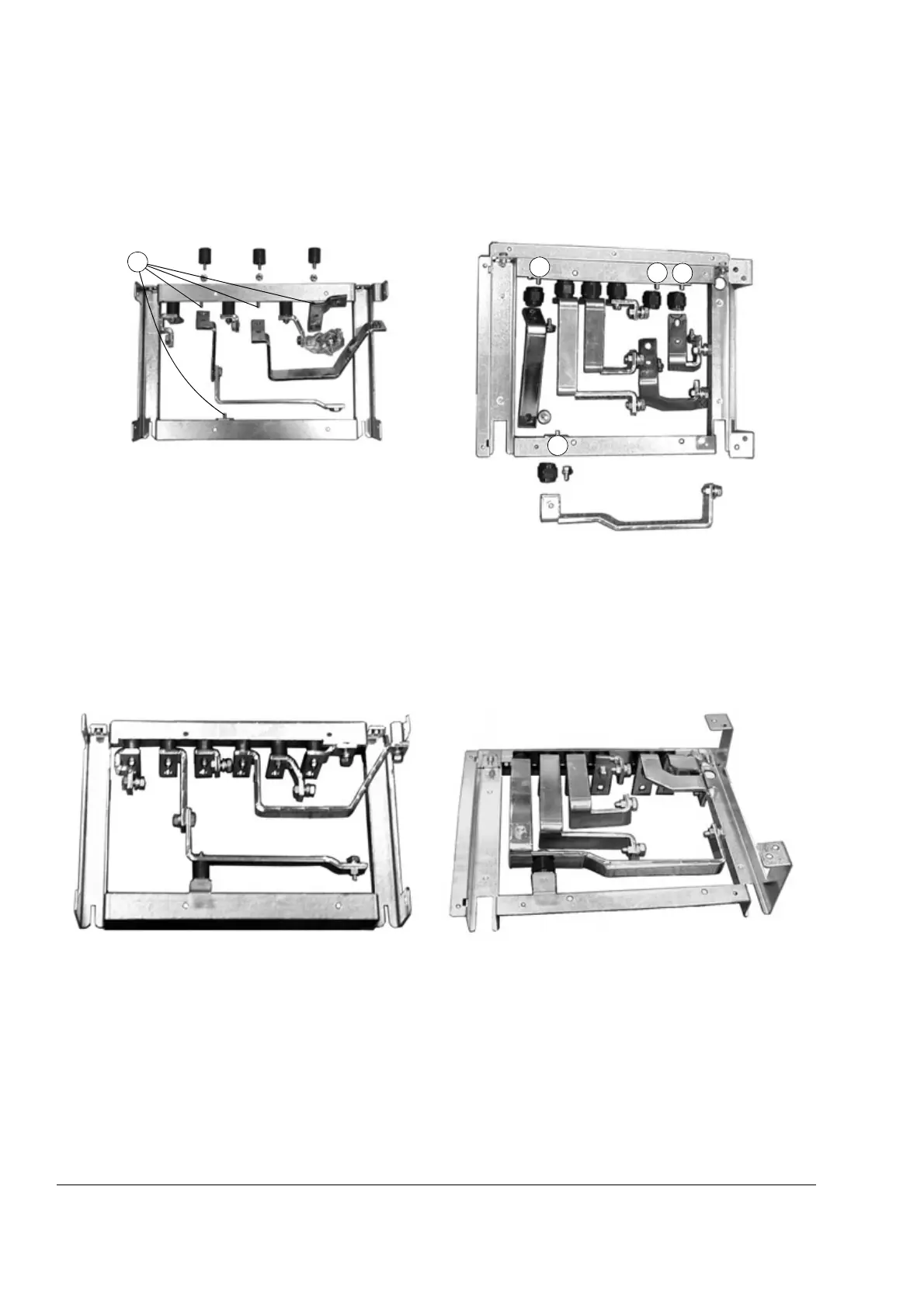

1. Screw insulating supports (“a” above) onto the free pins (“b” above).
2. Connect the connecting busbars to the insulating supports as shown below.
Connect busbar c to busbar d.
See also chapter Assembly drawings.
a
a
a
a
c
d
b
b
b
b
Frame size R7
a
a
a
c
d
f
b
Frame size R8
e
e
f
Frame size R7
c
d
e
f
Frame size R8
e
f
d
c
