Mechanical installation of non-pre-assembled units (ACS800-04M)
86
Fastening the output busbars and PE terminal and sliding the module in

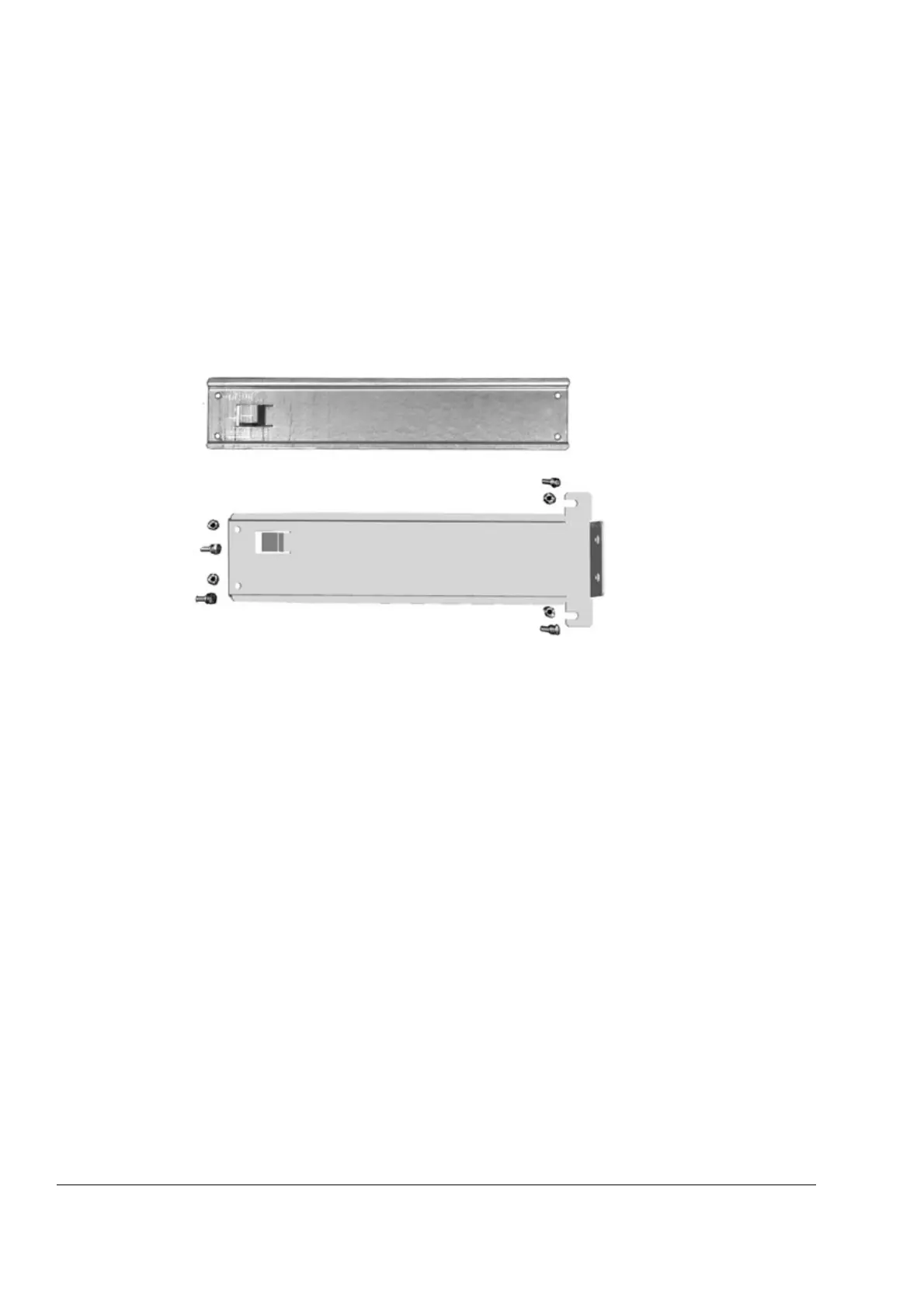

The steps of this installation procedure are shown in the photos on the next pages.
1. Connect the output busbars to the pedestal.
2. Fasten the PE terminal.
3. Screw the insulating supports onto the pins on the outer support bracket.
4. Fasten the output busbars and terminals to the insulating supports on the outer
support bracket.
5. Fasten the inner support bracket to the drive module.
6. Remove the fastening brackets (screws “b” on photos under Fastening the drive
module to the pedestal on page 89) from the pedestal.
7. Slide the module onto the pedestal so that the inner support bracket enters inside
the outer support bracket.
8. Fasten the outer support bracket to the drive module.
9. Fasten the stickers to the output busbars.
R8
R7
M6x16
M6x12
To Next Page
