Mechanical installation of pre-assembled units (ACS800-04/U4)
40

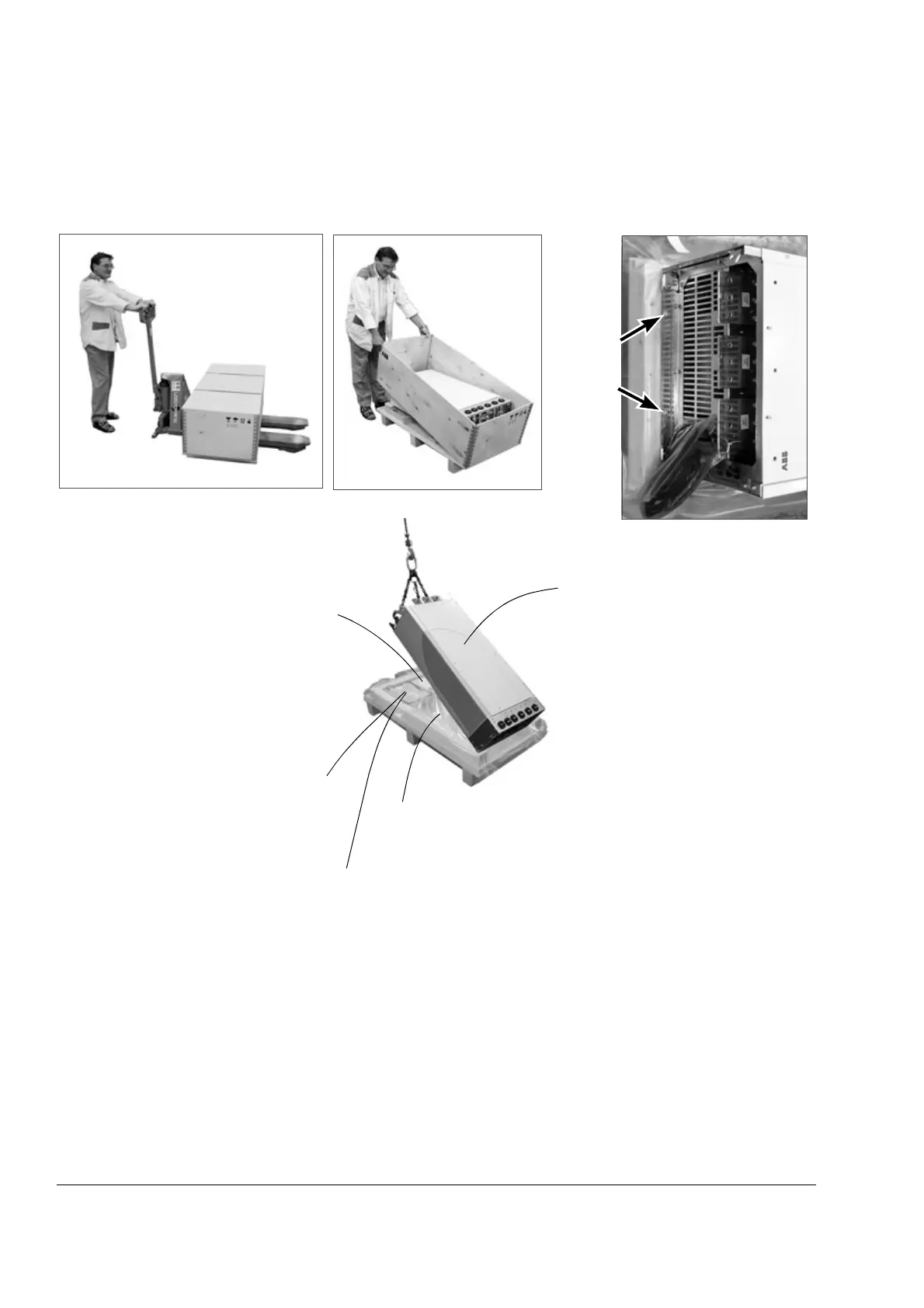

Move the transport package by pallet truck to the installation site. Unpack the
package as shown below.
Delivery check
Check that there are no signs of damage. Before attempting installation and
operation, check the information on the type designation label of the drive to verify
that the unit is of the correct type.
Undo the
fastening
screws.
The following items are fastened to
the drive module:
• pedestal
• output busbars U2, V2 and W2
• busbars for brake resistor
connection if brake chopper is
included.
• DC busbars if ordered
The following items are located below the drive
module:
Drive Control Unit (RDCU)
Note: Optional modules (if ordered) are
factory installed onto the RMIO board in
the RDCU unit. The fibre optic cables and
power supply cable to be connected to the
RMIO board are coiled on the top of the
drive module.
Base and wall fastening brackets,
terminals for output cable connection
and PE grounding. Screws are included
in a plastic bag.
Manuals (hardware, appropriate firmware,
optional module), delivery documents,
residual voltage warning stickers
Control panel with a 3 m (98 in.) cable
and RPMP control panel mounting kit (if
ordered)
