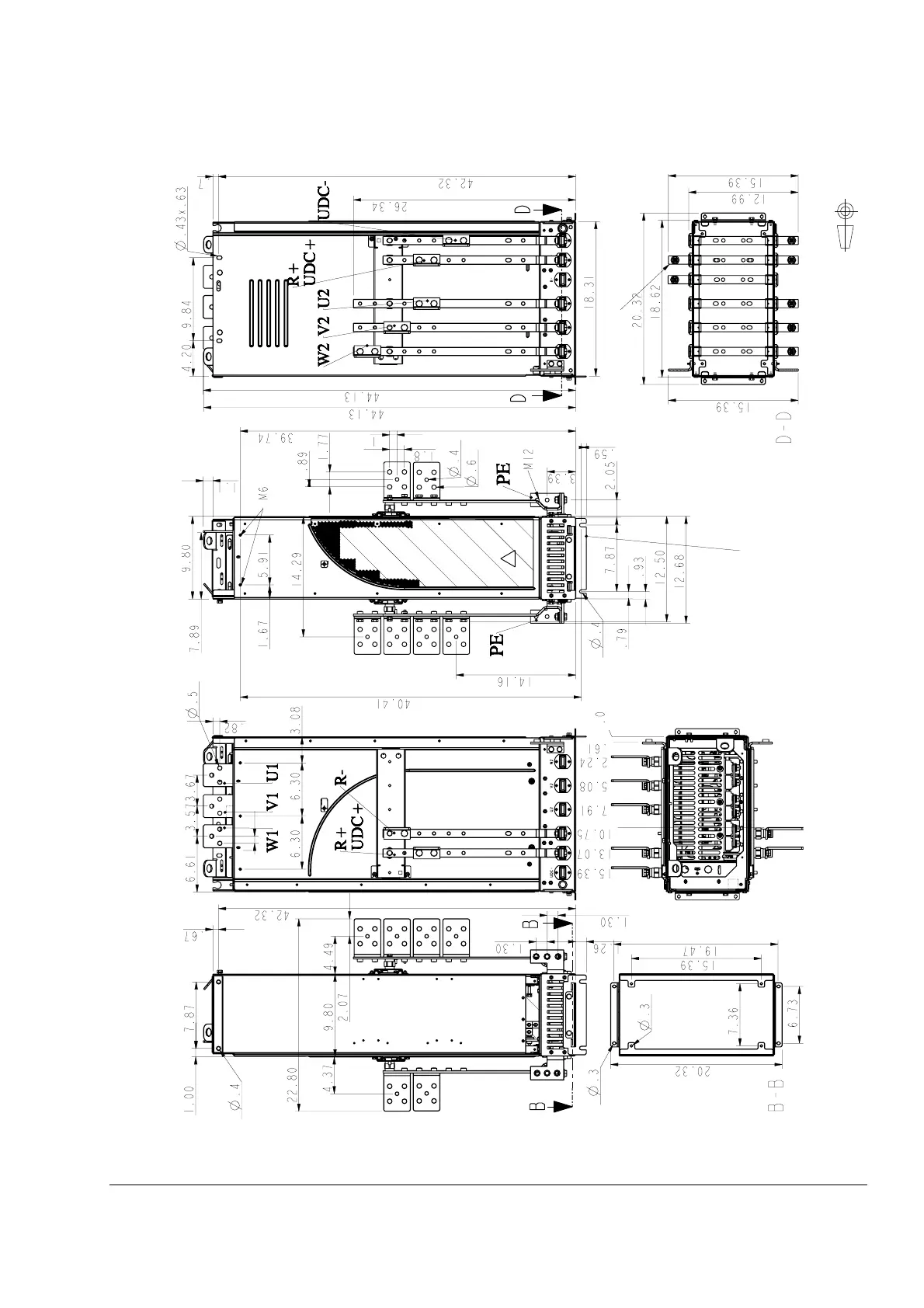

Dimensional drawings
143
Frame size R7 with busbars on both sides (inches)
68439221_2/7 F
Fastening bracket for
wall mounting only
Bilateral busbar
