Mechanical installation of non-pre-assembled units (ACS800-04M)
55

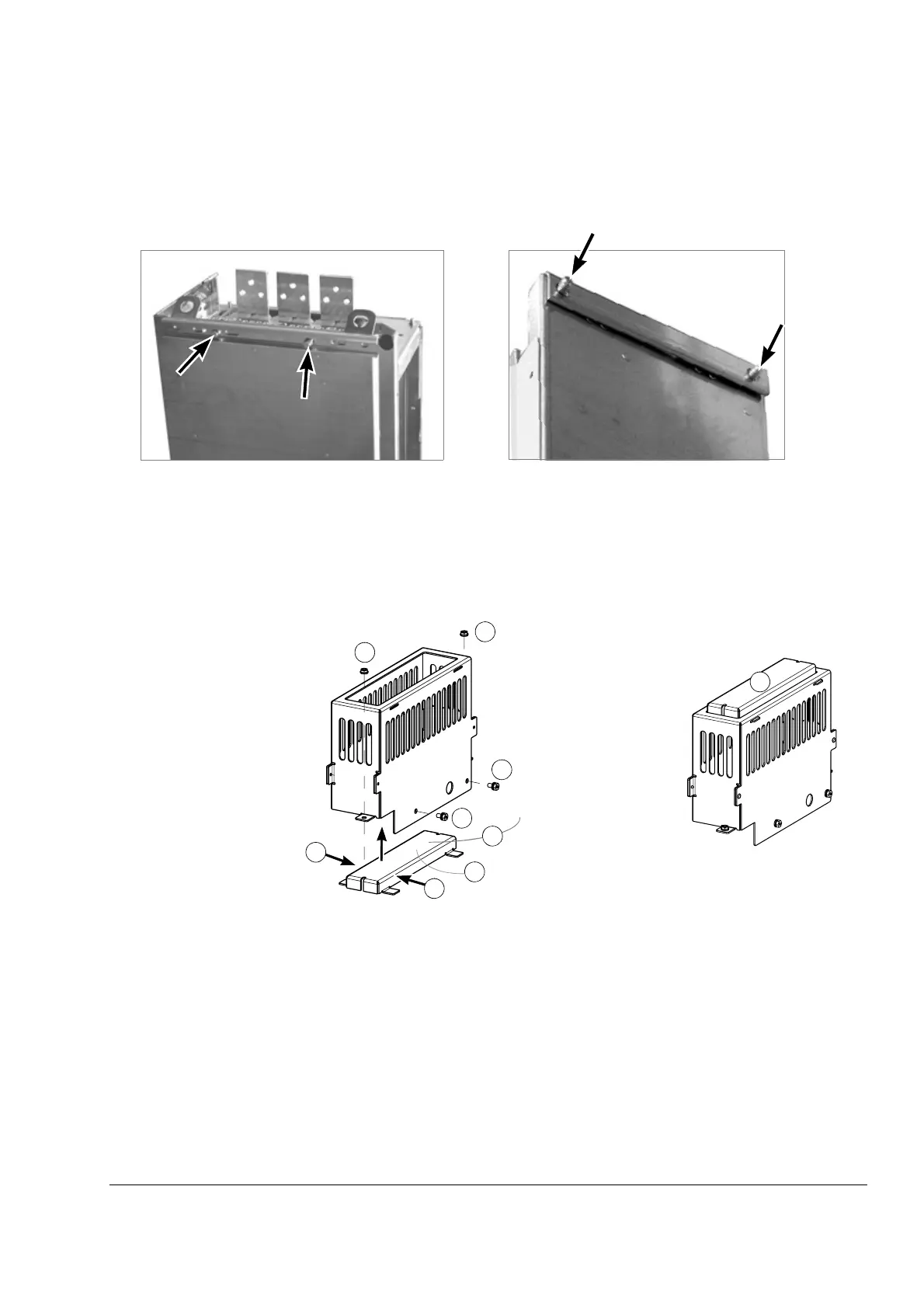

Fastening the spacer
Fasten the the drive module to the cabinet or wall using a spacer at the top of the
module on the fastening side.
Fastening the top entry busbar and bottom exit shrouds (+B060)
Top entry busbar shroud
Fastening the spacer to the long side of the module
(flat mounting)
Fastening the spacer to the short side of the module
(bookshelf mounting)
Press the top cover on the
sides inwards to enable its tabs
to enter the slots in the shroud
when it is placed in position (4).
Remove the
protective film.
Step drill lead-throughs
for the busbars.
2
1
3
3
4
5
5
5
5
Fasten the shroud to the drive module
