Mechanical installation of non-pre-assembled units (ACS800-04M)
80
Fastening the pedestal to the cabinet base (not for wall-mounted units)
Fasten the pedestal to the base of the cabinet either with the outside fastening
brackets or by using the fastening holes inside the pedestal.
Note: Place the module on a solid base. The fastening brackets are not strong
enough to carry the weight of the module on their own.

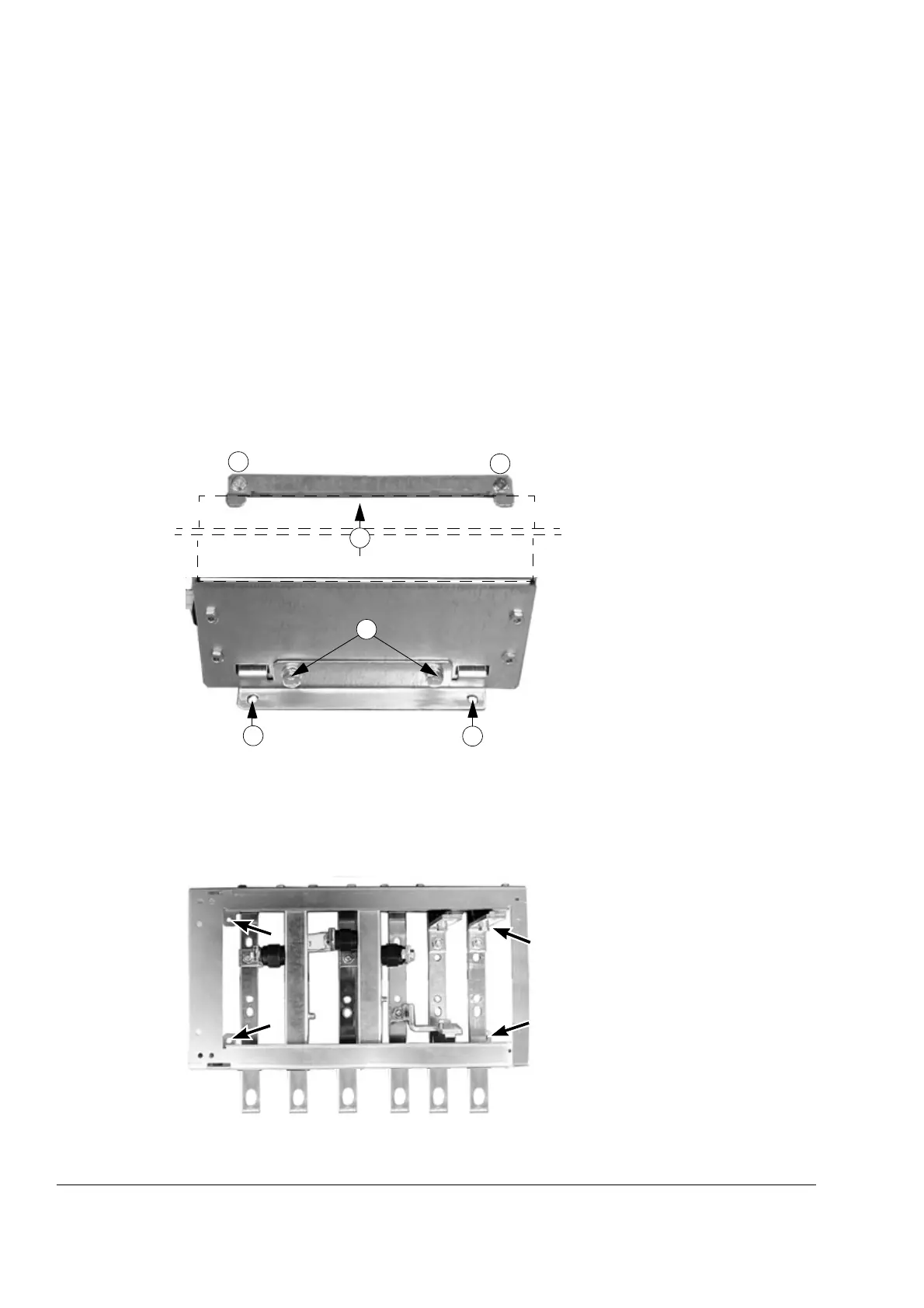

Clamping the pedestal with the outside brackets
1. Fasten the front bracket to the pedestal with two screws.
2. Fasten the back fastening bracket onto the cabinet floor with two screws.
3. Place the pedestal on the cabinet floor and push it so that the tabs of the
fastening bracket enter the slots in the pedestal.
4. Fasten the front bracket to the base with two screws.
Fastening the pedestal through the holes inside the pedestal
Fasten the pedestal to the base of the cabinet with four screws through the inside
fastening points.
M8
Tightening torque: 5 Nm (3.7 lbf ft)
M8 (5/16 in.)
3
2
2
4
4
1
M6, 5 Nm (3.7 lbf ft)
