Planning the cabinet installation
30
Required free space around the drive module for cooling
Free space at the top of the drive module

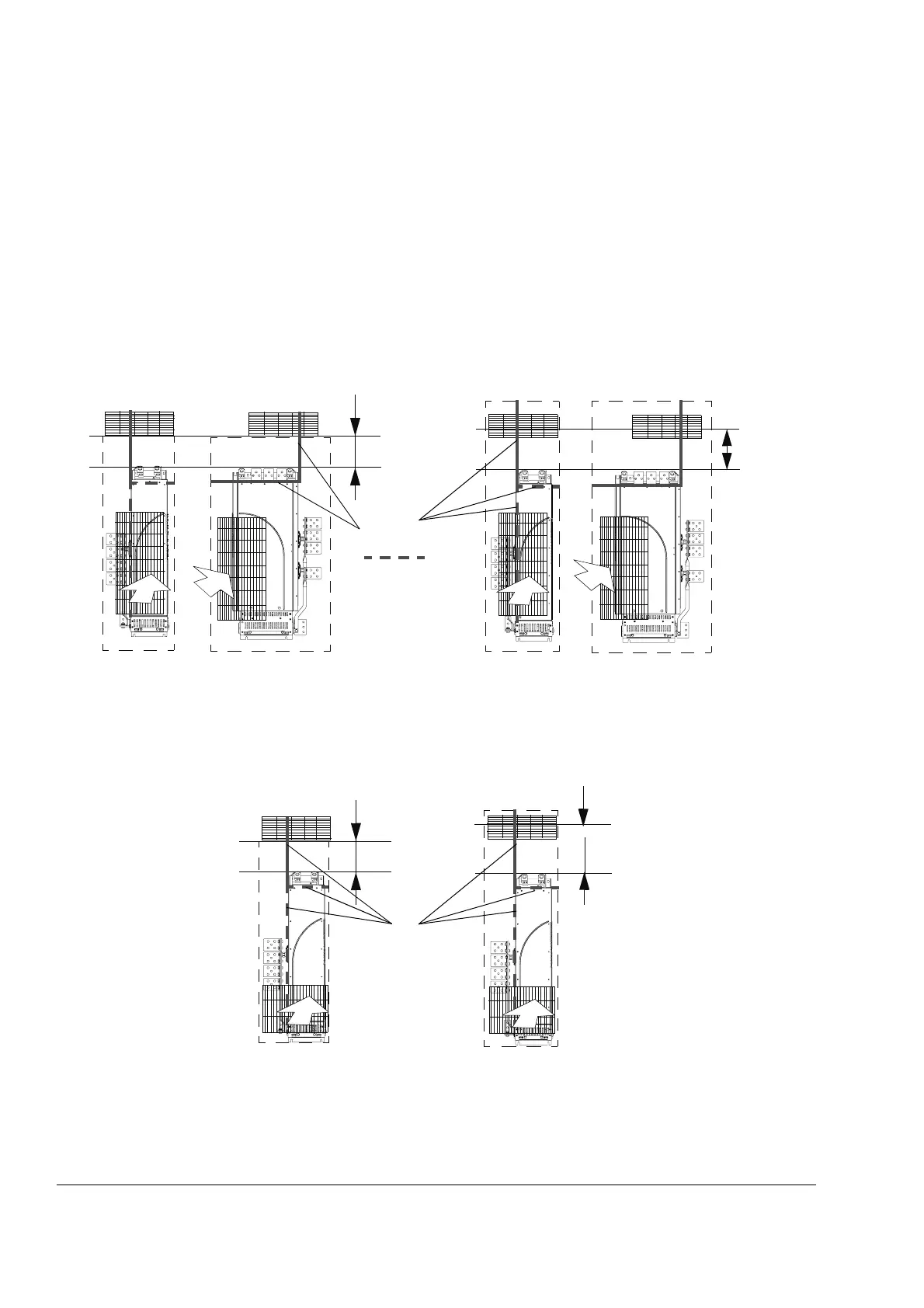

Required free space at the top of the module for frame sizes R7 and R8 is shown
below (views of frame size R7). Note: Air inlet gratings only at the lower part of the
cabinet door are not recommended without an extra fan. The air baffles are
examples.
300 mm
200 mm
(11.81 in.)
(7.87 in.)
Air outlet on the cabinet roof and
high air inlet gratings in the cabinet
door
Air outlet and high air inlet gratings in
the cabinet door
200 mm
(7.87 in.)
Air outlet on the cabinet roof and low
air inlet gratings in the cabinet door
Air outlet and low air inlet gratings in the
cabinet door
300 mm
(11.81 in.)
FlatBookshelf
Bookshelf Bookshelf
Air baffles
Air baffles
See also pages 31 and 32.
See also pages 31 and 32.
FlatBookshelf
not required if the
drive module
touches the
cabinet door
