Mechanical installation of non-pre-assembled units (ACS800-04M)
46
Required tools and tightening torques
• set of screw drivers
• torque wrench with a 500 mm (20 in.) or 2 x 250 mm (2 x 10 in.) long extension
bar
• 19 mm (3/4 in.) socket
for frame size R7: 13 mm (1/2 in.) magnetic-end socket
for frame size R8: 17 mm (11/16 in.) magnetic-end socket.

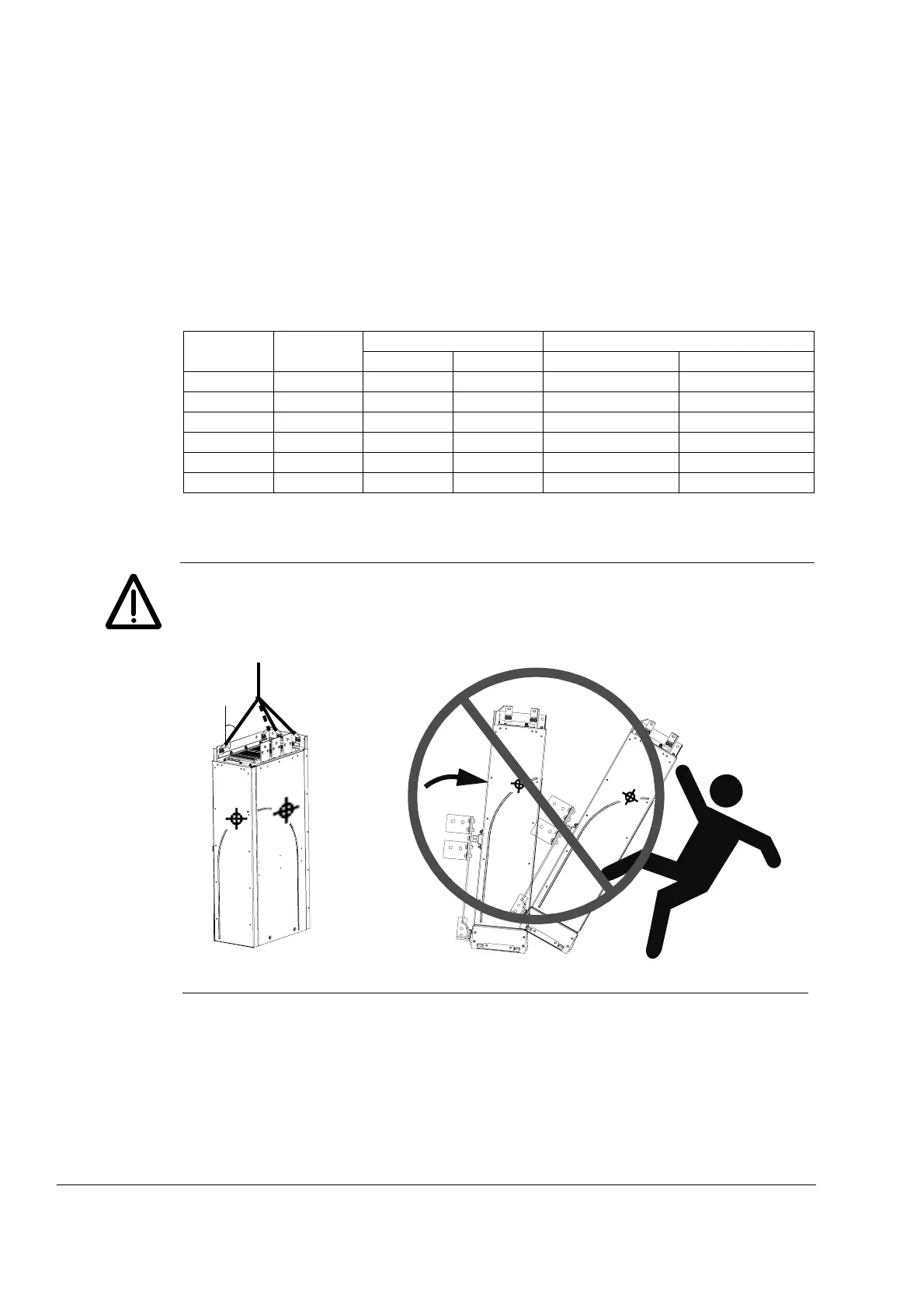

Moving and unpacking the unit
WARNING! The drive is heavy [frame size R7: 100 kg (220 lb), frame size R8:
200 kg (441 lb)]. Lift the drive using the lifting lugs attached to the top of the unit. Do
not tilt the drive. The centre of gravity of the unit is high. The unit will overturn
from a tilt of about 6 degrees. An overturning unit can cause physical injury.
Screw Grade Tool Tightening torque
mm in. Nm lbf ft
M4 8.8 7 2 1.46
M5 8.8 8 4
M6 8.8 10 6...9 3.7
M8 8.8 13 5/16 15...22 3.7
M10 8.8 17 3/8 30...44 22...32
M12 8.8 19 1/2 50...75 37...55
M
a
x
3
0
°
Do not tilt!
