AO2000-LS25 LASER ANALYZERS | OI/AO2000-LS25-EN REV. D 31
Software
NOTICE
Impairment of the device function and warranty.
Impairment of the device function and warranty by using non-
ABB-approved device firmware.
• The firmware may only be updated in coordination with
ABB Service.
• Use of device firmware not approved by ABB will void the
warranty.
Software for the analyzer consists of two programs:
• The device firmware hidden to the user and integrated in
the CPU electronics runs the micro controller on the CPU
card. The device firmware performs all necessary
calculations and self-monitoring tasks.
• The service program for Windows® running on a standard
PC connected through the RS-232 connection. The service
program enables communication with the device during
installation, service and calibration.
The operator will need to use the service program only during
installation and calibration and not during normal operation of
the device. See Parameterization of the device on page 51 for
more details.
Laser classification and warnings
WARNING
Risk of injury
Eye injury due to invisible laser radiation.
The device contains diode lasers of class 1 and 1M.
• Do not open when energized!
• Do not view directly with optical instruments!
The diode lasers used in the analyzer operate in the near infrared
(NIR) range between 700 and 2400 nm depending on the gas to
be measured.
Laser classes according to IEC 60825-1
• Laser Class 1M for sample component O
2
• Laser Class 1 for all other sample components
5 Product identification
Name plate
Note
The name plates displayed are examples. The device
identification plates affixed to the device can differ from this
representation.
Name plate ATEX / IECEx, Zone 1
Transmitter unit
Receiver unit
1
Manufacturer
2
Serial number
3
Production date
4
Ex marking
5
Power supply
6
Ambient temperature
7
Sample component
8
Warning: laser class 1
9
Warning: do not open while
energized.
0
Warning label, pressurized
enclosure
k
Purge parameters, pressurized
enclosure
l
Project number
m
Type designation / model
n
Production number

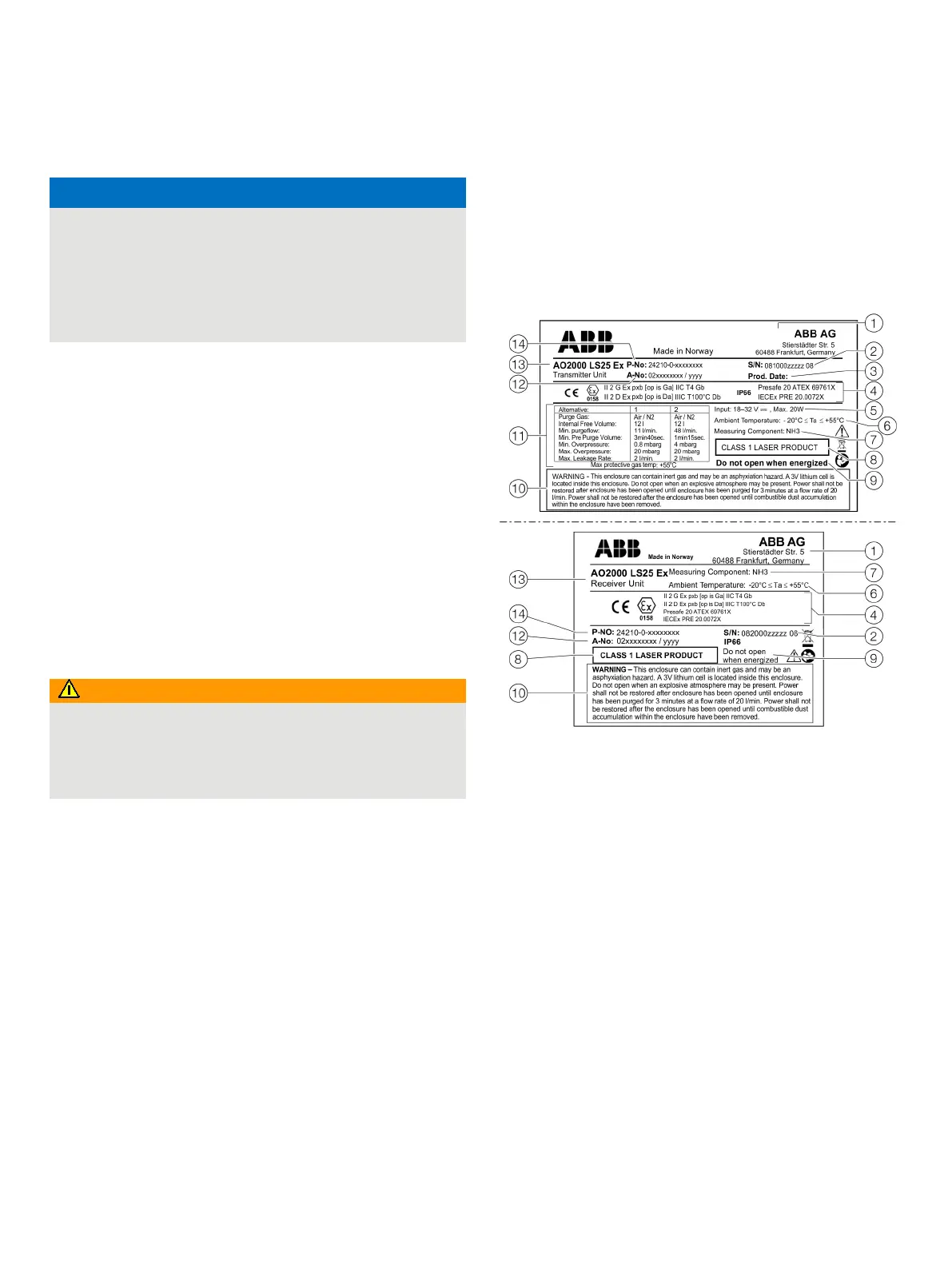

Figure 13: Name plate AO2000-LS25 (example, ATEX / IECEx version, Zone 1)
