Installation
25

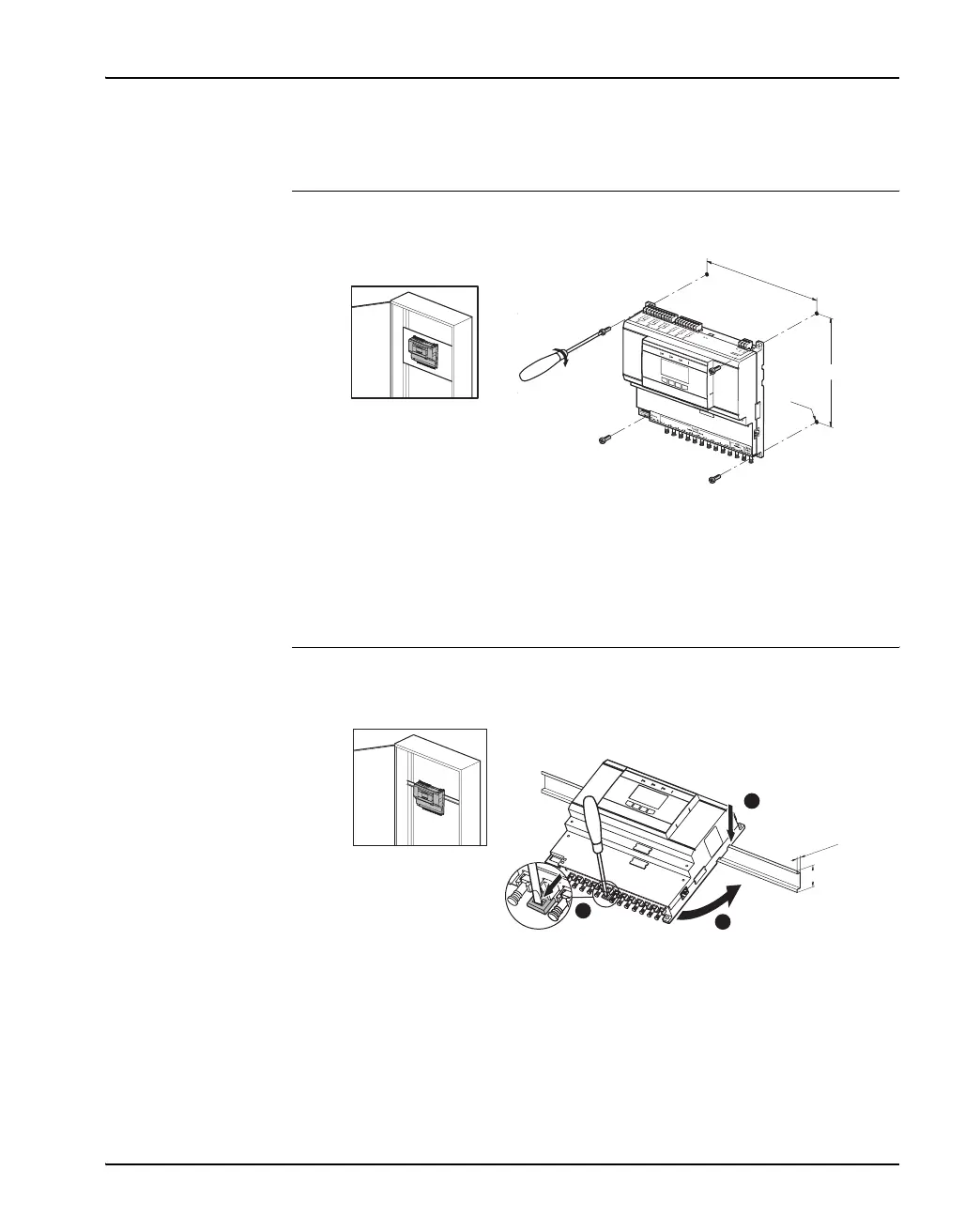

Mounting on wall Follow the steps below to mount the Arc Monitor on the wall:
1. Predrill holes in wall to fit screws 5M. See figure above for dimensions.
2. Place the Arc Monitor on the wall.
3. Screw in each corner of the monitor.
4. Use a torque wrench and torque the screws to 0,9 Nm.
Mounting on a DIN
rail
Follow this procedure to mount the Arc Monitor on a DIN rail:
1. Hook the Arc Monitor to the DIN rail.
2. Pull the barrier down, between detector 5 and 6.
3. Snap the Arc Monitor on to the rail then release the barrier.
0,9 Nm
217
187,5
M5
3
1
2
35
7,5 / 15
