ABB Arc Guard System TVOC-2 User Manual

Installation
37
Connecting the
Arc Monitor
Warning!
Make sure that supply voltage has been switched off!

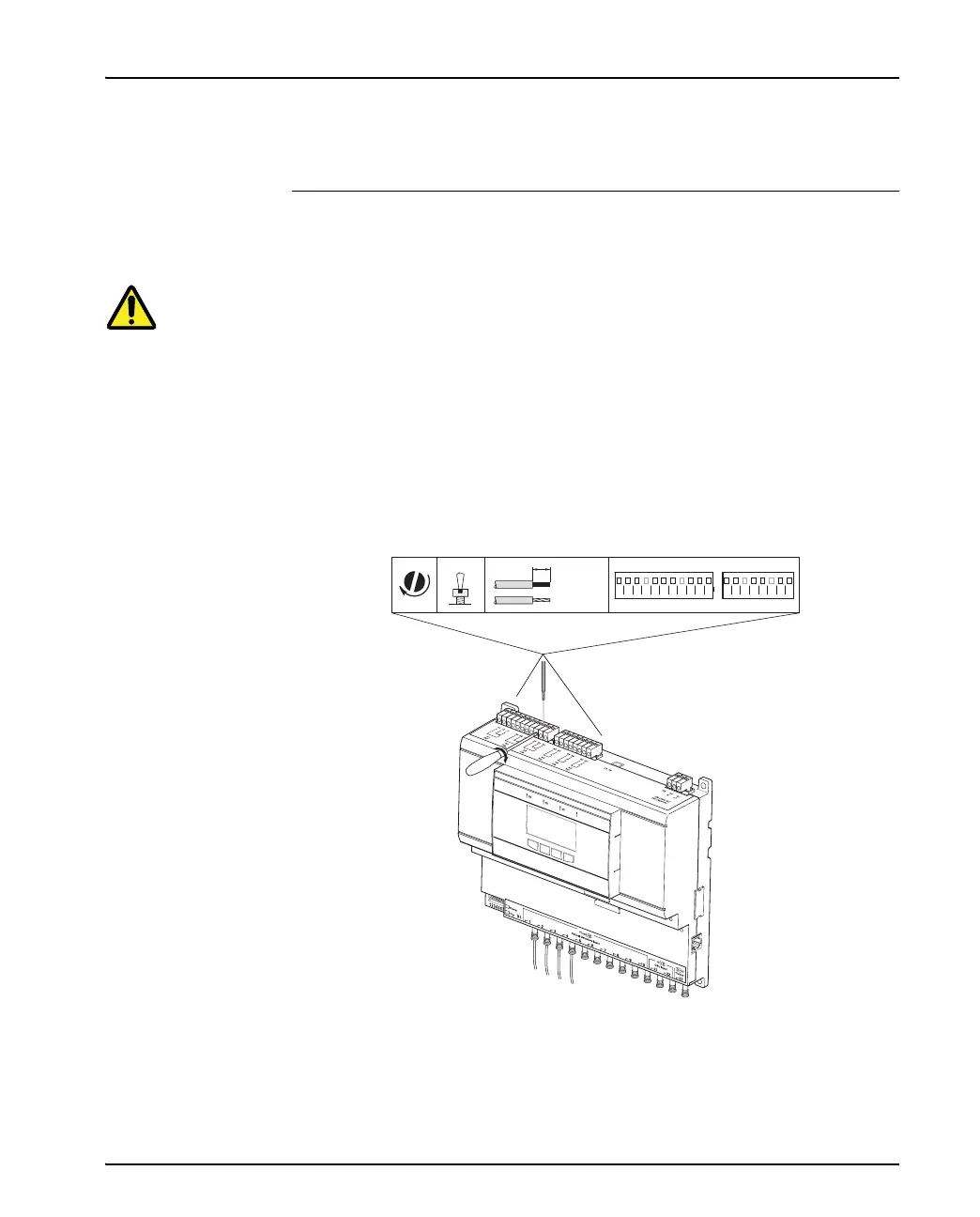

First connect the trip signal relays and trip contacts. Follow the steps below:
1. Connect wires for Internal Relay Fault, IRF, trip signal relays (K2, K3) and trip
contacts (K4, K5, K6).
2. Use a torque of 0.5 NM
3. Use a screwdriver 2.5 x 0.6 mm (0.98 x 0.23 inches)
4. Cabel area 0.2 - 2.5 mm² (0.078 x 0.98 inches²).
0,5 Nm
2,5x0,6
7
0,2 ... 2,5 mm
2
0,2 ... 2,5 mm
2
14
12 11
24
22 21
34
32 31 43 44 53 54 63 64
