Installation
40

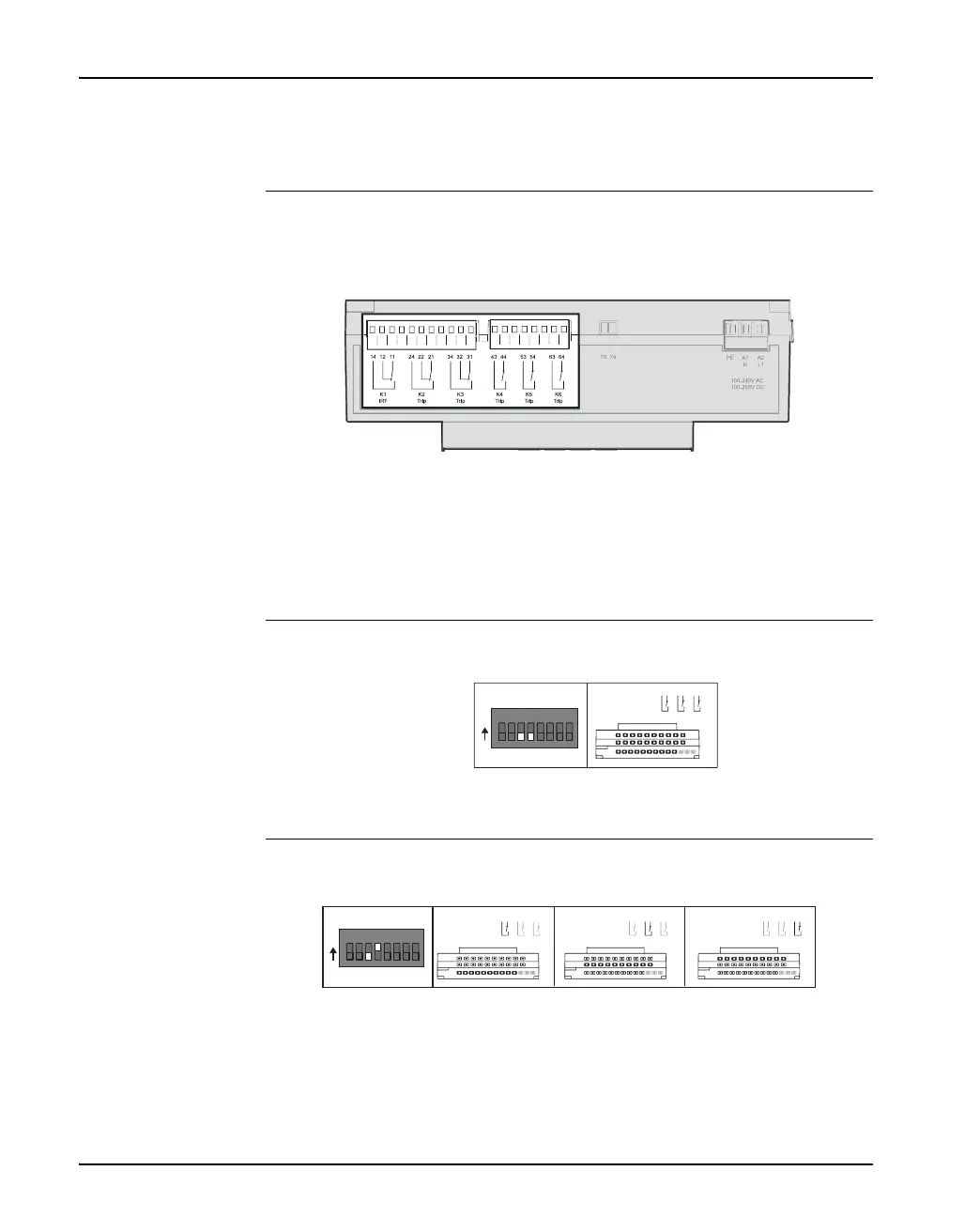

Breaker trip The trip contacts are located on top of the Arc Monitor.
Se figure below.
DIP switches 3 and 4 configure trip contacts, K4, K5 and K6.
All detectors , X1, X2 and X3, operate the trip signal relays K2 and K3.
Adjust the DIP switches to achive the desired breaker configuration K4, K5,
K6.
DIP switches 3
and 4 to position 0
DIP switches 3 and 4 in position 0 is the default state (factory settings).
• Any detector on X1, X2 or X3 operates trip contacts, K4, K5 and K6.
DIP switch 3 in
position 0, DIP
switch 4 to posti-
otion ON
Set DIP switch 3 to position 0 and DIP switch 4 to position ON.
• Detectors X1 operate trip contact K4.
• Detectors X2 operate trip contact K5.
• Detectors X3 operate trip contact K6.
O
N
1
2 34567
8
X1
X2
X3
43
K4
Trip
44 53
K5
Trip
54 63
K6
Trip
64
O
N
1
2 34567
8
X1
X2
X3
X1
X2
X3
X1
X2
X3
43
K4
Trip
44 53
K5
Trip
54 63
K6
Trip
64
43
K4
Trip
44 53
K5
Trip
54 63
K6
Trip
64
43
K4
Trip
44 53
K5
Trip
54 63
K6
Trip
64
