Human Machine Interface, functions
69
3.2 View DIP
switches
3.2 View DIP switches display information how the configuration are made to
the DIP switches. To see the View DIP switches do the following steps:
1 From Start window, press Menu.
2 Select 3. Configuration, press OK.
3 Select 3.2 View DIP Switch, press OK.
The 3.2 View DIP menu displays:
• 3.2 View DIP.
• DIP switches settings.
• Status line.

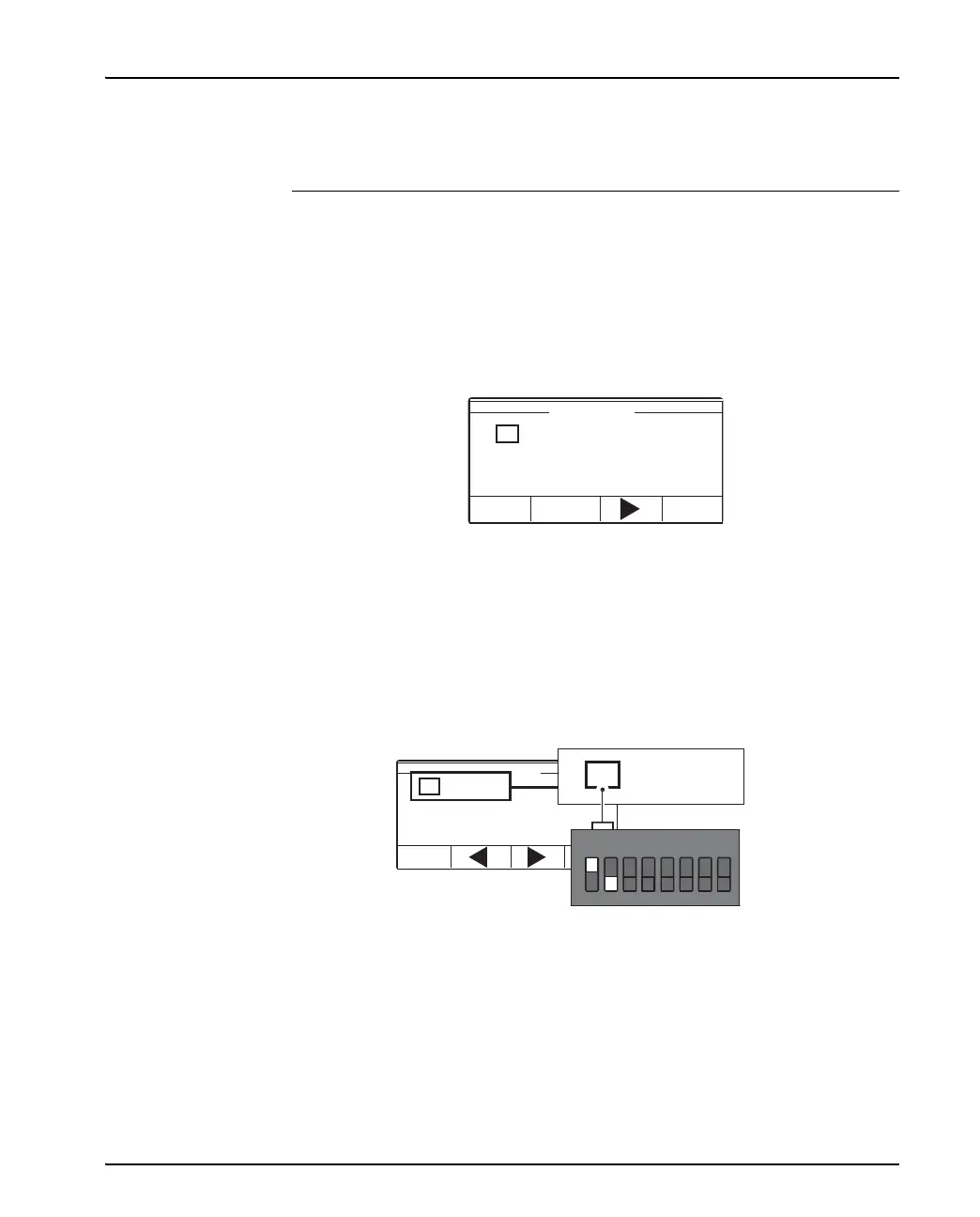

The figure below is an example which describes how to read the DIP
switches settings in HMI.
The eight numbers reflect the 8 DIP switches.
The two first numbers 1 0, in line are the CSU connections on the DIP switch.
Number 1 in number 10 shows that the setting is ON.
This example shows that the CSU connection 21 is connected. CSU 22 is
not in use.
4 Press arrow to scroll forward/backward, see all DIP switches.
3.2 View DIP
Back
CSU 21 active
10 10 01 00
3.2 View DIP
Back
CSU 21 active
10 10 01 00
10 10 01 00
1
2 34567
8
