T
echnical dat
a
76

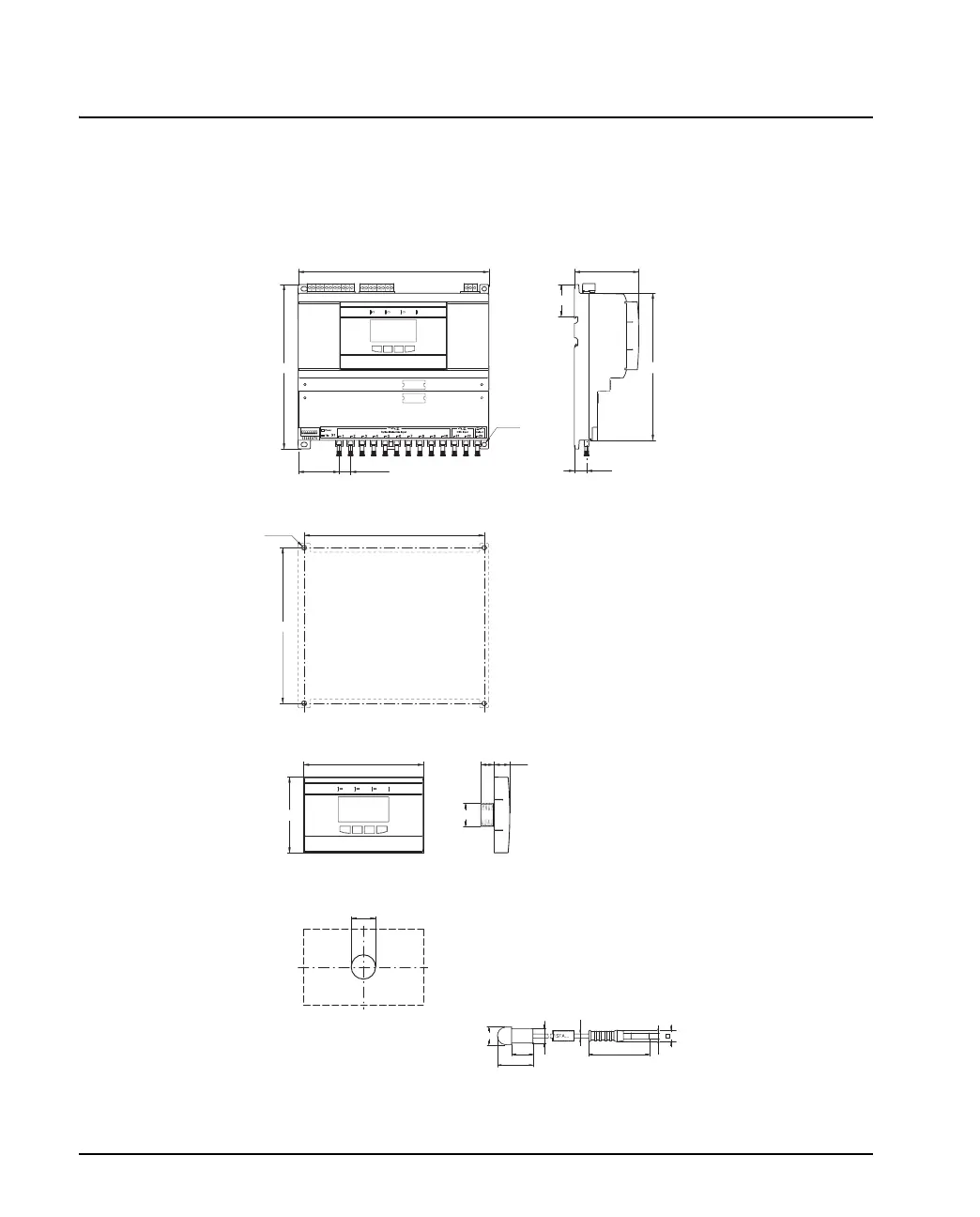

Dimensions
Ø5,5
187,5
217
Drilling plan
For M5
230
77
14,7
49,5
12 x 13,9
38,5
198
177
16,5
15
130
82
M25
Ø25,5
Drilling plan
12
20
Ø10
Ø3
5,8
Ø8
Ø2,2
30,5
Arc Monitor
HMI
Detector with optical cable
77
79
Table of Contents
default chapter
3
Table of Contents
3
Chapter 1: About Arc Guard System
9
Introduction
9
Chapter 2: Safety
11
Introduction
11
Applicable Safety Standards
12
Safety Standards
12
Safety Signs
14
General
14
Warning
14
Note
14
Work in Safety Manner
15
Safety Manner
15
Handling the Arc Monitor
15
Storage
16
Limitation of Liability
16
Chapter 3: Arc Monitor Functions
17
Introduction
17
Overview of Arc Monitor
18
1: Arc Monitor
19
2: Human Machine Interface, HMI
19
4: DIP Switch
20
5: Detector Inputs
20
6: Current Sensing Unit Input
20
7: Current Sensing Unit Output
20
8: External HMI Connection
20
10: Solid State Tripping Contacts
21
11: Signal Relays
21
12: Detectors
21
13: Extension
22
Chapter 4: Installation
23
Introduction
23
Installation Procedure
23
Prerequisites
23
Tools Required
24
Mounting and Connecting the Arc Monitor to the System
24
Getting Started
25
Introduction
25
Receiving and Checking
25
List of Contents
25
Intermediate Storage
25
Mounting
26
Introduction
26
Placing Arc Monitor
26
Mounting Arc Monitor
26
Mounting on Wall
27
Mounting on a DIN Rail
27
Mounting the HMI
28
Mounting the HMI on Door
28
Mounting the Optical Detector
29
Example 1, Positioning Optical Detector in a Switch Gear
30
Example 2, Mounting Optical Detector in an Apertures Cubicle
31
Example 3, Mounting in a Cir- Cuit Breaker Cubicle
32
Connecting Optical Detectors
34
Connecting Extension Module (Option)
35
Connecting CSU Cable
36
Electrical Connections
37
Introduction
37
Connecting HMI
37
Connecting Optical Detector
37
Connecting Extension Module (Option)
37
Connecting Current Sensing Unit (Option)
37
Electrical Connections
38
Connecting the Arc Monitor
39
Configurations
41
Introduction
41
DIP Switches
41
Breaker Trip
42
DIP Switch 3 in Position 0, DIP Switch 4 to Postiotion on
42
DIP Switch 3 to Position on and DIP Switch 4 to Position
43
DIP Switches 1, 2, 3 and 4 to Position on
43
Manual/Auto Reset Configuration
44
Current Sensing Unit(Option)
45
No CSU Connected
45
One (1) CSU Connected
46
Two (2) CSU Connected
46
Power on to the Arc Monitor
47
Checking Power on Arc Monitor
47
Add/Remove Module from the Arc Monitor or Changing Configuration
48
Settings
49
Introduction
49
Start-Up Sequence
49
Step 1: Setting Menu Language
49
Available Languages
50
Step 2: Setting Time
50
Step 3: Confirming Connected Modules
50
Step 4: Checking DIP Switches
51
Step 5: Final Confirmation
52
Controlling
53
Introduction
53
Testing the Installation
53
Chapter 5: Maintenance
55
Introduction
55
Maintenance
55
Chapter 6: Trouble Shooting
57
Introduction
57
Requirements
57
Troubleshooting
57
Handling Error Log
57
Diagnostics
57
Error Event
57
Error Log
58
Error Indication
58
Attending Errors
58
Viewing Error Log
59
List of Error Codes
59
ABB Support
62
Introduction
62
Contact Information
62
Providing Information
62
Chapter 7: Human Machine Interface, Functions
63
Introduction
63
Prerequisites
63
Overview HMI Module
64
1: LED Signals
64
2: HMI Display
65
3: Soft Keys
65
HMI Menu Structure
65
Menu and Languages
65
HMI Start Menu
65
Trip Log
66
Trip Notification Window
66
Checking the Trip Log
67
Diagnostics
67
2.1 System Status
68
Perform Diagnostics
68
Error Log
69
Configuration
70
3.1 View Modules
70
View DIP Switches
71
Revision Information
72
Language
73
Set Time and Date
73
Factory Reset
73
Chapter 8: Technical Data
75
Dimensions
78
Applications, Diagrams
79
Circuit Diagrams
81
Chapter 9: Ordering List
83
