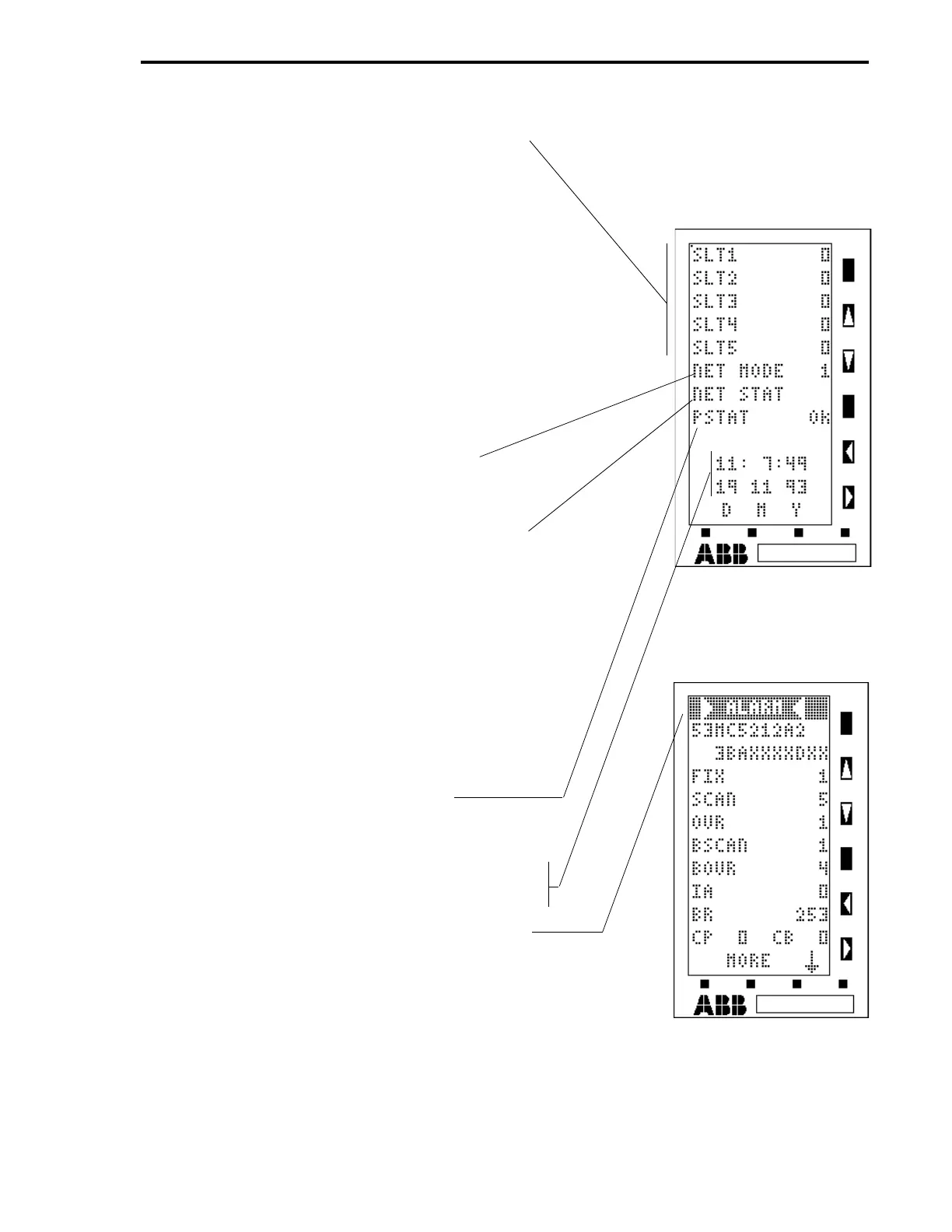

Figure 4-2. Display 2 - System Status (Sheet 2 of 2)
EXPANSION BOARD OPTION SLOT CONTENTS
(DATAPOINTS ARE: SLT1 - B095, SLT2 - B096,
SLT3 - B097, SLT4 - B098, SLT5 - B099.) INDEX
VALUES ENTERED IN THESE OPTION SLOT
DATAPOINTS CAN BE AS FOLLOWS:
128 = MICROLINK CARD OCCUPIES SLOT,
129 = AUXILIARY PROCESSOR BOARD IN SLOT,
1 = 6 DIGITAL INPUT/4 DIGITAL OUTPUT CARD, 2
= SINGLE CHANNEL ANALOG INPUT [AI8]
CARD OCCUPIES THE SLOT,
3 = MULTICHANNEL ANALOG I/O CARD IN SLOT,
4 = 16 DIGITAL INPUT/ DIGITAL OUTPUT CARD,
5 = HART MODEM OPTION CARD IN SLOT.
(ADDITIONAL CARD ID’S ARE IDENTIFIED IN THE
DOCUMENTATION RELEASED WITH THE
OPTION.)
MicroLink NETWORK MODE (B448) (0 - 2
MBIT/SEC, 1 - 1 MBIT/SEC, 2 - 0.5 MBIT/SEC, AND
3 - 0.25 MBIT/SEC.)
MicroLink NETWORK STATUS (CAN BE AB, A, B,
OR BLANK. AB - INDICATES EITHER MicroLink
NETWORKS A OR B CAN COMPLETE ALL OF THE
EXTERNAL I/O TABLE TASKS. A - INDICATES
ONLY NETWORK A CAN COMPLETE ALL OF THE
EXTERNAL I/O TABLE TASKS.
B - INDICATES ONLY NETWORK B CAN
COMPLETE ALL OF THE EXTERNAL I/O TABLE
TASKS. A BLANK FIELD INDICATES BOTH, A
AND B, ARE REQUIRED TO COMPLETE ALL OF
THE NETWORK TASKS; THEREFORE, PSTAT CAN
STILL BE OK BECAUSE THE TASKS ARE BEING
COMPLETED, BUT BY BOTH NETWORKS.)
PSTAT (OK - INDICATES ALL OF THE
CONFIGURED TASKS IN THE EXTERNAL I/O TA-
BLE ARE BEING COMPLETED.)
HOURS:MINUTES:SECONDS (B259, B258, B257)
DAY MONTH YEAR (B260, B261, B262)
HORN OVERLAY - (CONTENTS OF A009 ARE
’wALARMx’, L065 = 1, AND L063 = 0 TO ALLOW
CONTENTS OF A009 TO BE SUPERIMPOSED
OVER DISPLAY. IF ’ALARM’ IS ENTERED IN A009
WITHOUT THE ’w’ AND ’x’, THEN BRACKET
POINTS DO NOT APPEAR IN OVERLAY.)
Section 4. Operator Displays
4-7
