NOTE; BRACKETS [XXXX] CONTAIN DATA SHOWN IN RECTANGLES ON
THE DISPLAY.
DI1 - RATIO ENABLE
AI2 - ADDITIVE FEED FORWARD
AIO - CONTROLLED VARIABLE
DI0 - FORCE OUTPUT TRACKING
AI1 - WILD VARIABLE
DO0 - PROCESS ALARM 1
DO1 - PROCESS ALARM 2
AO1 - NOT USED
AO0 - CONTROL OUTPUT
AI3 - TRACKING INPUT
(CONTACT OUTPUT INVERT [L289])
(CONTACT OUTPUT INVERT [L288])
(CONTACT INPUT INVERT [L264])
(CONTACT INPUT INVERT [L265])
ALARMS RELATED DATAPOINTS
CONTROL ALARM MODE (B335)
0 - HIGH/LOW
1 - NONE
2 - HIGH/NONE
3 - NONE/LOW
4 - HIGH/HI-HI
5 - LOW/LO-LO
6 - HI SP DEVIATION/LO SP
DEVIATION
ALARM LIMIT 1 (C103)
ALARM LIMIT 2 (C104)
ALARM DEAD BAND (C105)
OUTPUT RELATED DATAPOINTS
AO0 0-20 mA OUTPUT (L472)
MANUAL FALLBACK DISABLE (L120)
HARD MANUAL LIMIT (L122)
OUTPUT HIGH LIMIT (C109)
OUTPUT LOW LIMIT (C110)
OUTPUT SLEW RATE (C118)
CON0 CONTROL RELATED DATA-
POINTS (SEE SECTION 16, TUNING,
OR SECTION 17, EASY-TUNE, TO
TUNE PID DATAPOINTS)
PROPORTIONAL BAND (C106)
RESET TIME (C107)
RATE TIME (C108)
MANUAL RESET (C111)
REVERSE SWITCH (L106)
AUTO ENABLE (L114)
CONTROLLER SPAN (C115) [100]
CONTROLLER LOWER RANGE
(C116) [0]
ADDITIVE FEED FORWARD
RELATED DATAPOINTS
AI2 ENGINEERING SPAN (C258)
AI2 ENGINEERING ZERO (C278)
AI2 DIGITAL FILTER INDEX (B271)
AI2 0-5 V INPUT (L418)
AI2 SQUARE ROOT SIGNAL (L442)
SETPOINT RELATED DATAPOINTS
CONTROL ZONE (C114)
SETPOINT HIGH LIMIT (C125)
SETPOINT LOW LIMIT (C126)
SETPOINT SLEW RATE (C117)
CONTROLLED VARIABLE
RELATED DATAPOINTS
AI0 ENGINEERING SPAN (C256)
AI0 ENGINEERING ZERO (C276)
AI0 DIGITAL FILTER INDEX (B269)
AI0 0-5 V INPUT (L416)
AI0 SQUARE ROOT SIGNAL (L440)
MISCELLANEOUS DATAPOINTS
(SHOWN IN RECTANGLES ON THE
DISPLAY)
CONTROL TAGNAME (A000)
[CON-0]
ENGINEERING UNITS (A001)
[PERCENT]
REVERSE VALVE (L109) [C] [O]

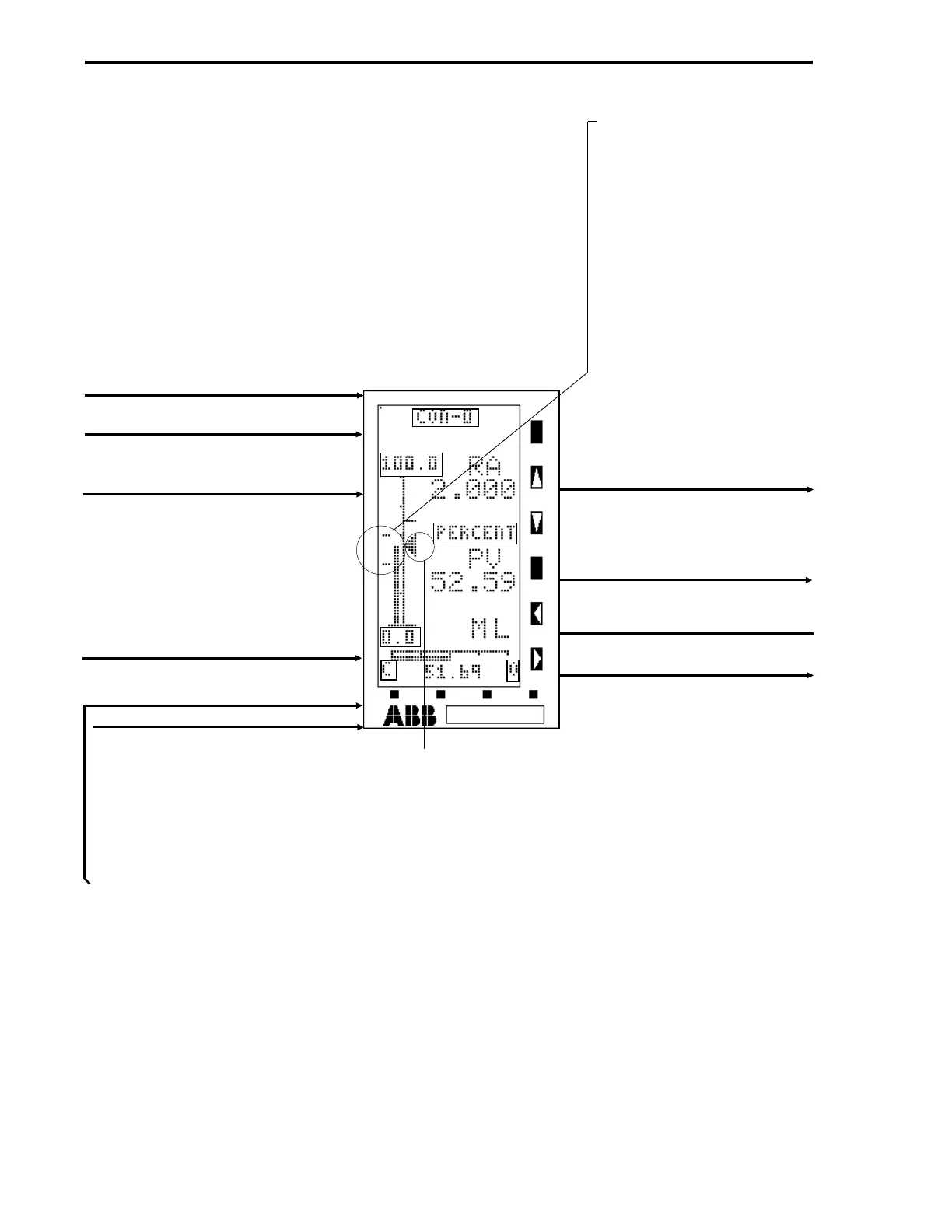

Figure 8-2. CS3 Ratio Controller Datapoints
OUTPUT TRACKING RELATED
DATAPOINTS
ENABLE OUTPUT TRACKING (L119)
AI3 ENGINEERING SPAN (C259)
AI3 ENGINEERING ZERO (C279)
AI3 DIGITAL FILTER INDEX (B272)
AI3 0-5 V INPUT (L419)
AI3 SQUARE ROOT SIGNAL (L443)
WILD VARIABLE
RELATED DATAPOINTS
AI1 ENGINEERING SPAN (C257)
AI1 ENGINEERING ZERO (C277)
AI1 DIGITAL FILTER INDEX (B270)
AI1 0-5 V INPUT (L417)
AI1 SQUARE ROOT SIGNAL (L441)
53MC5000 Process Control Station
8-4
