To Next Page

To Previous Page

SealIn = On

All UL < USealIn<

Any UL < UsealIn<

5 s

AND

MCBOP

All UL > UsealIn<

60 s

CBCLOSED

BLOCK

AND

TEST

TEST ACTIVE

AND

BlocFuse = Yes

OpMode

AND

200 ms

AND

DISCPOS

BLKU

BLKZ

AND

FuseFailDetZeroSeq

UZsIZs OR UNsINs

UZsIZs AND UNsINs

UZsIZs

UNsINs

OptimZsNs

AND

FuseFailDetNegSeq

AND

CurrZeroSeq

CurrNegSeq

a>b

AND

FuseFailDetDUDI

AND

OpDUDI = On

DeadLineDet1Ph

AND

VoltZeroSeq

VoltNegSeq

5 s

AllCurrLow

150 ms

intBlock

Fuse failure detection

Main logic

BLKTRIP

AND

100 ms

20 ms

IEC10000033-2-en.vsd

FusefailStarted

IEC10000033 V2 EN-US

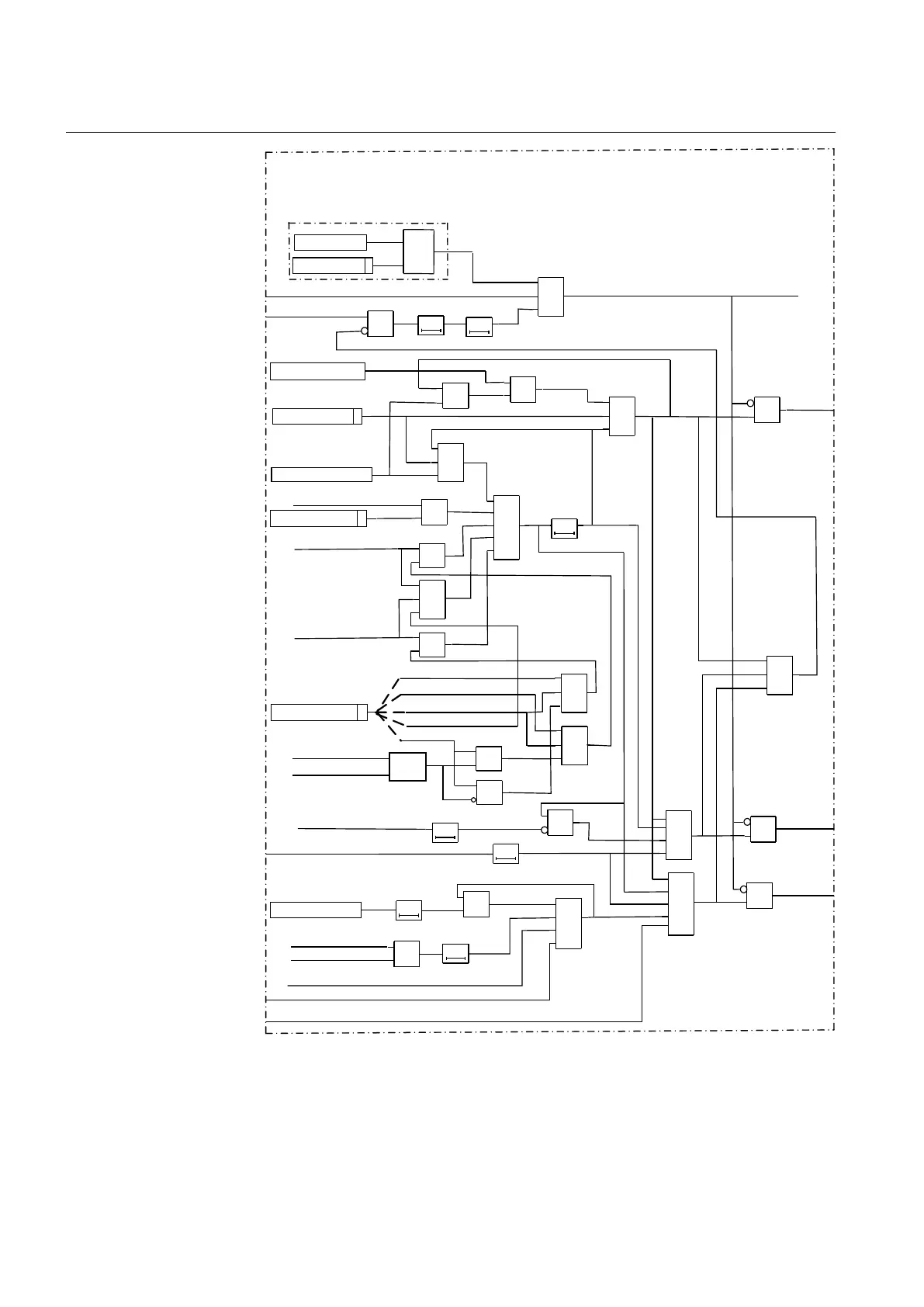

Figure 165: Simplified logic diagram for fuse failure supervision function, Main

logic

Section 10 1MRK 506 382-UEN A

Secondary system supervision

330 Line distance protection REL650 2.2 IEC

Technical manual

Default Chapter7
