IEC99000503 V3 EN-US

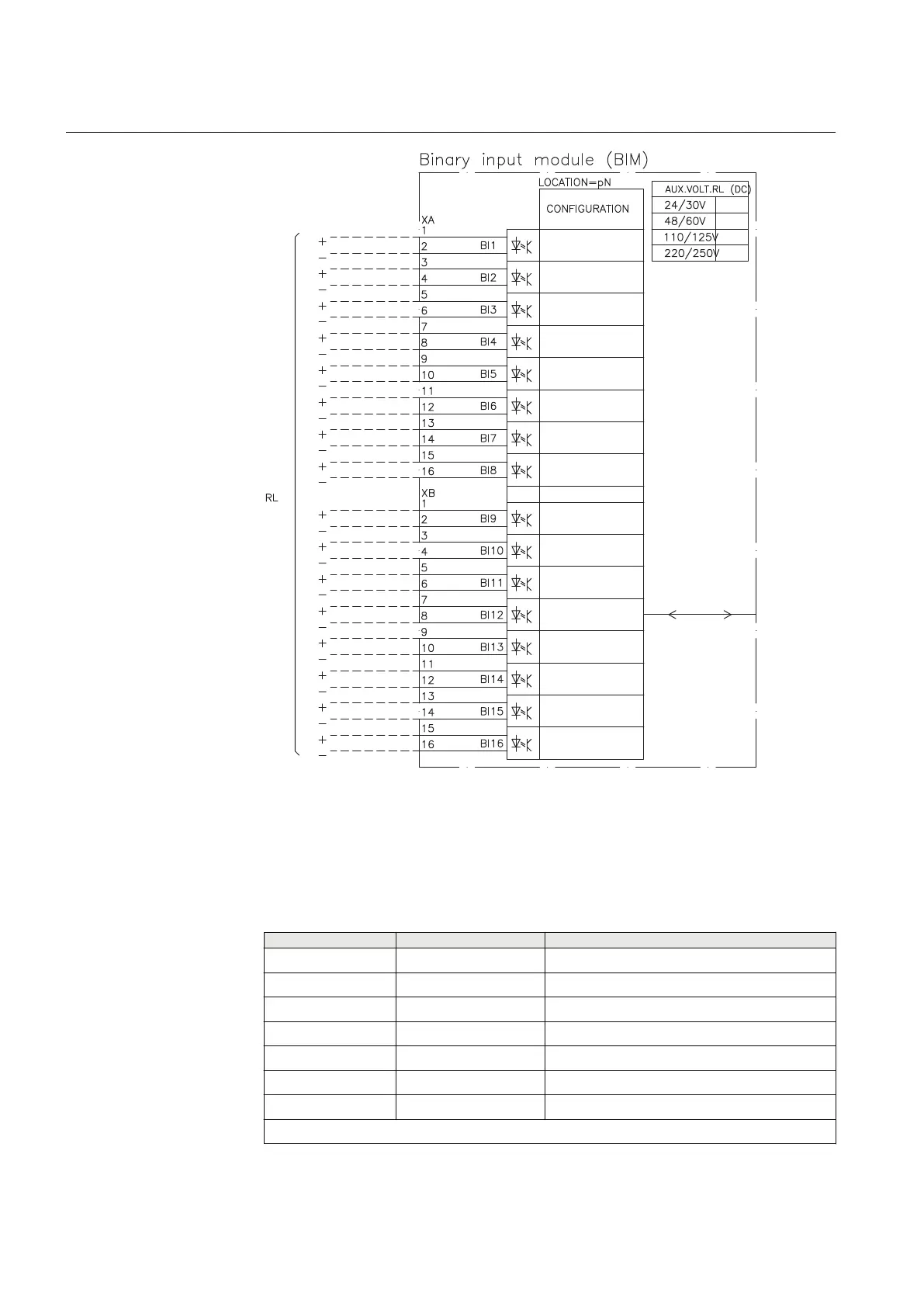

Figure 402: Connection diagram

20.2.7.3 Signals

PID-6435-OUTPUTSIGNALS v5

Table 635: BIM Output signals

Name

Type Description

STATUS BOOLEAN Binary input module status

BI1 BOOLEAN Binary input 1 value

BI2 BOOLEAN Binary input 2 value

BI3 BOOLEAN Binary input 3 value

BI4 BOOLEAN Binary input 4 value

BI5 BOOLEAN Binary input 5 value

BI6 BOOLEAN Binary input 6 value

Table continues on next page

Section 20 1MRK 506 382-UEN A

IED hardware

844 Line distance protection REL650 2.2 IEC

Technical manual
