5.5 Operation principle

5.5.1 Local HMI

AMU0600442 v14

IEC13000239-3-en .vsd

IEC13000239 V3 EN-US

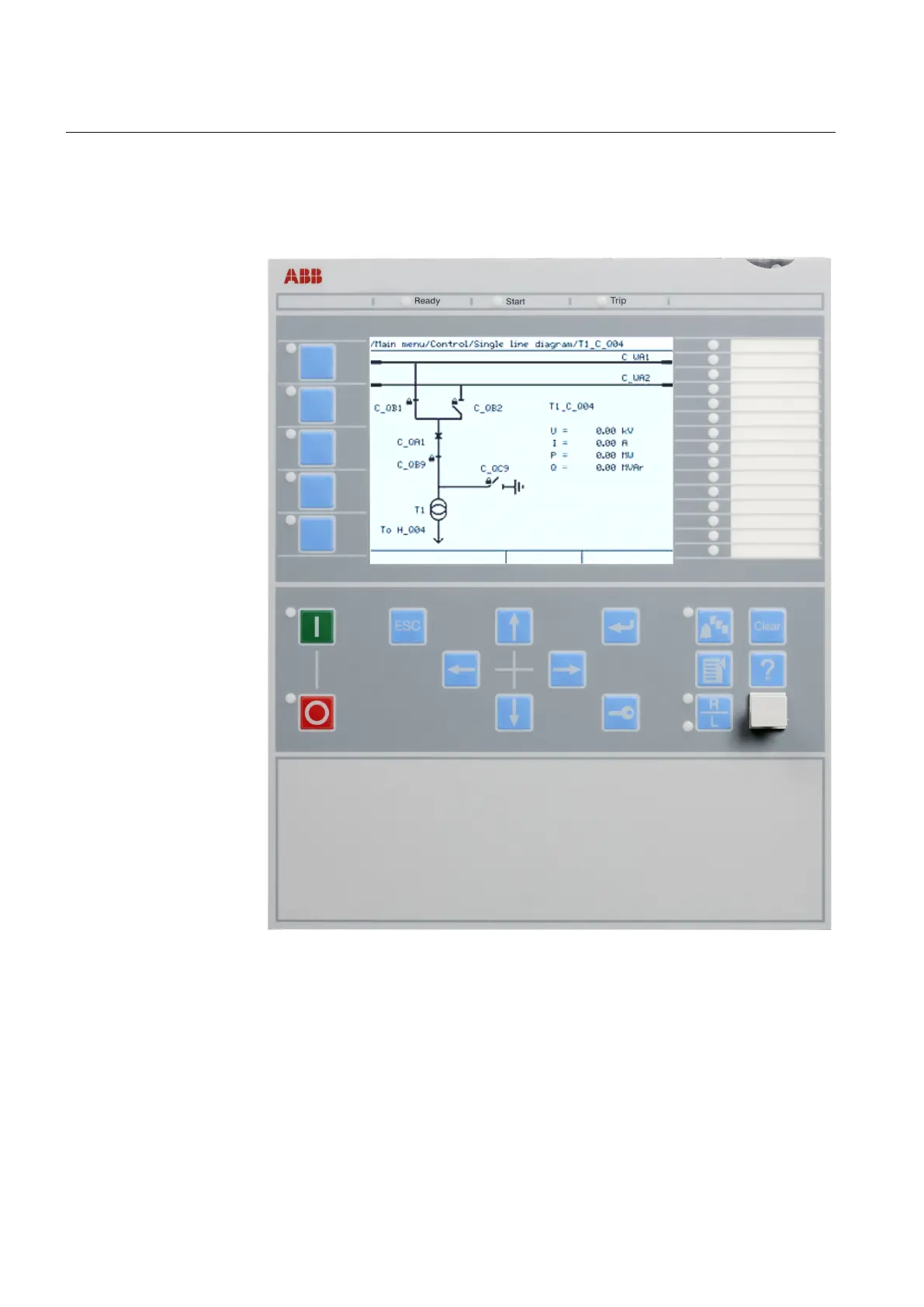

Figure 7: Local human-machine interface

The LHMI of the IED contains the following elements:

• Keypad

• Display (LCD)

• LED indicators

• Communication port for PCM600

Section 5 1MRK 506 382-UEN A

Local Human-Machine-Interface LHMI

68 Line distance protection REL650 2.2 IEC

Technical manual
