1SDH002031A1002 ECN000092998 Rev. B SACE Tmax XT2 – XT4 | 166
Output
Ekip Touch can be configured in such a manner that the contacts of each output are closed or
open according to one or more events, with different programming options (see Menu on page
166)).
The output of each module consists of 2 contacts (K11-K12 and K13-K14 for model 2K-1; K21-
K22 and K23-K24 for model 2K-2; K31-K32 and K33-K34 for model 2K-3), insulated from unit
and from the other outputs, which have the following electrical characteristics:
Characteristics
Maximum limit
(NOTE)
Maximum switchable voltage
150 VDC / 250 VAC.
Switching power
2 A @ 30 VDC, 0.8 A @ 50 VDC, 0.2 A
@ 150 VDC, 4A @ 250 VAC
Dielectric strength between open contacts
1000 VAC (1 minute @ 50 Hz)
Dielectric strength between each contact and coil
1000 VAC (1 minute @ 50 Hz)
NOTE: data on a resistive load

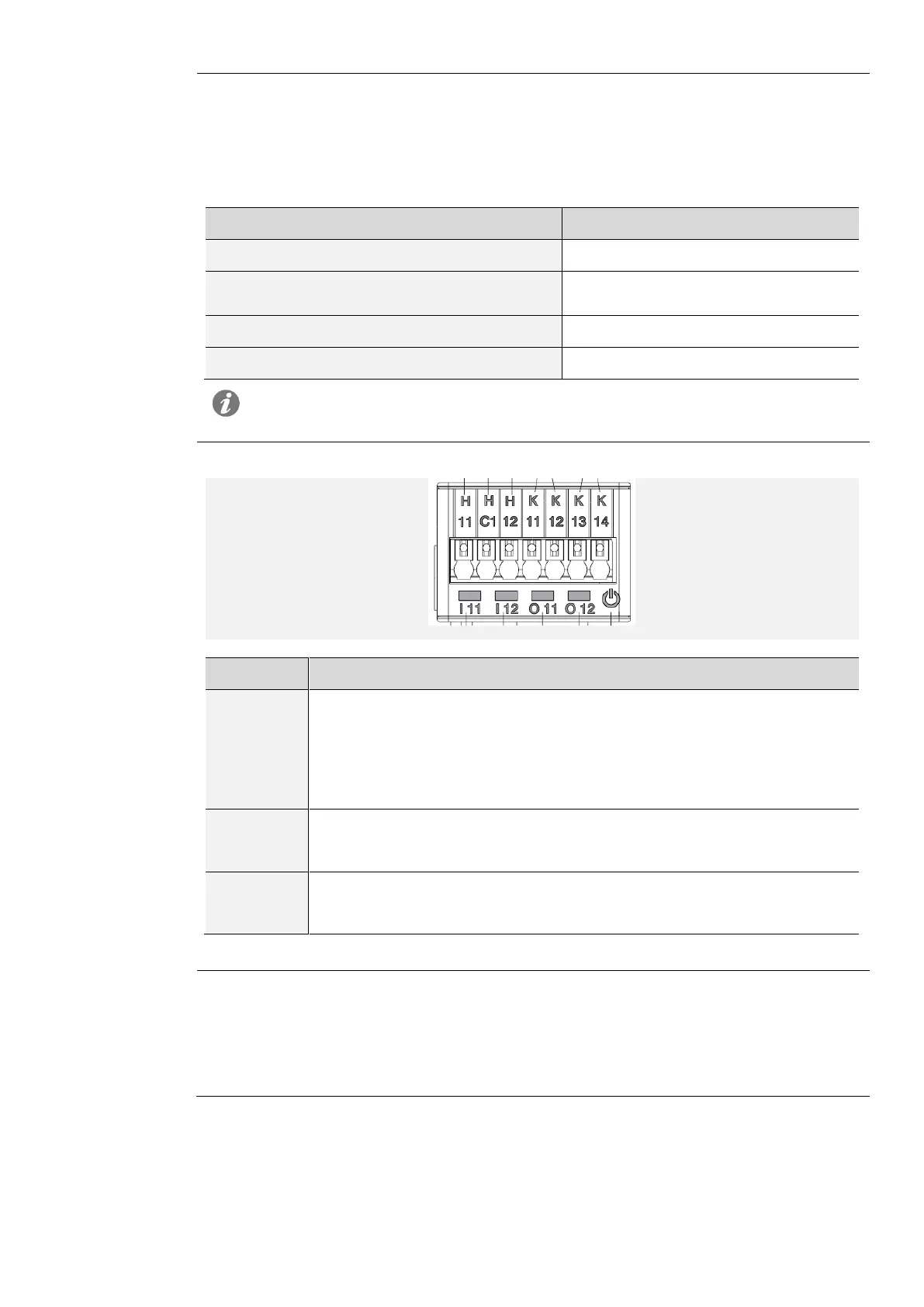

Interface
The module has three signalling LEDs:
Figure 43
LED
Description
Power
Reports ON status and correct communication with Ekip Touch:
 off: module off
 fixed or flashing light synchronized on power LED of Ekip Touch: module
ON and communication with Trip unit present
 flashing not synchronized with power LED of Ekip Touch (two fast flashes
per second): module ON and communication with Trip unit absent
I 11, I 12
Indicate status of the contacts of each output:
 off: open contact
 on: closed contact
O 11, O 12
Indicate status of the contacts of each input:
 off: circuit open
 on: short circuit
Menu
If the Ekip Signalling 2K module is detected correctly by Ekip Touch the specific configuration
area in the Modules Settings menu is activated.
For each Ekip Signalling 2K module detected by Ekip Touch, a specific menu is available
containing the submenus of all the available and configurable inputs and outputs.
