5-44
Service and Maintenance
RTC Battery Removal
Prerequisite
:
Upper Case Re
moval
on pa
ge
5-36
1.

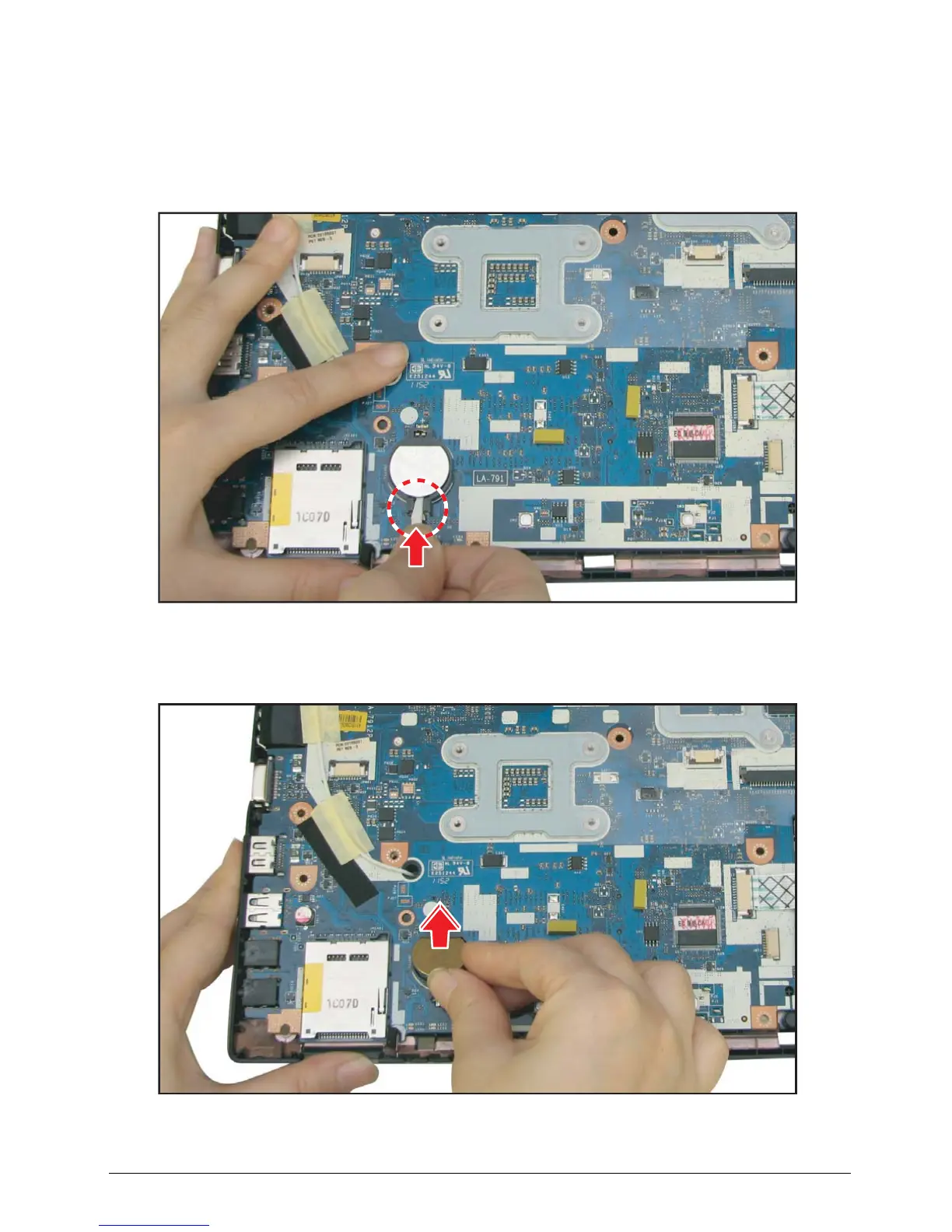

Using the plastic pry
, push to release the RTC battery from its slot.
Figure 5:62. Remo
ving the RTC Batte
ry (1 of 2)
2.
Remove the RTC battery
.
Figure 5:63. Remo
ving the RTC Batte
ry (2 of 2)
