5-108
Service and Maintenance
Microphone Module Removal
Prerequisite
:
LCD Panel Removal
on p
age
5-94

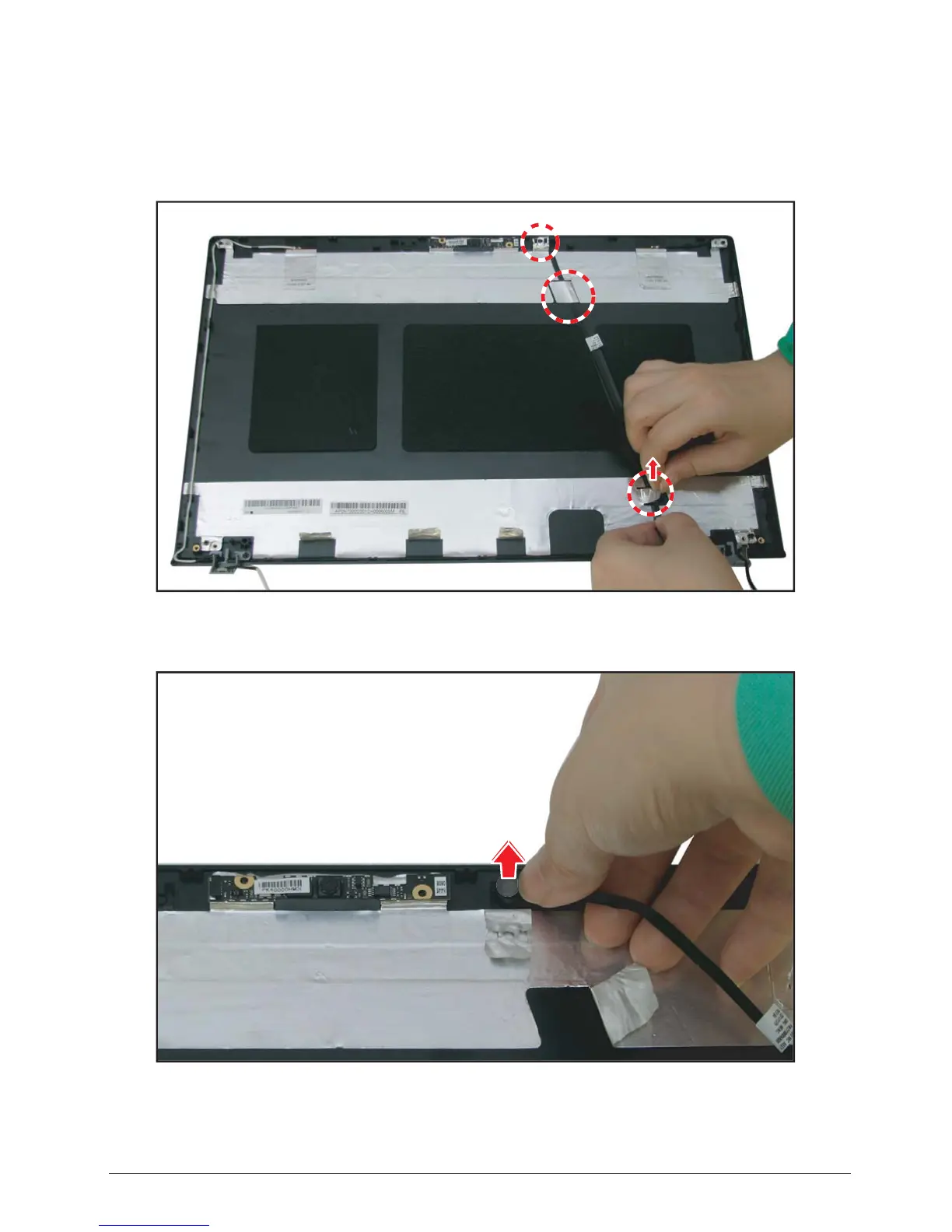

1.
On the LCD cover
, remove the metallic
tape securing th
e microphone cable.
Figure 5:165. Removing th
e Microphone Module (1 of 2)
2.
Lift to re
move the microphone from the slot on the LCD cover
.
Figure 5:
166. Remo
ving the WL
AN Antenna
s (2 of 2)
200
202
Table of Contents
Default Chapter
2
Table of Contents
2
Revision History
5
Chapter 1. Hardware Specifications and Configurations
9
Features
9
Privacy Control
10
Hard Drive
10
Audio Subsystem
10
Special Keys and Controls
11
Dimensions and Weight
11
Power Adapter and Battery
12
Optional Accessories
12
Notebook Tour
13
Top View
13
Front View
14
Left View
15
Right View
16
Base View
17
Touchpad Basics
18
Keyboard Basics
19
Windows Key
20
Hotkeys
21
System Block Diagram
22
Specifications Table
23
Chapter 2. System Utilities
44
BIOS Setup Utility
44
Navigating the Bios Setup Utility
44
Bios
45
Information
45
Main
47
Security
48
Setting a Password
49
Changing a Password
50
Removing a Password
51
Boot
52
Exit
53
Boot Manager
54
BIOS Flash Utilities
55
DOS Flash Utility
56
Winflash Utility
58
Miscellaneous Tools
60
Using Dmitools
60
Using the LAN MAC EEPROM Utility
61
HDD/BIOS Password
63
Unlocking the HDD
63
Clearing the Password Check and BIOS Password
65
Clearing BIOS Passwords
65
Crisis Utility SOP
66
Creating a USB Flash Crisis Disk
66
Using the Crisis Utility Disk
67
Chapter 3. Jumper and Connector Locations
70
Mainboard Top View
70
Mainboard Bottom View
71
USB Board View
72
Power Board View
73
CMOS Jumper
74
Chapter 4 . Troubleshooting
76
Troubleshooting
76
Power on Issues
77
No Display Issues
78
Abnormal Video
79
LCD Picture Failure
80
Internal Keyboard Failure
81
Touchpad Failure
82
Internal Speaker Failure
83
Internal Microphone Failure
85
USB Failure
86
Wireless Function Failure
87
Bluetooth Function Failure
88
4-In-1 Card Function Failure
89
Unit Thermal Failure
90
Cosmetic Failure
91
BIOS Problems
92
Other Functions Failure
92
General Information
76
Intermittent Problems
93
Undetermined Problems
93
Chapter 5. Service and Maintenance
96
Introduction
96
Recommended Equipment
96
Maintenance Flowchart
97
Getting Started
99
Battery Pack Removal
100
Battery Pack Installation
101
Dummy Card Removal
102
Dummy Card Installation
103
Base Door Removal
104
Base Door Installation
106
ODD Module Removal
108
ODD Module Installation
111
DIMM Module Removal
114
DIMM Module Installation
115
HDD Module Removal
116
HDD Module Installation
117
HDD Carrier Removal
118
HDD Carrier Installation
118
WLAN Module Removal
119
WLAN Module Installation
121
Palm Rest Removal
123
Palm Rest Installation
126
Upper Case Removal
129
Upper Case Installation
133
RTC Battery Removal
137
RTC Battery Installation
138
Mainboard Removal
139
Mainboard Installation
142
Thermal Module Removal
146
Thermal Module Installation
148
CPU Removal
150
CPU Installation
151
Speaker Removal
152
Speaker Installation
155
USB Module Removal
158
USB Module Installation
160
Power Board Removal
162
Power Board Installation
164
Keyboard Removal
166
Keyboard Installation
168
LCD Module Removal
171
LCD Module Installation
174
DC-In Cable Removal
178
DC-In Cable Installation
179
LCD Bezel Removal
180
LCD Bezel Installation
182
CCD Module Removal
185
CCD Module Installation
186
LCD Panel Removal
187
LCD Panel Installation
191
LCD Panel Bracket Removal
195
LCD Panel Bracket Installation
196
WLAN Antenna Removal
197
WLAN Antenna Installation
199
Microphone Module Removal
201
Microphone Module Installation
202
Chapter 6. FRU (Field Replaceable Unit) List
204
Exploded Diagram
205
Main Assembly
205
Lower Cover Assembly
207
Upper Cover Assembly
208
LCD Assembly
209
FRU List
211
Screw List
217
Chapter 7. Test Compatible Components
218
Microsoft® Windows® 7 Environment Test
218
Aspire V3-5510
219
Test Compatible Components
219
Microsoft Windows
219
Environment Test
219
Chapter 8. Online Support Information
229
Introduction
229
