FRU (Field Repla
ceable Unit) List
6-7
LCD Assembly

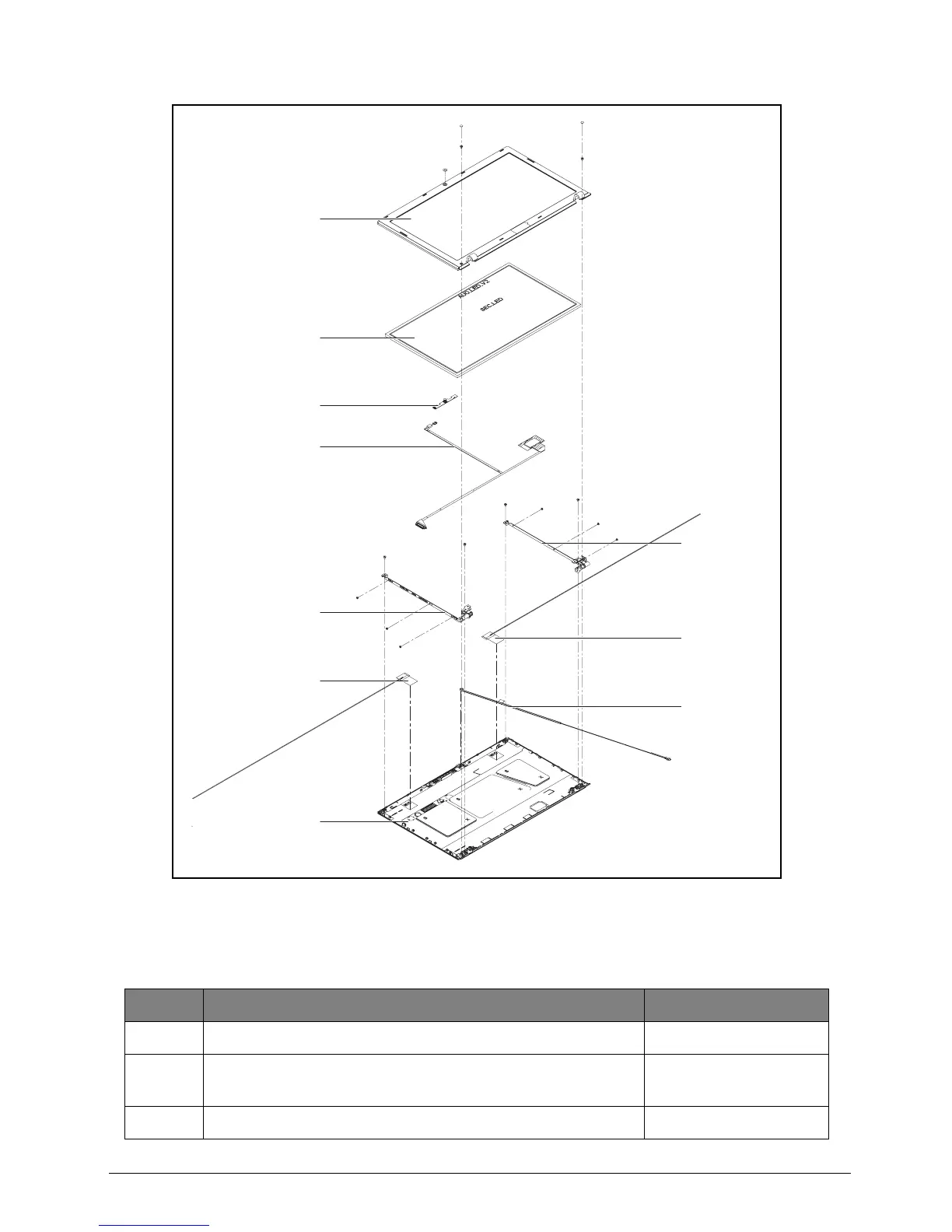

Figure 6:4. LCD Assembly Exploded Diag
ram
T
able 6:4. LCD Assembly Exploded Diagram
No.
Description
Acer P/N
1
LCD BEZEL W/ COMS MYLAR
60.M03N2.008
2
ASSY LED LCD MODULE 15
.6” WXGA GLARE
W/ ANTENNA X 2,
CCD 1.3M, BLACK
6M.M04N2.001
3
CAMERA 1.3M HD
57.M03N2.001
1
2
3
4
6
8
1
0
9
7
5
208
210
