Service and Maintenance
5-53
Thermal Module Removal
Prerequisite
:
Mainboard Removal
on p
age
5-46
1.
Disconnect the thermal module cabl
e from the mainboard connecto
r
.

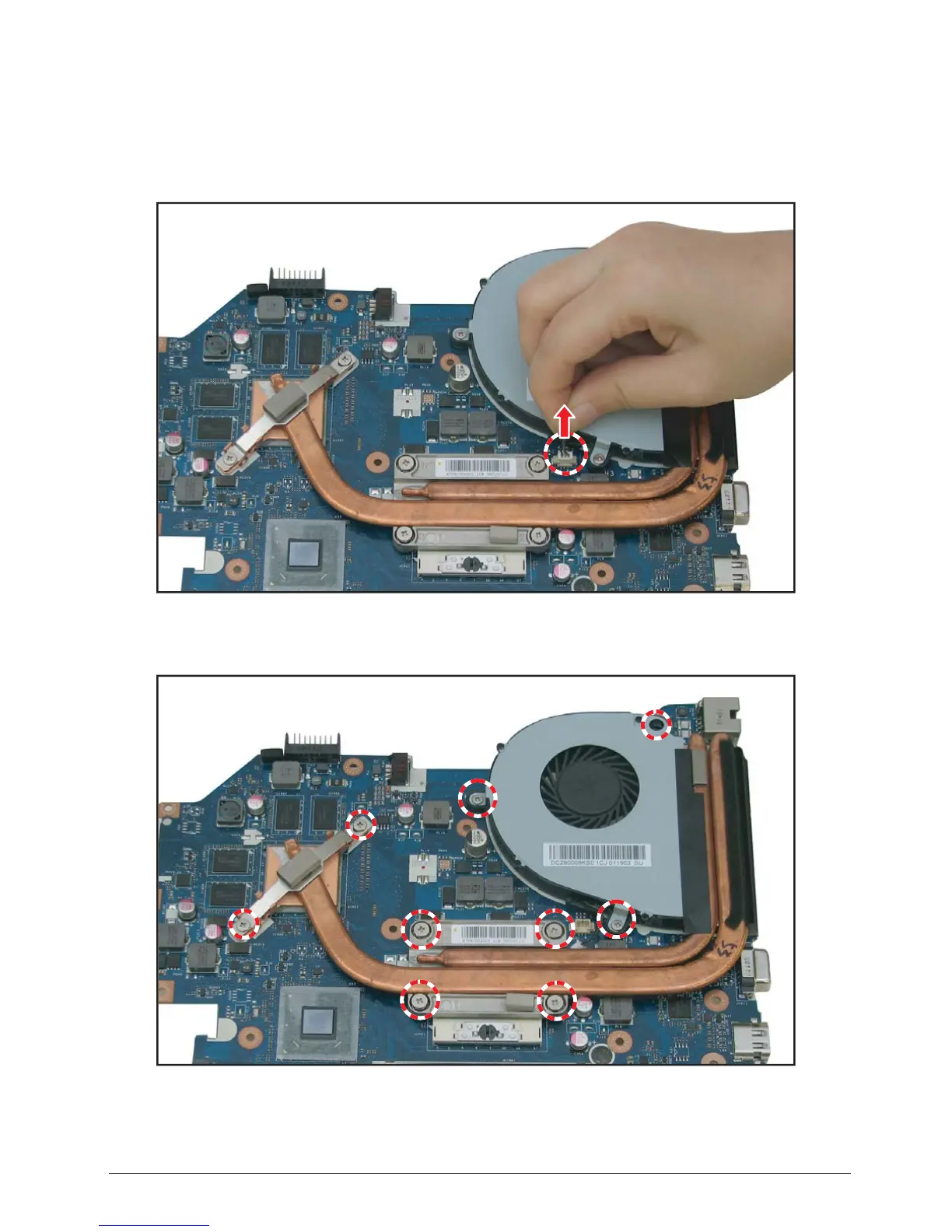

Figure 5:77. Disconnecting the Thermal Module Cable
2.
Remove nine (9) screws securing
the thermal module to the mainboard.
Figure 5:78. Remo
ving the Thermal Module Screws
145
147
