5-92
Service and Maintenance
CCD Module Removal
Prerequisite
:
LCD Bezel Re
moval
on p
age
5-87

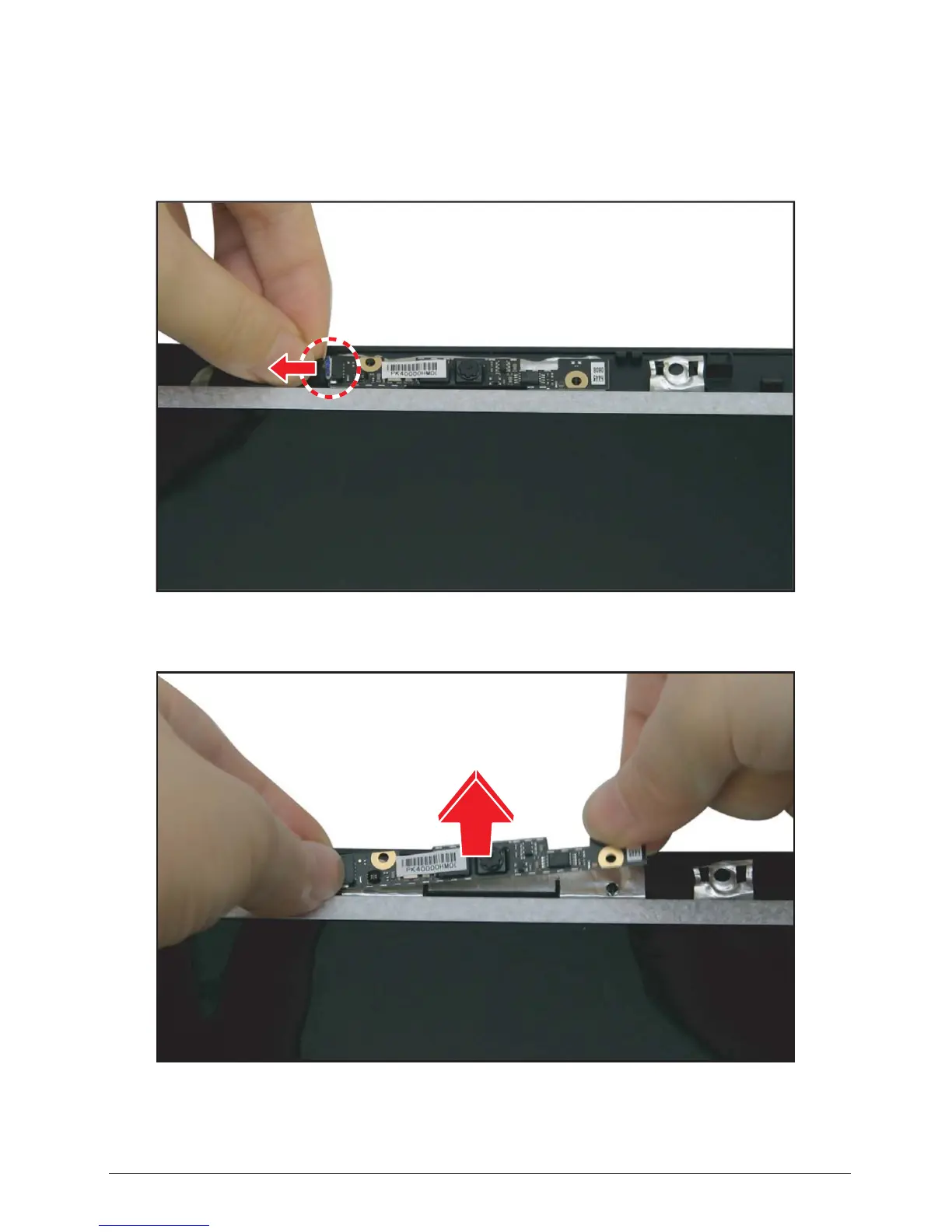

1.
Disconnect the camera cable connector
from the camera module.
Figure 5:139.
Removing
the Camera Module (1 of 2)
2.
Lift to remove th
e camera module.
Figure 5:140.
Removing
the Camera Module (2 of 2)
184
