Service and Maintenance
5-87
LCD Bezel Removal
Prerequisite
:
LCD Module Removal
on
page
5-78

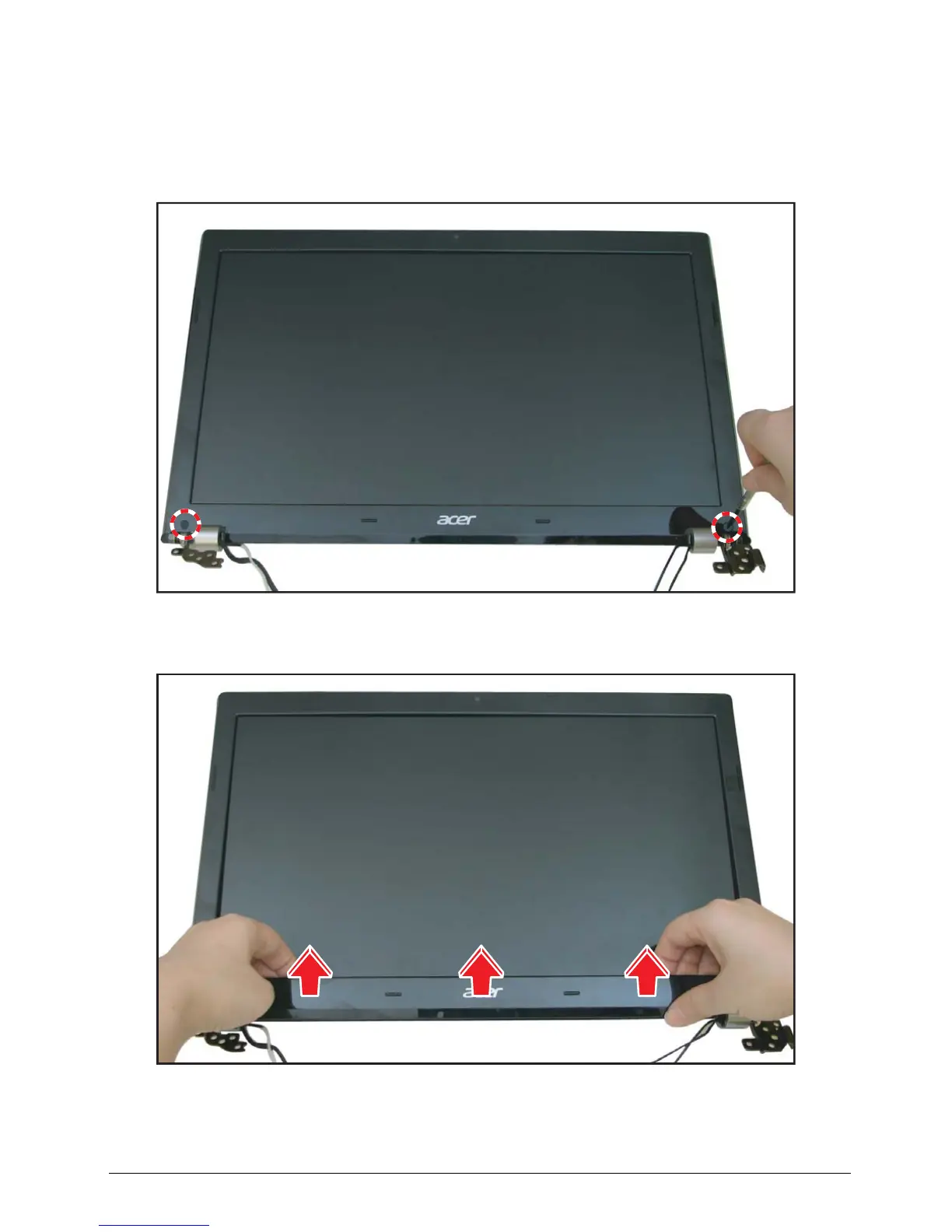

1.
Use a screwdriver to crush the mylar covers, and th
en remove the two (2) screws.
Figure 5:132. Removing the LCD Bezel (1 of 3)
2.
From the bottom side, pry inwards to release the
latches of the LCD bezel.
Figure 5:133. Removing the LCD Bezel (2 of 3)
