Acer Aspire V3-551G User Manual

Jumper and Connector Locations 3-5

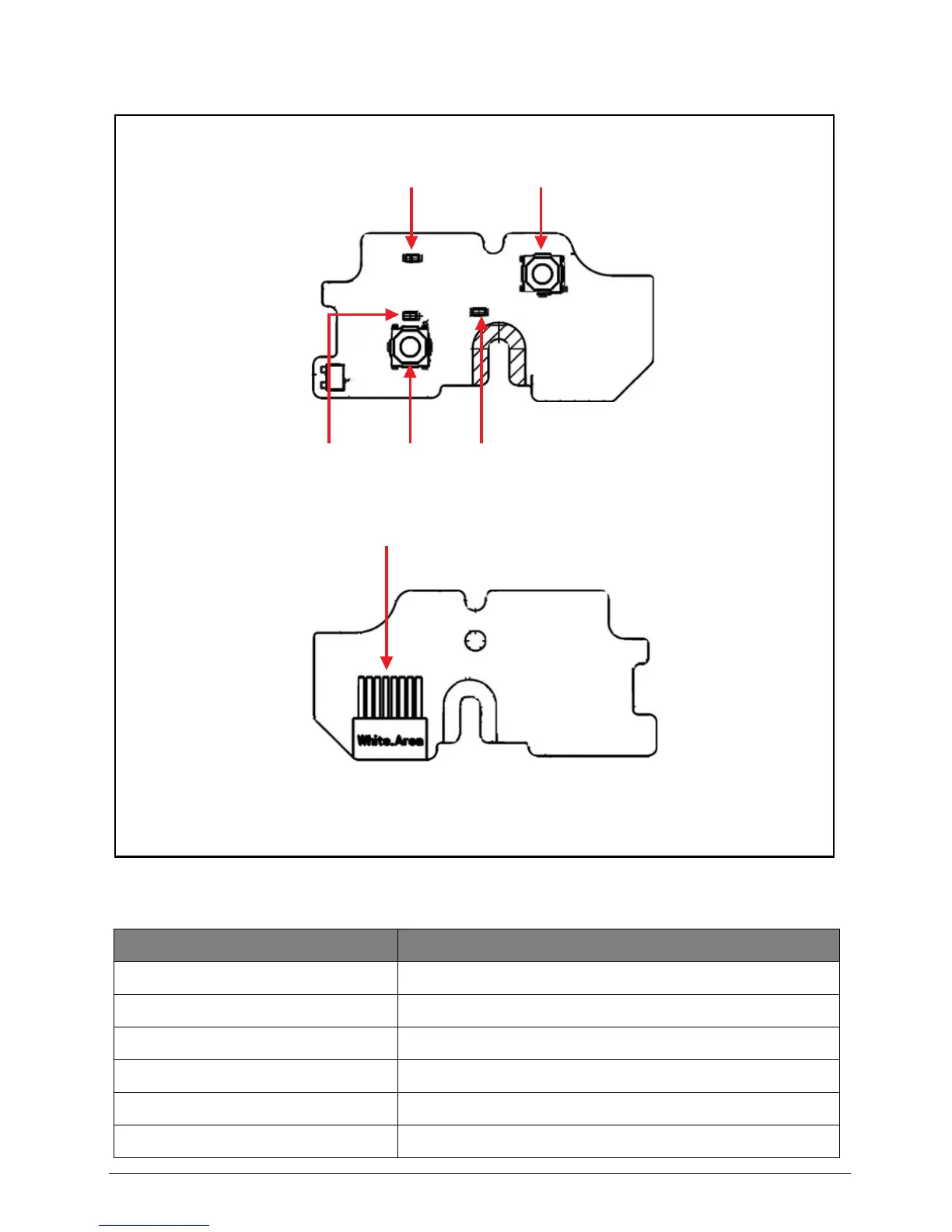

Power Board View
Figure 3:2. Power Board
Table 3:4. Power Board Jumper and Connectors
Item Description
LED1 Power LED (for XX-model)
LED2 Power LED (for XX-model)
LED3 Power LED (for XX-model)
SW1 Power Button Switch (for XX-model)
SW2 Power Button Switch (for XX-model)
JPWR1 Power FFC Connector
LED3SW1LED1
LED2 SW2
JPWR1
Top View
Bottom View
