Jumper and Connector Locations 3-2
Jumper and Connector Locations
Mainboard Top View

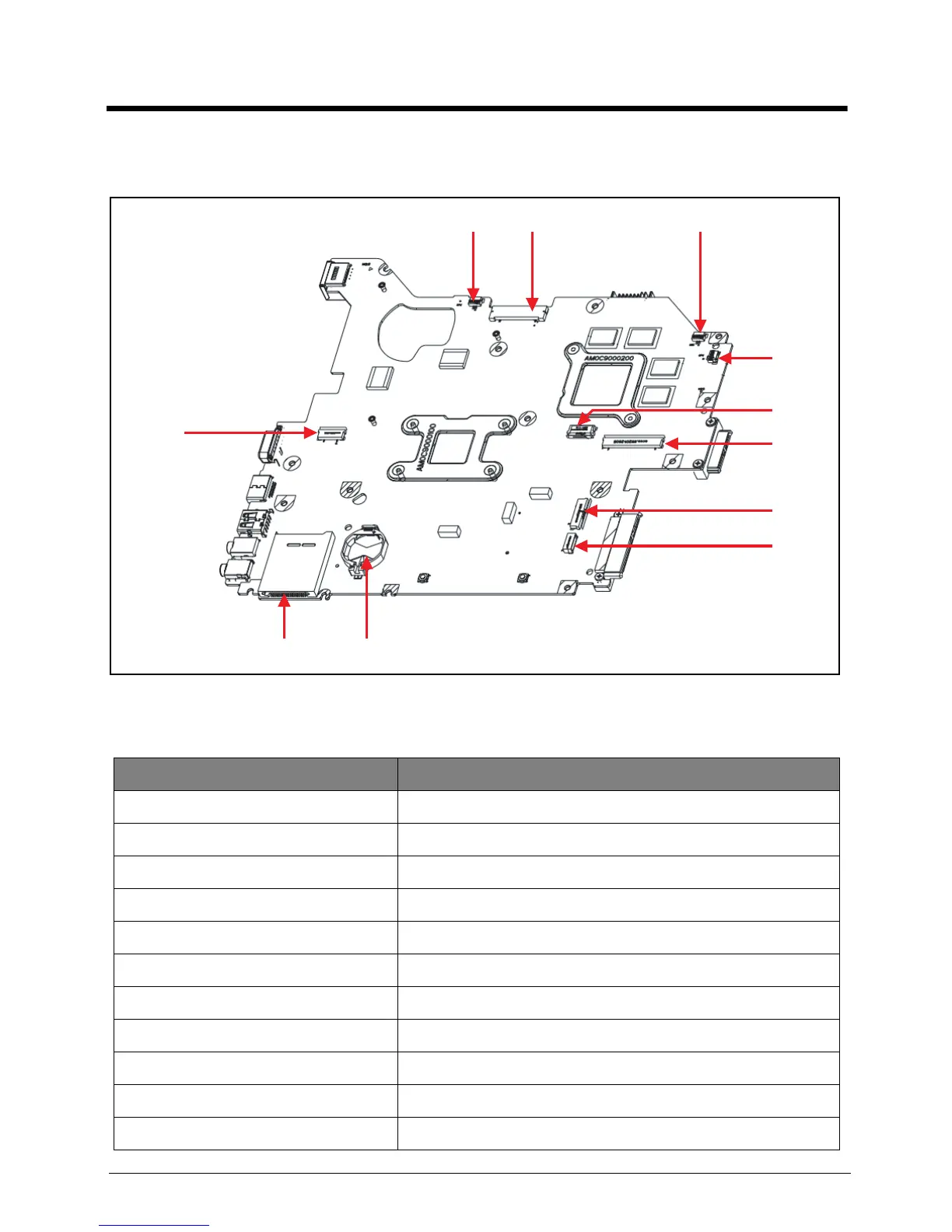

Figure 3:1. Mainboard Top
Table 3:1. Mainboard Top Jumper and Connectors
Item Description
JKB1 Internal Keyboard Connector
JLVDS1 15.6" LED LVDS / eDP Panel Connector
JPWR1 Power ON Button Board FFC Connector
JBT1 Bluetooth Module Connector
JTP1 Touch Pad FFC Connector
JUSB2 Right USB2.0 Output Port FFC Connector
JSPK1 Right Speaker Connector
JSPK2 Left Speaker Connector
JMIC2 Internal Microphone Jack
JREAD1 7IN1 Card Reader Connector
JBATT1 RTC Battery Socket
JBATT1JREAD1
JSPK2
JPWR1
JKB1
JTP1
JSPK1
JBT1
JUSB2
JLVDS1 JMIC2
