Publication 1769-UM009B-EN-P - May 2002
4-4 Configuring the DeviceNet Network
5. Configure the driver using the example above as a guide and
click on OK. The software will take a few seconds to configure

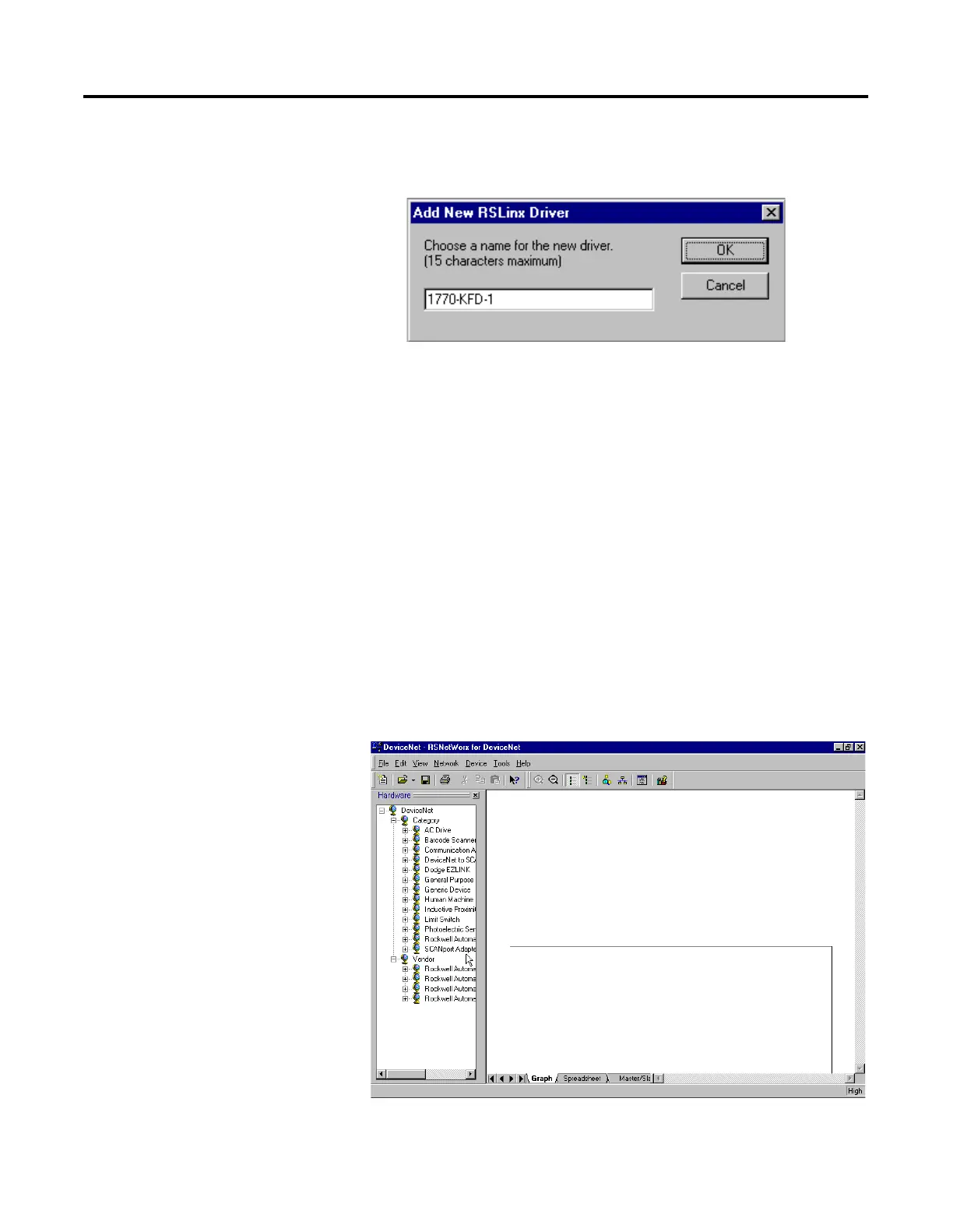

the driver. When it is done the following prompt will appear:
6. Click on OK to use the default driver name.
7. Minimize RSLinx.
You will use the driver you just configured to browse and configure
the network with RSNetWorx.
Using RSNetWorx to
Configure the 1769-SDN’s
Scanlist
This manual assumes a certain level of familiarity with RSNetWorx. For
detailed information on RSNetWorx for DeviceNet, please refer to your
software’s documentation.
Setting Up an Online Connection
Follow the procedure below to set up an online connection to the
DeviceNet network using the 1770-KFD driver.
1. Start RSNetWorx. The following screen will open.
