168 Rockwell Automation Publication 750-IN001P-EN-P - April 2017
Chapter 4 Power Wiring

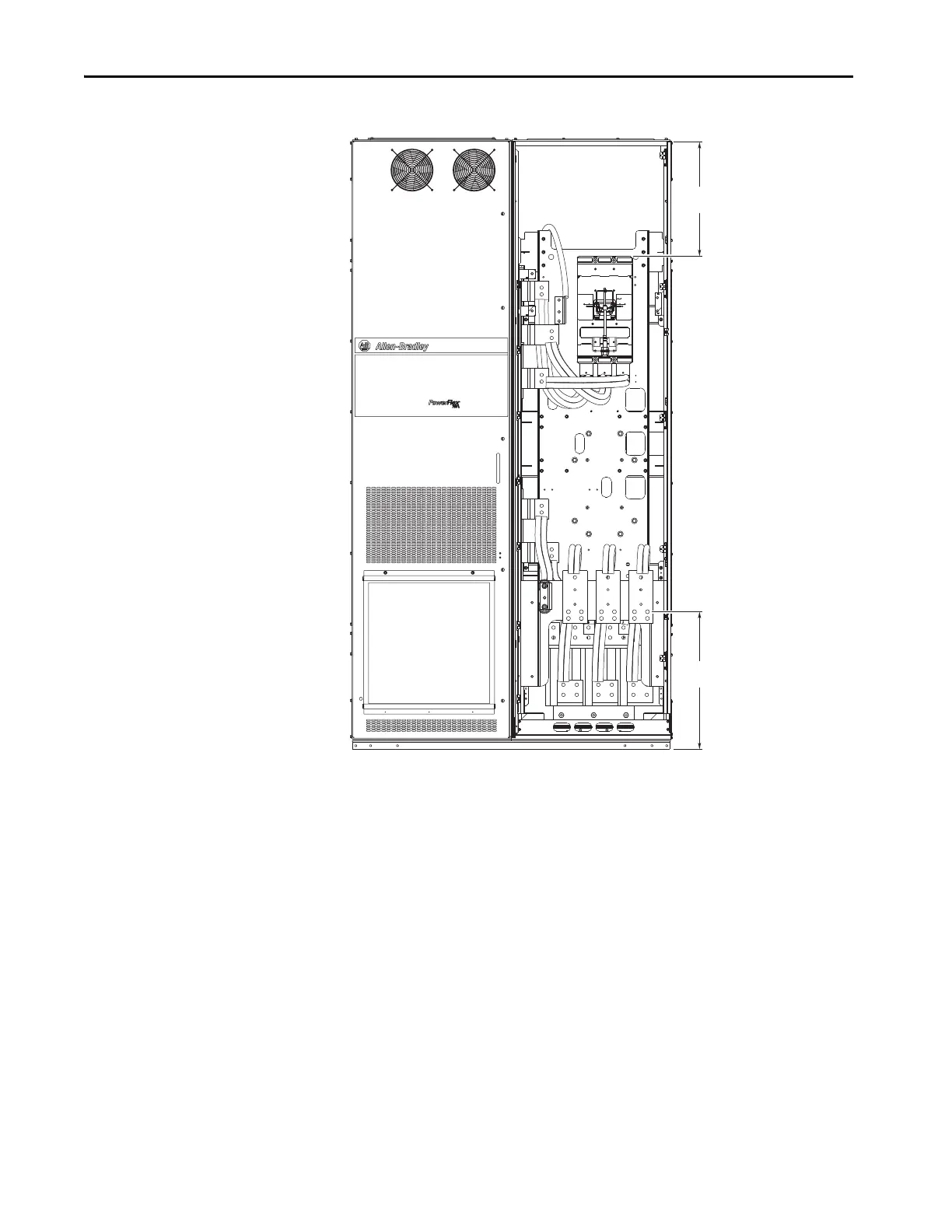

Figure 102 - Option P3 or P5 Disconnect Switch Wiring Clearance
452.6
(17.8)
500.8
(19.7)
