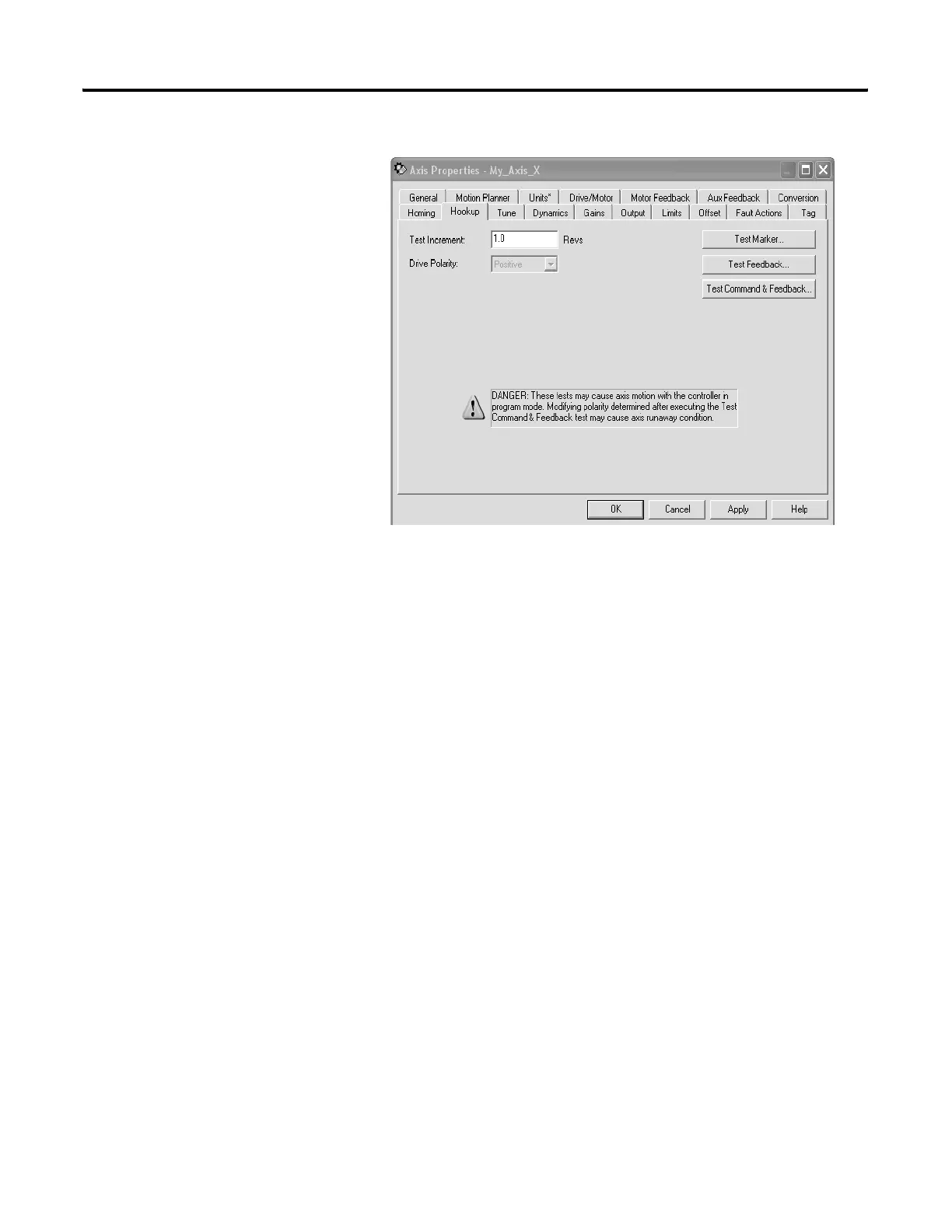

The Axis Properties Dialog appears.
2. Click the Hookup tab.
3. In the Test Increment box, type the number of revolutions you
want the axis to turn during each test.
4. Click Test Marker to check the channels for proper connection
and phasing.
5. Click Test Feedback to test the polarity of the feedback.
6. Click Test Command & Feedback to test the drive’s polarity.
7. Click OK.
Additional Resources
For additional information, consult the Logix5000 Motion Module User
Manual, publication 1756-UM006.
