Allen-Bradley controllogix 1756-L55M12 User Manual

Publication 1756-UM001G-EN-P - January 2007
Place, Configure, and Monitor I/O Modules 65
Reconfigure an I/O Module via a MSG Instruction
Use a MSG instruction of type Module Reconfigure to send new
configuration information to an I/O module. During the
reconfiguration:
• input modules continue to send input data to the controller.
• output modules continue to control their output devices.
To reconfigure an I/O module, perform this procedure.
1. Set the required member of the configuration tag of the module
to the new value.
2. Send a Module Reconfigure message to the module..

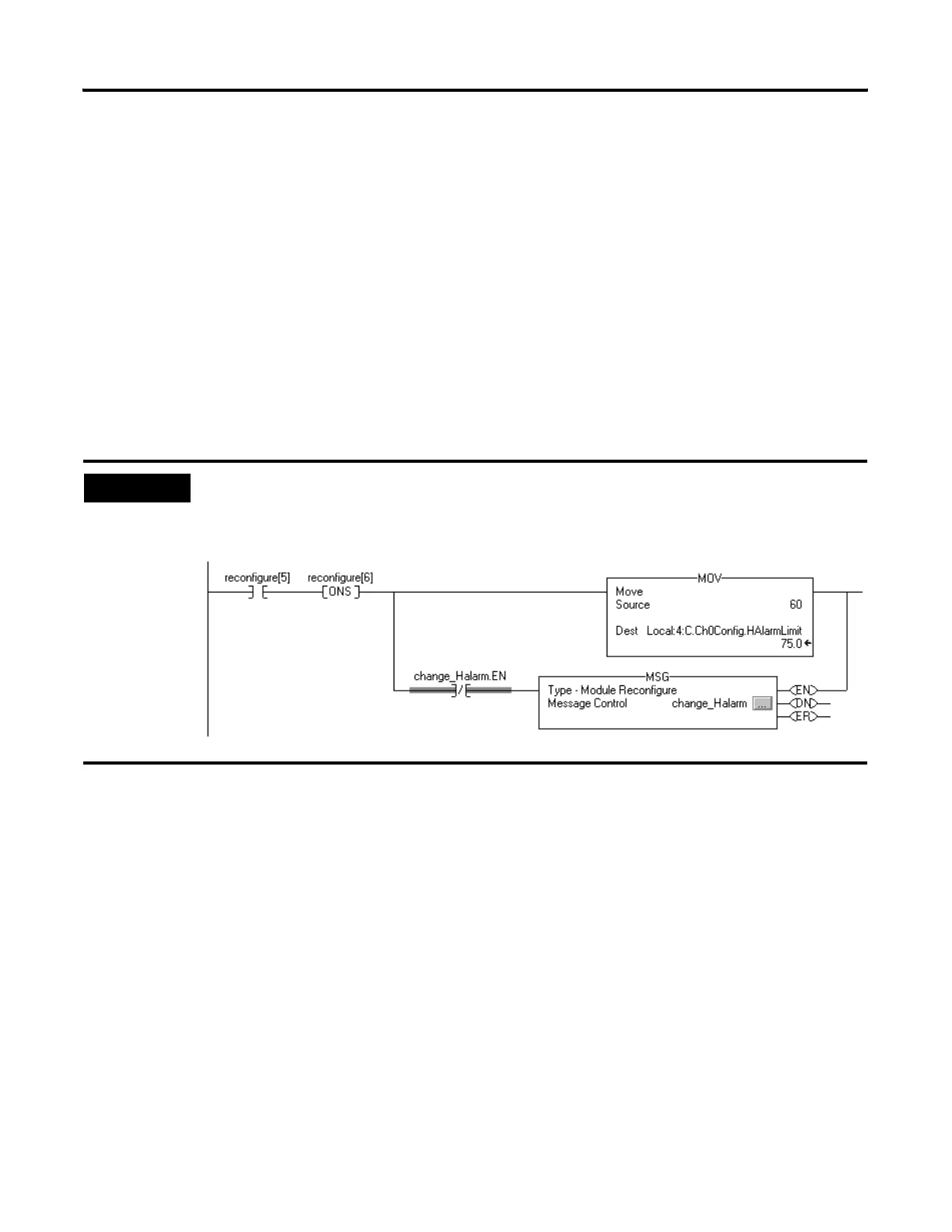

EXAMPLE
Reconfigure an I/O module
When reconfigure[5] is on, the MOV instruction sets the high alarm to 60 for the local module in slot 4. The Module
Reconfigure message then sends the new alarm value to the module. The ONS instruction prevents the rung from
sending multiple messages to the module while the reconfigure[5] is on.

Allen-Bradley controllogix 1756-L55M12 Specifications

General

Series	ControlLogix
Catalog Number	1756-L55M12
I/O Modules Supported	1756 I/O Modules
Backplane Current @ 5.1VDC	1.5 A
Relative Humidity	5 to 95% non-condensing
Product Type	Controller
Communication	EtherNet/IP, ControlNet, DeviceNet
Operating Temperature	0 to 60 °C
Storage Temperature	-40 to 85°C (-40 to 185°F)
Communication Ports	RS-232
Battery Life	5 years
Shock	30 g
Vibration	2G at 10…500 Hz
